TITICI GRAVEL BIKES - RELLI / RACING CARBON

TITICI GRAVEL BIKES - RELLI / RACING CARBON

TITICI RELLI는 혁신적인 체형을 가진 풀카본 레이싱 그래블 모델로 오프로드 레이싱 성능을 극한까지 실현하고자 디자인된 모델이다. 최고 수준의 속도, 안전성, 승차감 그리고 재미를 추구하기에 근본적인 그래블 프레임의 재해석이 필요했고 혁신적인 AAT (Arch Absorber Technology) system이 개발되어 적용되었다.

FEATURES

A.A.T. SYSTEM: 새로 개발된 AAT system (Arch Absorber Technology)은 시트 튜브 (seat tube) 하단이 특별한 아크 형상(arch shape)으로 디자인되어 버텀블라켓과 안장사이의 충격파를 감쇠하는 기능을 가진다.

P.A.T. TECHNOLOGY: 탑튜브에 적용된 특허등록된 P.A.T. technology은 일반적인 원형 탑튜브에 비해 최대 18%까지 진동감쇠를 하며 탑튜브의 뒤틀림 강성 (torsional rigidity)은 그대로 유지할 수 있다.

FRONT END DEVELOPED FORM VENTO: RELLI 프레임의 전방 디자인은 공기역학과 경량성을 결합한 디자인을 가진 TITICI의 VENTO 로드 레이싱 프레임을 바탕으로 디자인되어 오버사이즈 헤드튜브 (cross-section measures 1 1/2” instead of the traditional 1 1/8”)는 심한 험로에서도 안전성과 정밀한 조향성을 제공하며 internal cable routing 적용을 깔끔한 공기역학 디자인을 가진다.

TOTALLY NEW DESIGEND REAR END: 이전 F-GR02 모델과 달리 완전히 새롭게 디자인된 RELLI 후방 디자인은 보다 낮아진 시트스테이 (시트튜브가 탑튜브보다 30mm 밑에 결합되는 구조)로 진흙길에서의 보다 나은 안전성과 높은 반응성을 제공한다. 리어 트라이앵글과 포크는 700x42c까지 광폭 타이어 장착이 가능하며 진흙이 끼는 성가심을 방지해준다.

FRAMESET SPECIFICATIONS

• APPLICATION: Gravel Competition
• FRAME: Blend of multilayer carbon fibres (3K, 6K, T700, M30, Unidirectional)
• FORK: TITICI Gravel DCR
• ROUTING: Internal
• SIZE: S, M, L, XL, Custom
• FRAME WEIGHT: 1,100 grams (size M, painted with hardware)
• HEADSET: Integrated 1.5"
• BB TYPE: Press Fit 386
• BRAKE MOUNT: FLAT MOUNT
• FRONT AXLE: 12X100mm
• REAR AXLE: 12X142mm
• SEATPOST DIAMETER: 27.2mm
• CLAMP: Carbon Ti Custom
• MAXIMUM TIRE SIZE: 700X45 / 650X50
• DRIVETRAIN COMPATIBILITY: Di2, eTap, AXS, EPS or Mechanic
• NOTE: Mono chainring only

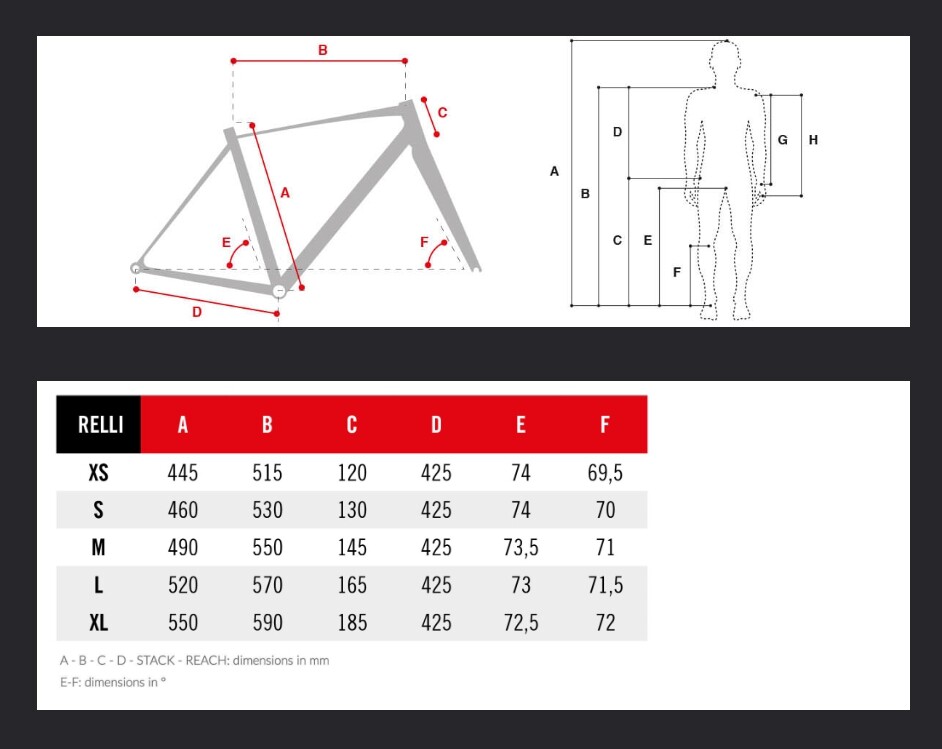

GEOMETRY

COMPONENT OPTIONS

[SRAM RIVAL AXS]

• STEM: Deda Elementi Superbox
• HANDLEBAR: Deda Elementi Gravel 100
• SEAPOST: Deda Elementi ZERO 100
• WHEELSET: Fulcrum Rapid Red 500
• GROUPSET: Sram Rival XPLR eTap AXS
• SHIFTER: Sram Rival eTap AXS HRD
• FRONT DERAILLEUR: NA
• REAR DERAILLEUR: Sram Rival XPLR eTap AXS
• CRANKSET: Sram Rival XPLR eTap AXS
• CHAIN: Sram Rival D1 12 speed
• CASSETTE: Sram Rival XPLR XG-1271, 10-44 12v
• DISC BRAKE: Sram Centerline 160/160mm
• SADDLE: Selle Italia Novus Evo Boost
• TIRE: Vittoria Terreno Dry 700×38
• GRIP: Deda Elementi Presa

[SRAM RIVAL AXS CLASSIFIED]

• STEM: Deda Elementi Superbox
• HANDLEBAR: Deda Elementi Gravel 100
• SEAPOST: Deda Elementi ZERO 100
• WHEELSET: Classified Gravel 3.0 Carbon
• GROUPSET: Sram Rival XPLR eTap AXS
• SHIFTER: Sram Rival eTap AXS HRD
• FRONT DERAILLEUR: NA
• REAR DERAILLEUR: Sram Rival XPLR eTap AXS
• CRANKSET: Sram Rival XPLR eTap AXS
• CHAIN: Sram Rival D1 12 speed
• CASSETTE: Classified 11-34 12v
• DISC BRAKE: Sram Centerline 160/160mm
• SADDLE: Selle Italia Novus Evo Boost
• TIRE: Vittoria Terreno Dry 700×38
• GRIP: Deda Elementi Presa

보증 기간: 5년(구입후 15일 이내 상품등록) / 3년(구입후 15일 이내 상품등록안한 경우)

원산지: 100% HANDMADE IN ITALY

TITICI GRAVEL BIKES - RELLI / RACING CARBON

A racing soul in a revolutionary body shape. TITICI presents RELLI, the new full-carbon gravel bike designed to push the boundaries of offroad cycling performance. The pursuit of maximum speed, stability, comfort and riding fun has led to a radical reinterpretation of the gravel frame withthe development of the innovative AAT (Arch Absorber Technology) system.

FEATURES

P.A.T. TECHNOLOGY: Top tube featuring patented P.A.T. technology. Cuts vibrations by up to 18% more than a standard tube, without compromising on torsional rigidity.

A.A.T. SYSTEM: Through the new AAT system (Arch Absorber Technology) the seat tube has been redesigned with a special arch shape that has the function of dampening shock impulses between the two nodes of the bottom bracket and thesaddle.

FRONT END DEVELOPED FORM VENTO: RELLI’s front end was developed from VENTO, the road frame designed to combine aerodynamics and lightness. The oversized head tube (cross-section measures 1 1/2” instead of the traditional 1 1/8”) provides stability and steering precision, even on the most demanding sections, and allows internal cable routing for a clean and aerodynamic design.

TOTALLY NEW DESIGEND REAR END: Compared to the F-GR02, the RELLI’s rear end has also been completely redesigned. Lowered seat stays (the junction with the seat tube is 30 millimetres lower than the top tube) provide greater stability on dirt roads and high responsiveness. The rear triangle and the fork are designed to accommodate wide tyres, up to 700x42c, without annoying mud accumulation.

FRAMESET SPECIFICATIONS

• APPLICATION: Gravel Competition
• FRAME: Blend of multilayer carbon fibres (3K, 6K, T700, M30, Unidirectional)
• FORK: TITICI Gravel DCR
• ROUTING: Internal
• SIZE: S, M, L, XL, Custom
• FRAME WEIGHT: 1,100 grams (size M, painted with hardware)
• HEADSET: Integrated 1.5"
• BB TYPE: Press Fit 386
• BRAKE MOUNT: FLAT MOUNT
• FRONT AXLE: 12X100mm
• REAR AXLE: 12X142mm
• SEATPOST DIAMETER: 27.2mm
• CLAMP: Carbon Ti Custom
• MAXIMUM TIRE SIZE: 700X45 / 650X50
• DRIVETRAIN COMPATIBILITY: Di2, eTap, AXS, EPS or Mechanic
• NOTE: Mono chainring only

GEOMETRY

COMPONENT OPTIONS

[SRAM RIVAL AXS]

• STEM: Deda Elementi Superbox
• HANDLEBAR: Deda Elementi Gravel 100
• SEAPOST: Deda Elementi ZERO 100
• WHEELSET: Fulcrum Rapid Red 500
• GROUPSET: Sram Rival XPLR eTap AXS
• SHIFTER: Sram Rival eTap AXS HRD
• FRONT DERAILLEUR: NA
• REAR DERAILLEUR: Sram Rival XPLR eTap AXS
• CRANKSET: Sram Rival XPLR eTap AXS
• CHAIN: Sram Rival D1 12 speed
• CASSETTE: Sram Rival XPLR XG-1271, 10-44 12v
• DISC BRAKE: Sram Centerline 160/160mm
• SADDLE: Selle Italia Novus Evo Boost
• TIRE: Vittoria Terreno Dry 700×38
• GRIP: Deda Elementi Presa

[SRAM RIVAL AXS CLASSIFIED]

• STEM: Deda Elementi Superbox
• HANDLEBAR: Deda Elementi Gravel 100
• SEAPOST: Deda Elementi ZERO 100
• WHEELSET: Classified Gravel 3.0 Carbon
• GROUPSET: Sram Rival XPLR eTap AXS
• SHIFTER: Sram Rival eTap AXS HRD
• FRONT DERAILLEUR: NA
• REAR DERAILLEUR: Sram Rival XPLR eTap AXS
• CRANKSET: Sram Rival XPLR eTap AXS
• CHAIN: Sram Rival D1 12 speed
• CASSETTE: Classified 11-34 12v
• DISC BRAKE: Sram Centerline 160/160mm
• SADDLE: Selle Italia Novus Evo Boost
• TIRE: Vittoria Terreno Dry 700×38
• GRIP: Deda Elementi Presa

TITICI WARRANTY CONDITIONS

Trere Innovation Srl Unipersonale guarantees its frames, if purchased from authorised dealers, for a duration of 5 years from the date of purchase if, within fifteen days, this is registered on the website www. titici/guarantee. If the frame is not registered within 15 days from the date of purchase, the warranty period is 3 years.

100% HANDMADE IN ITALY
