TITICI GRAVEL BIKES - ALL IN-AND / ANODIZED DEDACCIAI ALLOY

TITICI ALL-IN AND 모델은 ALL-IN 알루미늄 프레임에 강력한 아노다이징 처리와 실버 이온을 표면에 적용하여 새로운 특성을 지닌 프레임으로 탄생시킨 모델이다. 이러한 깊이있는 표면 변화는 양극 산화물 (anodic oxide)과 실버 금속의 독특한 결합으로 이루어질 수 있었으며 완전히 새로운 금속이 탄생하는 수준이라고 할 수 있다.

FEATURES

ULTRA-RESISTANT ANODIZING TREATMENT AND SILVER IONS: 아노다이징이라는 전해질 과정(electrolytic process of anodizing)은 알루미늄에 보호 산화층 (protective oxide layer)을 형성시키는데 실버 이온 (Silver ions)은 산화물의 미세한 많은 구멍 (microporosity of the oxide)을 막아줌으로써 독특한 성질의 프레임 표면을 제공해준다. 이러한 특별한 표면 처리는 진흙이 쉽게 표면에 부착되지 않게 하여 보다 쉬운 유지관리를 제공하며 스크랫치와 마찰에 대한 탁월한 저항성을 지녀 거의 무한대의 내구성을 보장한다.

DEDACCIAI ALUMINIUM TUBING CUSTOMIZED FOR TITICI: 최고 품질의 알루미늄 튜브를 생산하는 이태리 Dedacciai와의 협업을 통해 제작되는 ALL-IN 프레임으로 TITICI 엔지니어들의 디자인에 의거하여 독점적인 형태를 지닌 튜빙으로 제작된다. 탑튜브의 납작한 부위, 리어 트라이앵글의 독특한 지오메트리, 그리고 오버사이즈 헤드튜브는 높은 안전성과 강도를 제공해준다. 수제 용접, 카본 포크, 그리고 바이크패킹 성향은 새로운 미지의 지역을 탐험할 수 있는 모델임을 보여준다.

CABLES DISAPPEAR, RIDE STABILITY INCREASES: 온오프라인 자전거 라이딩 행동을 연구를 바탕으로 TITICI는 오버사이즈 헤드튜브를 도입하기로 하여 1 1/8"대신 1/ 1/2"를 헤드튜브 상하단에 동일하게 적용하였다. 이로 인해 향상된 전방 안전성과 현대적인 깔끔한 디자인을 제공하는 internal cable routing이 가능해졌다. 따라서, ALL-IN 모델은 탁월한 라이딩 승차감과 함께 매력적인 스타일링 또한 충족하는 모델로 탄생하였다.

NEW GEOMETRIES: 30MM MAKE THE DIFFERENCE: 디테일에 대한 집중이 차이를 만들기에 전모델인 A-GR01과 달리 리어 트라이앵글은 완전히 새롭게 디자인하였다. 시트 스테이가 탑튜브보다 30mm 낮게 시트튜브와 연결되도록 디자인하여 향상된 리어엔드 강성 (stiffness)을 가지게 되어 더 자신감있고 반응적인 라이딩 감각을 제공하게 된다. 체인 스테이의 비대칭 디자인이 도입하여 왼쪽 체인 스테이가 160도 엘보우 형태를 지녀 브레이킹시 탁월한 지지력을 제공한다.

CHANGE THE SET-UP ACCORDING TO YOUR RIDING STYLE: ALL-IN 모델은 당신의 라이딩 스타일과 필요에 적응하도록 디자인되어 장착 가능한 타이어경우  700c x 44 또는 650b x 48까지 지원하여 매우 거친 혐로에서도 자신감있게 공략할 수 있도록 하였다. ALL-IN 바이크는 펄크럼 휠셋과 데다 부품으로 완성되어 제공된다.

FRAMESET SPECIFICATIONS

• APPLICATION: Gravel All-Round
• FRAME: Dedecciai Alloy
• FORK: TITICI Gravel DCR
• ROUTING: Internal
• SIZE OPTIONS: S, M, L, XL
• FRAME WEIGHT: 1,690G (M Size Painted with harware
• HEADSET: 1.5" Integrated
• BB TYPE: BSA
• BRAKE MOUNT: FLAT MOUNT
• FRONT AXLE: 12X100mm
• REAR AXLE: 12X142mm
• SEATPOST DIAMETER: 31.6mm
• CLAMP: Carbon Ti Custom
• MAXIMUM TIRE SIZE: 700X45 / 650X50
• DRIVETRAIN COMPATIBILITY: Di2, eTap, AXS, EPS or Mechanic

GEOMETRY

COMPONENT OPTIONS

[SRAM APEX]

• STEM: Deda Elementi Superbox
• HANDLEBAR: Deda Elementi Gravel 100
• SEAPOST: Deda Elementi ZERO 31.6 - 18 mm setback
• WHEELSET: Fulcrum Rapid Red 900
• GROUPSET: Sram Apex
• SHIFTER: Sram APEX1 11V Flat
• FRONT DERAILLEUR: NA
• REAR DERAILLEUR: Sram APEX 1 1X11 V
• CRANKSET: Sram APEX-1 GXP BLK 42T
• CHAIN: Sram PC 1110 11V
• CASSETTE: Sram PG-1130 11-42 11v
• DISC BRAKE: Sram Centerline 160/160mm
• SADDLE: Selle Italia Model X
• TIRE: Vittoria Terreno Dry 700×38
• GRIP: Deda Elementi Tape

[SHIMANO GRX]

• STEM: Deda Elementi Superbox
• HANDLEBAR: Deda Elementi Gravel 100
• SEAPOST: Deda Elementi ZERO 31.6 - 18 mm setback
• WHEELSET: Fulcrum Rapid Red 900
• GROUPSET: Shimano GRX600
• SHIFTER: Shimano GRX ST-RX600 + BR-RX400
• FRONT DERAILLEUR: Shimano FD-RX810
• REAR DERAILLEUR: Shimano 2x11v RD-RX810 34T
• CRANKSET: Shimano FC-RX600 46/30D
• CHAIN: Shimano CN-HG601
• CASSETTE: Shimano 11-34 CS-HG700
• DISC BRAKE: Shimano SM-RT70 Ice-Tech 160/160
• SADDLE: Selle Italia Model X
• TIRE: Vittoria Terreno Dry 700×38
• GRIP: Deda Elementi Tape

[SRAM RIVAL AXS]

• STEM: Deda Elementi Superbox
• HANDLEBAR: Deda Elementi Gravel 100
• SEAPOST: Deda Elementi ZERO 31.6 - 18 mm setback
• WHEELSET: Fulcrum Rapid Red 500
• GROUPSET: Sram Rival XPLR eTap AXS
• SHIFTER: Sram Rival eTap AXS HRD
• FRONT DERAILLEUR: NA
• REAR DERAILLEUR: Sram Rival XPLR eTap AXS
• CRANKSET: Sram Rival XPLR eTap AXS
• CHAIN: Sram Rival D1 12 speed
• CASSETTE: Sram Rival XPLR XG-1271,10-44 12v
• DISC BRAKE: Sram Centerline 160/160mm
• SADDLE: Selle Italia Model X
• TIRE: Vittoria Terreno Dry 700×38
• GRIP: Deda Elementi Tape

[SRAM RIVAL AXS CLASSIFIED]

• STEM: Deda Elementi Superbox
• HANDLEBAR: Deda Elementi Gravel 100
• SEAPOST: Deda Elementi ZERO 31.6 - 18 mm setback
• WHEELSET: Classified Gravel 3.0 Carbon
• GROUPSET: Sram Rival XPLR eTap AXS
• SHIFTER: Sram Rival eTap AXS HRD
• FRONT DERAILLEUR: NA
• REAR DERAILLEUR: Sram Rival XPLR eTap AXS
• CRANKSET: Sram Rival XPLR eTap AXS
• CHAIN: Sram Rival D1 12 speed
• CASSETTE: Classified 11-34 12v
• DISC BRAKE: Sram Centerline 160/160mm
• SADDLE: Selle Italia Model X
• TIRE: Vittoria Terreno Dry 700×38
• GRIP: Deda Elementi Tape

보증 기간: 5년(구입후 15일 이내 상품등록) / 3년(구입후 15일 이내 상품등록안한 경우)

원산지: 100% HANDMADE IN ITALY

TITICI GRAVEL BIKES - ALL IN-AND / ARNODIZED DEDACCIAI ALLOY

TITICI presents the new ALL-IN AND: the new gravel frame featuring ultra-resistant anodizing treatment and silver ions. The aluminium frame undergoes a profound surface transformation using the unique combination of anodic oxide and noble metal Silver. As a result, a brand new material is created.

FEATURES

ULTRA-RESISTANT ANODIZING TREATMENT AND SILVER IONS: The electrolytic process of anodizing causes an accelerated growth of the protective oxide layer on the aluminium. Silver ions seal the microporosity of the oxide, giving the surface of the frame unique properties. This special treatment gives easier maintenance as dirt cannot stick to the surface, which quick and easy cleaning the frame after a muddy or dusty ride and better durability of extraordinary resistance to scratches, abrasion and wear, guaranteeing almost infinite durability.

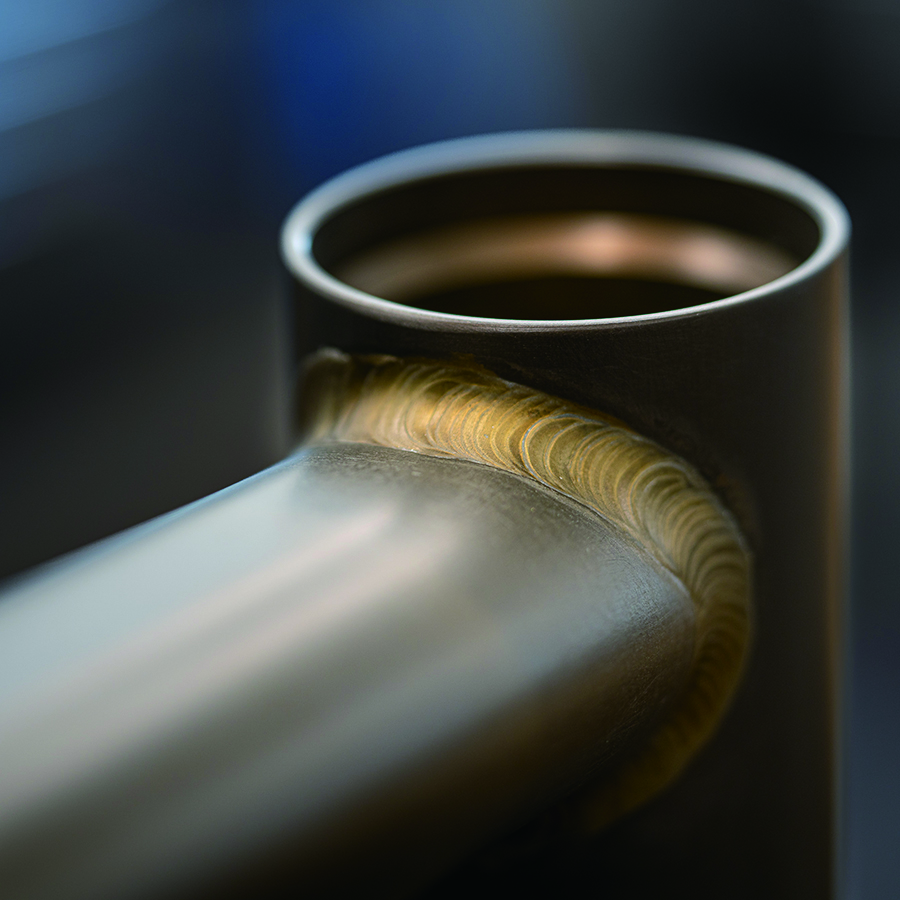

DEDACCIAI ALUMINIUM TUBING CUSTOMIZED FOR TITICI: ALL-IN is the result of the collaboration with Dedacciai, a leading Italian company that produced the high quality aluminium tubes with exclusive shapes, according to the design of the TITICI engineers. The flattened section of the top tube, the unique geometries of the rear triangle and the oversized head tube contribute to the high stability and strength of the frame. The handmade welds, the carbon fork and the bikepacking predisposition complete a model that is ready to explore new terrain.

CABLES DISAPPEAR, RIDE STABILITY INCREASES: After studying the bike’s behaviour both on and off the road, TITICI introduced an oversized head tube. The top and bottom sections both have a diameter of 1 1/2″, instead of the standard 1 1/8″ top section. The advantage is twofold: greater front-hand stability and the possibility of internal cable routing providing a modern, clean design. ALL-IN does not fail to live up to expectations: attractive styling goes hand in hand with extraordinary riding comfort.

NEW GEOMETRIES: 30MM MAKE THE DIFFERENCE: It’s the attention to detail that makes the difference. The rear triangle of the ALL-IN frame has been completely redesigned compared to the previous aluminium gravel model A-GR01. The seat stays connect to the seat tube 30 millimetres lower than the top tube: this solution results in greater rear end stiffness, which translates into a more confident and reactive ride. The asymmetrical design, with the left stay featuring a distinctive 160° “elbow”, provides superior resistance when braking.

CHANGE THE SET-UP ACCORDING TO YOUR RIDING STYLE: With ALL-IN, it’s the bike that adapts to your riding style and needs – not the other way around. The frame has clearance for up to 700c x 44 or 650b x 48 tyres, to tackle even the most demanding of trails with full confidence. ALL-IN is available with Fulcrum wheels and Deda components.

FRAMESET SPECIFICATIONS

• APPLICATION: Gravel All-Round
• FRAME: Dedecciai Alloy
• FORK: TITICI Gravel DCR
• ROUTING: Internal
• SIZE OPTIONS: S, M, L, XL
• FRAME WEIGHT: 1,690G (M Size Painted with harware
• HEADSET: 1.5" Integrated
• BB TYPE: BSA
• BRAKE MOUNT: FLAT MOUNT
• FRONT AXLE: 12X100mm
• REAR AXLE: 12X142mm
• SEATPOST DIAMETER: 31.6mm
• CLAMP: Carbon Ti Custom
• MAXIMUM TIRE SIZE: 700X45 / 650X50
• DRIVETRAIN COMPATIBILITY: Di2, eTap, AXS, EPS or Mechanic

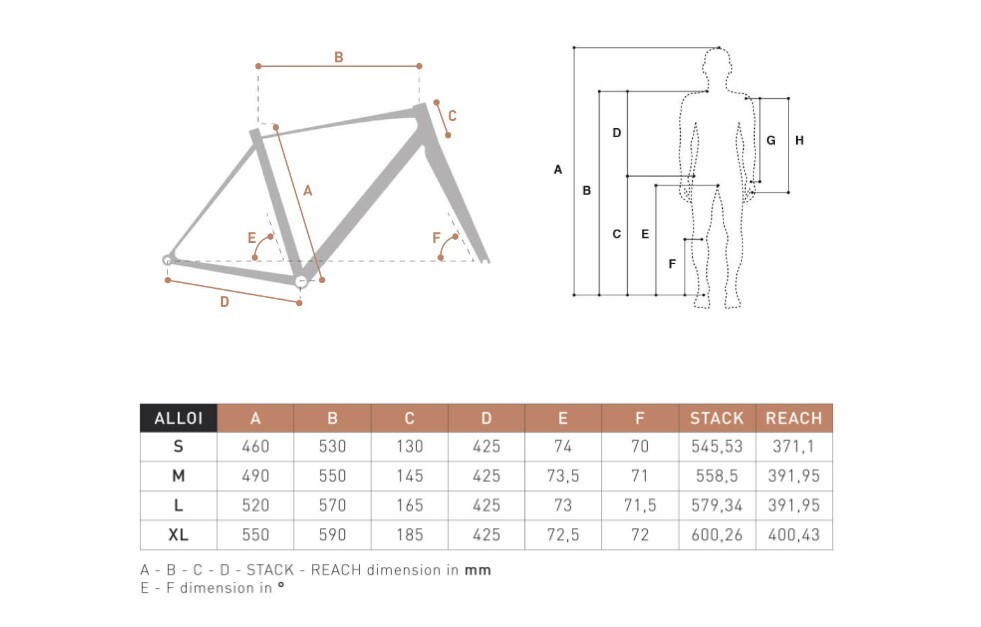

GEOMETRY

COMPONENT OPTIONS

[SRAM APEX]

• STEM: Deda Elementi Superbox
• HANDLEBAR: Deda Elementi Gravel 100
• SEAPOST: Deda Elementi ZERO 31.6 - 18 mm setback
• WHEELSET: Fulcrum Rapid Red 900
• GROUPSET: Sram Apex
• SHIFTER: Sram APEX1 11V Flat
• FRONT DERAILLEUR: NA
• REAR DERAILLEUR: Sram APEX 1 1X11 V
• CRANKSET: Sram APEX-1 GXP BLK 42T
• CHAIN: Sram PC 1110 11V
• CASSETTE: Sram PG-1130 11-42 11v
• DISC BRAKE: Sram Centerline 160/160mm
• SADDLE: Selle Italia Model X
• TIRE: Vittoria Terreno Dry 700×38
• GRIP: Deda Elementi Tape

[SHIMANO GRX]

• STEM: Deda Elementi Superbox
• HANDLEBAR: Deda Elementi Gravel 100
• SEAPOST: Deda Elementi ZERO 31.6 - 18 mm setback
• WHEELSET: Fulcrum Rapid Red 900
• GROUPSET: Shimano GRX600
• SHIFTER: Shimano GRX ST-RX600 + BR-RX400
• FRONT DERAILLEUR: Shimano FD-RX810
• REAR DERAILLEUR: Shimano 2x11v RD-RX810 34T
• CRANKSET: Shimano FC-RX600 46/30D
• CHAIN: Shimano CN-HG601
• CASSETTE: Shimano 11-34 CS-HG700
• DISC BRAKE: Shimano SM-RT70 Ice-Tech 160/160
• SADDLE: Selle Italia Model X
• TIRE: Vittoria Terreno Dry 700×38
• GRIP: Deda Elementi Tape

[SRAM RIVAL AXS]

• STEM: Deda Elementi Superbox
• HANDLEBAR: Deda Elementi Gravel 100
• SEAPOST: Deda Elementi ZERO 31.6 - 18 mm setback
• WHEELSET: Fulcrum Rapid Red 500
• GROUPSET: Sram Rival XPLR eTap AXS
• SHIFTER: Sram Rival eTap AXS HRD
• FRONT DERAILLEUR: NA
• REAR DERAILLEUR: Sram Rival XPLR eTap AXS
• CRANKSET: Sram Rival XPLR eTap AXS
• CHAIN: Sram Rival D1 12 speed
• CASSETTE: Sram Rival XPLR XG-1271,10-44 12v
• DISC BRAKE: Sram Centerline 160/160mm
• SADDLE: Selle Italia Model X
• TIRE: Vittoria Terreno Dry 700×38
• GRIP: Deda Elementi Tape

[SRAM RIVAL AXS CLASSIFIED]

• STEM: Deda Elementi Superbox
• HANDLEBAR: Deda Elementi Gravel 100
• SEAPOST: Deda Elementi ZERO 31.6 - 18 mm setback
• WHEELSET: Classified Gravel 3.0 Carbon
• GROUPSET: Sram Rival XPLR eTap AXS
• SHIFTER: Sram Rival eTap AXS HRD
• FRONT DERAILLEUR: NA
• REAR DERAILLEUR: Sram Rival XPLR eTap AXS
• CRANKSET: Sram Rival XPLR eTap AXS
• CHAIN: Sram Rival D1 12 speed
• CASSETTE: Classified 11-34 12v
• DISC BRAKE: Sram Centerline 160/160mm
• SADDLE: Selle Italia Model X
• TIRE: Vittoria Terreno Dry 700×38
• GRIP: Deda Elementi Tape

TITICI WARRANTY CONDITIONS

Trere Innovation Srl Unipersonale guarantees its frames, if purchased from authorised dealers, for a duration of 5 years from the date of purchase if, within fifteen days, this is registered on the website www. titici/guarantee. If the frame is not registered within 15 days from the date of purchase, the warranty period is 3 years.

100% HANDMADE IN ITALY
