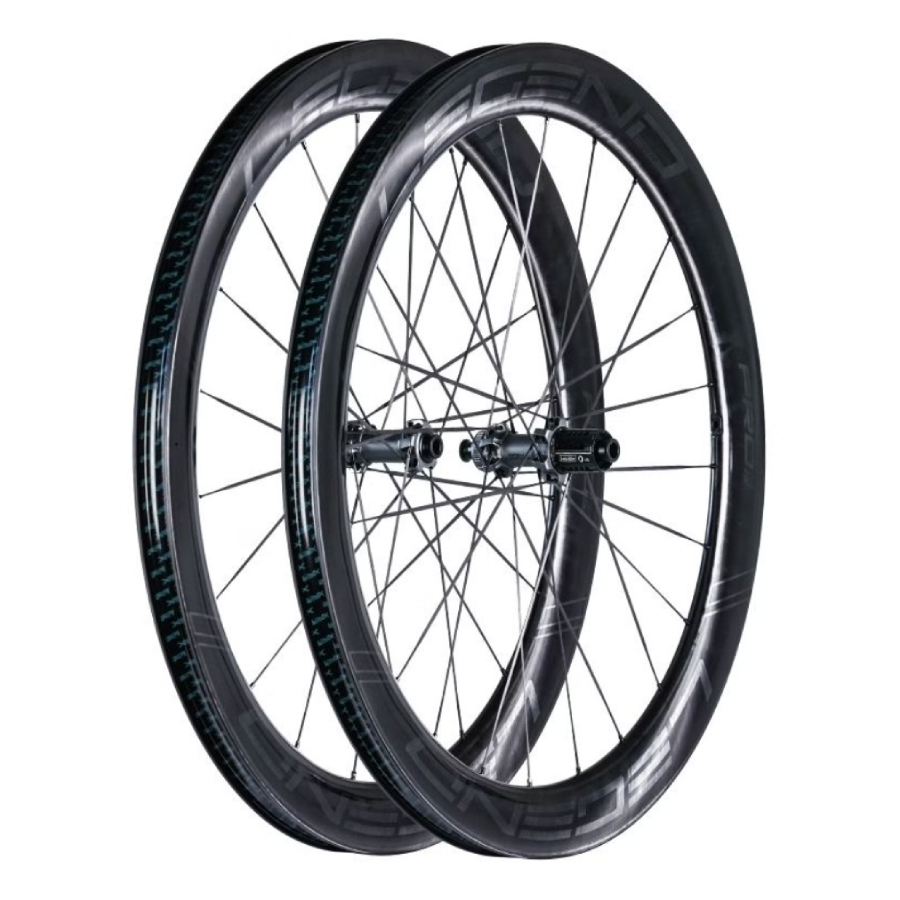

LEGEND PRO4 P30 CARBON ROAD DISC WHEELSET - 30 D X 28 W

LEGEND PRO4 P30 CARBON ROAD DISC WHEELSET - 30 D X 28 W / TUBELESS

Legend의 최상위 라인업인 PRO range wheels은 현존하는 최신의 혁신적인 기술들을 접목하려고 시도한 휠셋으로 튜브리스 레디를 대응하는 30 mm 림높이의 Pro4 P30 carbon road disc wheelset은 산악코스에 최적화된 휠셋으로 산악 업힐들 도전하는 라이더들에게 최상의 선택지이다.

CHRACTERISTICS

OBSSESSION TO MAXIMUM PERFORMANCE: 우리가 집중하는 것은 단순히 휠의 무게가 아니라 견고성, 부품의 성능과 품질의 최적화된 조화이다. 그렇게 하나로 통합하기 위해 구체적인 목표들에 도전해서 얻은 휠셋은 우리의 노력을 배신하지 않았다. 우리는 28mm의 외부 림폭을 가진 PRO4 disc rim을 적용하여 최적화된 공기역학과 향상된 측면 강성을 얻을 수 있었다. 또한 이러한 광폭림 적용으로 최적화된 진동흡수력과 향상된 승차감을 제공하여 가장 힘든 상황에서 성능을 발휘하도록 해준다.

TWO TYPES SPOKES: 가능한 최대한 휠의 견고성을 최적화하기 위해서 Legend의 최상위 라인업인 PRO range wheels은 같은 휠에 두 가지 종류의 스포크를 사용한다. 카세트가 장착되는 드라이브 사이드는 DT Swiss Aero Comp® spoke를 사용하여 극강의 측면강성을 확보하여 강직성을 가지게 했고 반대편은 보다 경량인 DT Swiss Aerolite® spoke를 사용하여 휠의 무게가 최적화되도록 감안하였다.

DT SWISS PRO LOCK INTERNAL NUTS: 림 내부에 숨겨지는 DT Pro Lock internal nut을 적용하여 보다경량의 공기역학 휠셋으로 개발하고자 하였다. 림내부 원형의 지지부분은 (spherical bearing area) 스포크가 정확한 방향으로 장착될 수 있도록 보장해준다.

SPECIFICATIONS

• Rim Material: UD Carbon
• Decal: Matt Black / Glossy or Matt Black / Silver
• Rim Height: 30mm
• Rim Width: Internal 20.9mm / External 28mm
• Front axle: 12mm thru axle (15mm 또는 quick release 변환 어댑터 별매)
• Rear axle: 12mm thru axle (quick release 변환 어댑터 별매)
• Freewheel: Shimano/Sram, Sram XDR, Campagnolo 10/11/12V & N3W
• Front Hubs: Throu Axle 12X100mm
• Rear Hubs: Throu Axle 12X142mm
• Disc Standard: Center Lock® only
• Spokes: Dt Swiss Aerolite (75%) / Aerocomp (25%)
• Nipples: Dt Swiss Pro Lock Squorx Pro Head (Internal Nipple)
• Spoke pattern: 2x cross front, 2x cross rear
• Spoke Number: 24 front, 24 rear
• Weight: Legend RS DB hubs(straight pull): 1,328g / DT240 EXP hubs: 1,308g / DT180 EXP hubs: 1,291g
• Max Air Pressure: Tube type: 101 PSI / Tubeless Type: 87 PSI
• Recommended Tire Sizes: 25mm to 32mm
• Rider Weight Limit: 110kg (짐 포함 무게)

WHEEL OPTIONS

• Hubs: Legend RS DB hubs / DT240 EXP hubs / DT180 EXP hubs
• Spoke Tensions:

  Endurance -5% for ultra distance: 뛰어난 승차감과 역동성을 제공하는 스포크 텐션

  Standard for cyclists: 뛰어난 성능과 승차감의 최적 조합을 제공하는 스포크 텐션

  Race +10% for competition:  최상의 성능과 최소한의 승차감을 제공하는 스포크 텐션

CONTENTS IN THE BOX

• Wheelset - 1 Set
• Tubeless Valve Set - 1 Set
• Tubeless Tape - 1 Piece

보증 기간: 3 YEARS (First Owner / Normal Use)

원산지: MADE IN FRANCE

LEGEND PRO4 P30 CARBON ROAD DISC WHEELSET - 30 D X 28 W / TUBELESS

This  PRO range  brings together all the latest technologies and innovations available today.

Carbon wheels with clincher and Tubeless disc version in 30 mm height ideal for mountainous routes. They are a top choice for ambitious cyclists for mountainous uphills.

CHRACTERISTICS

OBSSESSION TO MAXIMUM PERFORMANCE: Our obsession is therefore not a simple weight, but a perfect harmony between the latter, and the rigidity, the performance of the components and their qualities. We then challenged our certainties to consolidate one, our wheels will not betray your effort, they will optimize it. We have equipped our new PRO4 disc rims with an external width of 28mm. These new wheels thus benefit from optimized aerodynamic drag, as well as increased lateral stiffness. Also, the large width of these rims allows optimal absorption of vibrations, guaranteeing real comfort, essential for performing at the toughest of efforts.

TWO TYPES SPOKES: In order to optimize the rigidity of the wheel as much as possible, the PRO range uses two types of spokes on the same wheel. Where the constraints are the strongest, that is to say on the side of the cassette, we use a DT Swiss Aero Comp® spoke, known for its extreme stiffness, thus providing greater rigidity. Conversely, the side opposite the freewheel is fitted with a lighter Aerolite® spoke to optimize the weight of the wheel.

DT SWISS PRO LOCK INTERNAL NUTS: The hidden DT (internal nut) is a special feature of our offer. It was developed especially for aero rims, it is very light and is used for internal assembly. Therefore, it is perfectly suited for aero wheels. The spherical bearing area in the rim guarantees perfect orientation with respect to the spoke.

SPECIFICATIONS

• Rim Material: UD Carbon
• Decal: Matt Black / Glossy or Matt Black / Silver
• Rim Height: 30mm
• Rim Width: Internal 20.9mm / External 28mm
• Front axle: 12mm thru axle convertible to 15mm and quick release with optional adapters.
• Rear axle: 12mm thru axle, convertible to quick release with optional adapters.
• Freewheel: Shimano/Sram, Sram XDR, Campagnolo 10/11/12V & N3W
• Front Hubs: Throu Axle 12X100mm
• Rear Hubs: Throu Axle 12X142mm
• Disc Standard: Center Lock® only
• Spokes: Dt Swiss Aerolite / Aerocomp
• Nipples: Dt Swiss Pro Lock Squorx Pro Head
• Spoke pattern: 2x cross front, 2x cross rear
• Spoke Number: 24 front, 24 rear
• Weight: Legend RS DB hubs(straight pull): 1,328g / DT240 EXP hubs: 1,308g / DT180 EXP hubs: 1,291g
• Max Air Pressure: Tube type: 101 PSI / Tubeless Type: 87 PSI
• Recommended Tire Sizes: 25mm to 32mm
• Rider Weight Limit: 110kg (including a luggage)

WHEEL OPTIONS

• Hubs: Legend RS DB hubs / DT240 EXP hubs / DT180 EXP hubs
• Spoke Tensions:

  Endurance -5% for ultra distance  : A rigidity that will offer you great comfort and good dynamism.

  Standard for cyclists: Rigidity that will ensure very good performance and optimal comfort.

  Race +10% for competition:  Rigidity that will guarantee you ultimate performance and minimum comfort.

CONTENTS IN THE BOX

• Wheelset - 1 Set
• Tubeless Valve Set - 1 Set
• Tubeless Tape - 1 Piece

WARRANTY: 3 YEARS (First Owner / Normal Use)

MADE IN FRANCE
