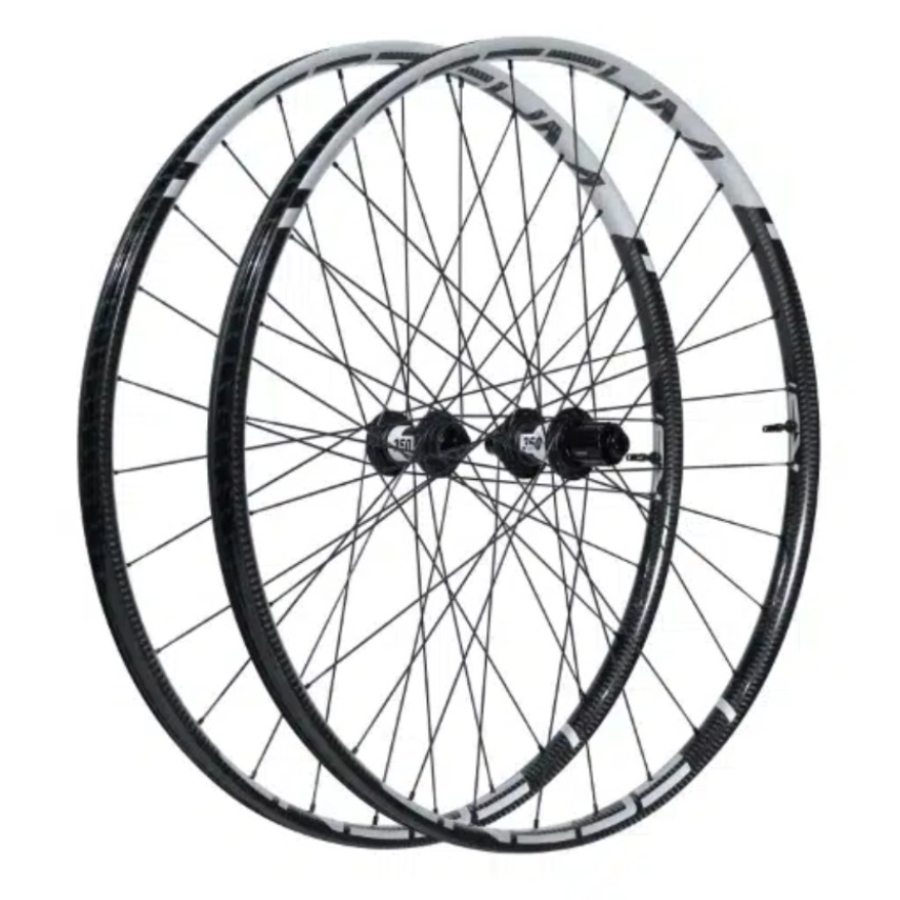

LEGEND RS4 P39 CARBON GRAVEL DISC WHEELSET - 39 D X 30.8 W / CLASSIFIED

LEGEND RS4 P39 CARBON GRAVEL DISC WHEELSET - 39 D X 30.8 W / CLASSIFIED

Legend 상위 라인업에 속하는 RS Gravel carbon disc wheels에 Classified 2단 무선 변속장치를 장착할 수 있는 Classified rear hub를 접목하였다. 30.8mm의 보다 광폭의 후크리스 림은 보다 견고하고 강하며 튜브리스 타이어를 장착할 경우 역동성과 조정능력이 강화된다. 또한 이 39 mm 림높이의 카본 그래블 휠셋은 다양한 코스들을 커버할 수 있는 대단한 범용성을 가진다.

CHRACTERISTICS

CLASSIFIED INNOVATIVE 2 SPEED REAR WIRELESS SHIFTING: Classified Powershift System을 채택하면서 비전형적인 리어 허브 케이지가 장착되었다. 이를 위해 리어 림의 스포크홀 각도를 조정해야했다. 기존 레전드 휠의 특징들을 모두 유지하여 강직도, 경량성, 신뢰성, 탁월한 디자인을 지키면서 Classified 2단 무선 변속이라는 신기술을 누릴 수 있게 되었다. (주의: Classified 리어 허브쉘만 장착된 휠셋이며 다른 Classified 전기 전가 파츠는 별도로 구매하여 장착해야 합니다.)

OBSSESSION TO MAXIMUM PERFORMANCE: 우리가 집중하는 것은 단순히 휠의 무게가 아니라 견고성, 부품의 성능과 품질의 최적화된 조화이다. 그렇게 하나로 통합하기 위해 구체적인 목표들에 도전해서 얻은 휠셋은 우리의 노력을 배신하지 않았다. 우리는 28mm의 외부 림폭을 가진 RS4 disc rim을 적용하여 최적화된 공기역학과 향상된 측면 강성을 얻을 수 있었다. 또한 이러한 광폭림 적용으로 최적화된 진동흡수력과 향상된 승차감을 제공하여 가장 힘든 상황에서 성능을 발휘하도록 해준다.

TWO TYPES SPOKES: 가능한 최대한 휠의 견고성을 최적화하기 위해서 Legend의 최상위 라인업인 PRO range wheels은 같은 휠에 두 가지 종류의 스포크를 사용한다. 카세트가 장착되는 드라이브 사이드는 DT Swiss Aero Comp® spoke를 사용하여 극강의 측면강성을 확보하여 강직성을 가지게 했고 반대편은 보다 경량인 DT Swiss Aerolite® spoke를 사용하여 휠의 무게가 최적화되도록 감안하였다.

DT SWISS PRO LOCK INTERNAL NUTS: 림 내부에 숨겨지는 DT Pro Lock internal nut을 적용하여 보다경량의 공기역학 휠셋으로 개발하고자 하였다. 림내부 원형의 지지부분은 (spherical bearing area) 스포크가 정확한 방향으로 장착될 수 있도록 보장해준다.

SPECIFICATIONS

• Rim Material: UD Carbon
• Decal: 3K Twill + Silver
• Rim Height: 39mm
• Rim Width: Internal 24mm / External 30.8mm
• Front axle: 12mm thru axle (15mm 또는 quick release 변환 어댑터 별매)
• Rear axle: 12mm thru axle (quick release 변환 어댑터 별매)
• Freewheel: Shimano/Sram, Sram XDR, Campagnolo 10/11/12V & N3W
• Front Hubs: Throu Axle 12X100mm
• Rear Hubs: Throu Axle 12X142mm
• Disc Standard: Center Lock® only
• Spokes: Dt Swiss Aerolite (75%) / Aerocomp (25%)
• Nipples: Dt Swiss Pro Lock Squorx Pro Head (Internal Nipple)
• Spoke pattern: 2x cross front, 2x cross rear
• Spoke Number: 24 front, 24 rear
• Weight: Legend RS DB hub + Classified Rear Hub (straight pull): 1,358g / DT350 DB hub + Classified Rear Hub: 1,398g / DT240 EXP hub + Classified Rear Hub : 1,363g / DT180 EXP hub + Classified Rear Hub: 1,351g / Dynamo SON Delux + Classified Rear Hub: 1,660g / Lefty Cannondale Hub + Classified Rear Hub: NA: 1,385g
• Max Air Pressure: Tubeless Type: 80 PSI (28C Tire 경우)
• Recommended Tire Sizes: 28mm to 50mm
• Rider Weight Limit: 130kg (자전거 및 짐 포함 무게)

WHEEL OPTIONS

• Hubs: Legend RS DB hubs / DT350 hubs / DT240 EXP hubs / DT180 EXP hubs
• Lefty Option:  DT240 EXP Lefty Front Hub
• Cannondale Ai Asymmetic Option: 선택 가능
• Spoke Tensions:

  Endurance -5% for ultra distance: 뛰어난 승차감과 역동성을 제공하는 스포크 텐션

  Standard for cyclists: 뛰어난 성능과 승차감의 최적 조합을 제공하는 스포크 텐션

  Race +10% for competition:  최상의 성능과 최소한의 승차감을 제공하는 스포크 텐션

CONTENTS IN THE BOX

• Wheelset - 1 Set
• Tubeless Valve Set - 1 Set
• Tubeless Tape - 1 Piece

보증 기간: 3 YEARS (First Owner / Normal Use)

원산지: MADE IN FRANCE

LEGEND RS4 P39 CARBON GRAVEL DISC WHEELSET - 39 D X 30.8 W / CLASSIFIED

This versatile range of RS GRAVEL disc version carbon wheels has been designed for performance. It brings together all the latest innovations. Equipped with a wider hookless rim, which is therefore more rigid and robust, it offers an exclusive Tubeless assembly which accentuates the dynamism and maneuverability of the bike. In addition, the 39 mm tall carbon Gravel wheel gives the set great versatility.

CHRACTERISTICS

CLASSIFIED INNOVATIVE 2 SPEED REAR WIRELESS SHIFTING: Legend Wheels has adapted its products to the mounting requirements of the Classified hub which has an atypical cage geometry due to the presence of the POWERSHIFT System. We had to modify our rim drilling angles in order to make the Classified system compatible. Stiffness levels are also similar to our standard models to retain all the benefits of a Legend Wheels wheel. You will now have access to this innovative technology, while retaining all the qualities of a Legend wheels: rigidity, low weight, reliabitlity, unrivaled design.

OBSSESSION TO MAXIMUM PERFORMANCE: Our obsession is therefore not a simple weight, but a perfect harmony between the latter, and the rigidity, the performance of the components and their qualities. We then challenged our certainties to consolidate one, our wheels will not betray your effort, they will optimize it. We have equipped our new PRO III disc rims with an external width of 28mm. These new wheels thus benefit from optimized aerodynamic drag, as well as increased lateral stiffness. Also, the large width of these rims allows optimal absorption of vibrations, guaranteeing real comfort, essential for performing at the toughest of efforts.

TWO TYPES SPOKES: In order to optimize the rigidity of the wheel as much as possible, the PRO range uses two types of spokes on the same wheel. Where the constraints are the strongest, that is to say on the side of the cassette, we use a DT Swiss Aero Comp® spoke, known for its extreme stiffness, thus providing greater rigidity. Conversely, the side opposite the freewheel is fitted with a lighter Aerolite® spoke to optimize the weight of the wheel.

DT SWISS PRO LOCK INTERNAL NUTS: The hidden DT (internal nut) is a special feature of our offer. It was developed especially for aero rims, it is very light and is used for internal assembly. Therefore, it is perfectly suited for aero wheels. The spherical bearing area in the rim guarantees perfect orientation with respect to the spoke.

SPECIFICATIONS

• Rim Material: UD Carbon
• Decal: Matt Black / Glossy or Matt Black / Silver
• Rim Height: 39mm
• Rim Width: Internal 24mm / External 30.8mm
• Front axle: 12mm thru axle convertible to 15mm and quick release with optional adapters.
• Rear axle: 12mm thru axle, convertible to quick release with optional adapters.
• Freewheel: Shimano/Sram, Sram XDR, Campagnolo 10/11/12V & N3W
• Front Hubs: Throu Axle 12X100mm
• Rear Hubs: Throu Axle 12X142mm
• Disc Standard: Center Lock® only
• Spokes: Dt Swiss Aerolite / Aerocomp
• Nipples: Dt Swiss Pro Lock Squorx Pro Head
• Spoke pattern: 2x cross front, 2x cross rear
• Spoke Number: 24 front, 24 rear
• Weight: Legend RS DB hub + Classified Rear Hub (straight pull): 1,358g / DT350 DB hub + Classified Rear Hub: 1,398g / DT240 EXP hub + Classified Rear Hub : 1,363g / DT180 EXP hub + Classified Rear Hub: 1,351g / Dynamo SON Delux + Classified Rear Hub: 1,660g / Lefty Cannondale Hub + Classified Rear Hub: NA: 1,385g
• Max Air Pressure: Tubeless Type: 80 PSI (28C Tire)
• Recommended Tire Sizes: 28mm to 50mm
• Rider Weight Limit: 130kg (including a bike and luggage)

WHEEL OPTIONS

• Hubs: Legend RS DB hubs / DT350 hubs / DT240 EXP hubs / DT180 EXP hubs
• Lefty Option:  DT240 EXP Lefty Front Hub
• Cannondale Ai Asymmetic Option: OK
• Spoke Tensions:

  Endurance -5% for ultra distance  : A rigidity that will offer you great comfort and good dynamism.

  Standard for cyclists: Rigidity that will ensure very good performance and optimal comfort.

  Race +10% for competition:  Rigidity that will guarantee you ultimate performance and minimum comfort.

CONTENTS IN THE BOX

• Wheelset - 1 Set
• Tubeless Valve Set - 1 Set
• Tubeless Tape - 1 Piece

WARRANTY: 3 YEARS (First Owner / Normal Use)

MADE IN FRANCE
