SANTIAGO RT FRAMESET - CARBON GRAVEL RACING / 700X47C - 650BX50C

SANTIAGO RT - GRAVEL RACING / 700X47C - 650BX50C

PRODUCT CONCEPT

토레이 T1100 카본 섬유를 적용한 SANTIAGO RT 모델은 기본적으로 편안함(comfort)과 향상된 반응성(greater reactivity)에 보다 나은 스포츠성(extra touch of sportiness)을 제공하는 모델로 잘 관리된 그래블 로드를 빠르게 질주하고 싶은 그래블러들을(lovers of fast gravel) 위한 모델이다.

PRODUCT NEWS

https://www.gravelingreview.com/es/Officine-Mattio-Santiago-RT/REVIEW--300152.html

FEATURES

• Fast Gravel Orientation - 레이싱 성향의 지오메트리와 최고급 부품으로 그래블 코스에서 최고의 성능을 발휘할 수 있도록 디자인된 모델이다.
• 짧은 축들 사이의 거리와 각진 방향의 조합으로 반응성이 뛰어난 빠른(reactive and fasting driving) 레이싱이 가능하여 그래블 코스에서 성능을 최대화하고 스피드를 즐기고자 하는 라이더들을 위한 모델입니다.
• Italian Craftsmanship - 이태리 장인정신과 디자인이 적용된 Santiago RT 모델은 그래블 바이크 장르에서 품질과 고급스러움의 정점을 보여준다.
• Exclusive Personalization - 색상과 부품의 맞춤 제공으로 각 라이더를 위한 독특한 모델로 제공가능하다.

CHARACTERISTICS

• ACCERLATION: 90%
• AERODYNAMICS: 90%
• KOM PERFORMANCE: 90%
• HANDLING: 95%
• LIGHTNESS: 95%
• COMFORT: 95%
• DRIVING PLEASURE: 100%
• ELEGANCE: 95%

SPECIFICATIONS

• MATERIAL: Carbon Torayca 1100 G Salt
• WEIGHT: 890 gram (M Size, Not Painted)
• GEOMETRY: STANDARD (XS, S, M, L, XL) - MADE TO MEASURE
• COLORS: STANDARD / CUSTOM
• FORK: OM GRAVEL RT - 600gram
• HEAD TUBE: 1″1/2 – 1″1/2
• BOTTOM BRACKET: PF 386
• SEATPOST: Ø 27.2 mm
• BRAKES: DB - FLAT MOUNT
• CABLE ROUTING: INTERNAL
• TIRE CLEARANCE: 700X47C - 650BX50C

IN THE BOX OF A FRAMESET

• OM SANTIAGO RT FRAME
• OM GRAVEL RT FORK
• OM HEADSET
• OM AXLE SET
• DEDA SUPERLEGGERO SEATPOST (POB)
• OM INTERGRATED GRAVEL HANDLEBAR (WIDTH: 40, 42, 44CM / LENGTH: 90, 100, 110, 120MM)

THE COMPLETE BIKE BUILD-UP

• ASK FOR THE DETAILS FROM DEALERS

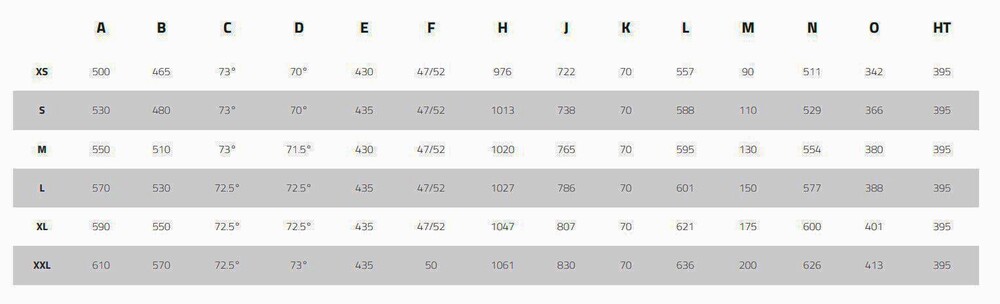

STANDARD GEOMETRY

• A Horizontal top tube length (mm)
• B Measured size (mm)
• C Seat tube angle
• D Head tube angle
• E Chainstay length (mm)
• F Fork rake (mm)
• H Wheelbase (mm)
• I Trail (mm)
• J Standover at top tube/midpoint (mm)
• K Bottom bracket drop (mm)
• L Front center distance (mm)
• M Head tube lenght (mm)
• N Stack (mm)
• O Reach (mm)
• HT Axle to crown (mm)

CRASH REPLACEMENT

프레임 파손이 생길 경우 첫 구매자분에게 본사 사이트에 프레임 등록을 했을 경우 30% 할인으로 재구매를 할 수 있도록 하며 본 서비스는 구매 등록일로부터 3년 이내로 기한이 한정됩니다.

WARRANTY: FRAMESET (2 YEARS) / PAINT (1 YEAR)

구매후 2개월내로 Officine Mattio 워런트 섹션에서 프레임 등록을 할 경우 보증기간을 1년 추가 연장하여 3년을 적용해드립니다.

원산지: 100% MADE IN ITALY

SANTIAGO RT - GRAVEL RACING / 700X47C - 650BX50C

PRODUCT CONCEPT

The RT model made with the T1100 carbon fibre, will be perfect for the gravelist looking for that extra touch of sportiness, combined with comfort and greater reactivity. Santiago RT is a bicycle designed to shine on fast and well maintained gravel roads, offering a driving experience that combines speed, reactivity and pleasure. For lovers of fast gravel, it's an unbeatable option.

PRODUCT NEWS

https://www.gravelingreview.com/es/Officine-Mattio-Santiago-RT/REVIEW--300152.html

FEATURES

• Fast Gravel Orientation - The sports geometry and high-end components are designed to maximize performance on gravel roads and routes
• The combination of your distance between short axes and angular direction allows reactive and fast driving, ideal for cyclists looking to maximize their performance and enjoy the speed on their routes.
• Italian craftsmanship - The Office Mattio Santiago RT, with its craftsmanship and Italian design, represents the pinnacle of quality and luxury in gravel bicycles.
• Exclusive personalization - The ability to customize colors and components makes each Santiago RT unique.

CHARACTERISTICS

• ACCERLATION: 90%
• AERODYNAMICS: 90%
• KOM PERFORMANCE: 90%
• HANDLING: 95%
• LIGHTNESS: 95%
• COMFORT: 95%
• DRIVING PLEASURE: 100%
• ELEGANCE: 95%

SPECIFICATIONS

• MATERIAL: Carbon Torayca 1100 G Salt
• WEIGHT: 890 gram (M Size, Not Painted)
• GEOMETRY: STANDARD (XS, S, M, L, XL) - MADE TO MEASURE
• COLORS: STANDARD / CUSTOM
• FORK: OM GRAVEL RT - 600gram
• HEAD TUBE: 1″1/2 – 1″1/2
• BOTTOM BRACKET: PF 386
• SEATPOST: Ø 27.2 mm
• BRAKES: DB - FLAT MOUNT
• CABLE ROUTING: INTERNAL
• TIRE CLEARANCE: 700X47C - 650BX50C

IN THE BOX OF A FRAMESET

• OM SANTIAGO RT FRAME
• OM GRAVEL RT FORK
• OM HEADSET
• OM AXLE SET
• DEDA SUPERLEGGERO SEATPOST (POB)
• OM INTERGRATED GRAVEL HANDLEBAR (WIDTH: 40, 42, 44CM / LENGTH: 90, 100, 110, 120MM)

THE COMPLETE BIKE BUILD-UP

• ASK FOR THE DETAILS FROM DEALERS

STANDARD GEOMETRY

• A Horizontal top tube length (mm)
• B Measured size (mm)
• C Seat tube angle
• D Head tube angle
• E Chainstay length (mm)
• F Fork rake (mm)
• H Wheelbase (mm)
• I Trail (mm)
• J Standover at top tube/midpoint (mm)
• K Bottom bracket drop (mm)
• L Front center distance (mm)
• M Head tube lenght (mm)
• N Stack (mm)
• O Reach (mm)
• HT Axle to crown (mm)

CRASH REPLACEMENT

We also want to support you in the event of a crash with consequent frame breakage, which is why we offer you a 30% discount on the purchase of a new Officine Mattio frame or fork to benefit from this opportunity, the frame must be registered. The discount will be applied to owners of frames up to 3 years old from the date of registration.

WARRANTY: FRAMESET (2 YEARS) / PAINT (1 YEAR)

If you register your Officine Mattio frame on the official OM website ("Warranty" section), within 2 months of purchase, the warranty will be extended by 1 year.

100% MADE IN ITALY
