TITICI GRAVEL BIKES - ALLOI / DEDACCIAI 7005 CUSTOM ALLOY

2020년 TITICI는 첫번째 Dedacciai aluminium 그래블 모델인 A-GR01를 선보였다. 2021년 A-GR01를 진화시킨 2세대 모델인 ALL-IN이 이태리 만투아 지역 아솔라 (Asola, Mantua Province)에서 선보였다. 두번째 모델은 통합 케이블 라우팅, 새로운 프레임과 리어 트라이앵글 지오메트리가 도입되었다. 2023년 3세대 모델은 ALLOI가 출시되었다. 그 유전자의 특성인 기간과 지형에 제한없는 adventure, travel, fun의 요소는 동일하게 유지되었으며 특별히 bike packing과 비포장도로에서의 재미를 위해 디자인되었고 새롭게 TITICI의 특허인 PAT (Plate Absorber Tech)을 알루미늄 튜빙에도 적용한 PAT.H. system이 도입되어 향상된 진동감쇄와 탁월한 승차감을 실현하였다.

FEATURES

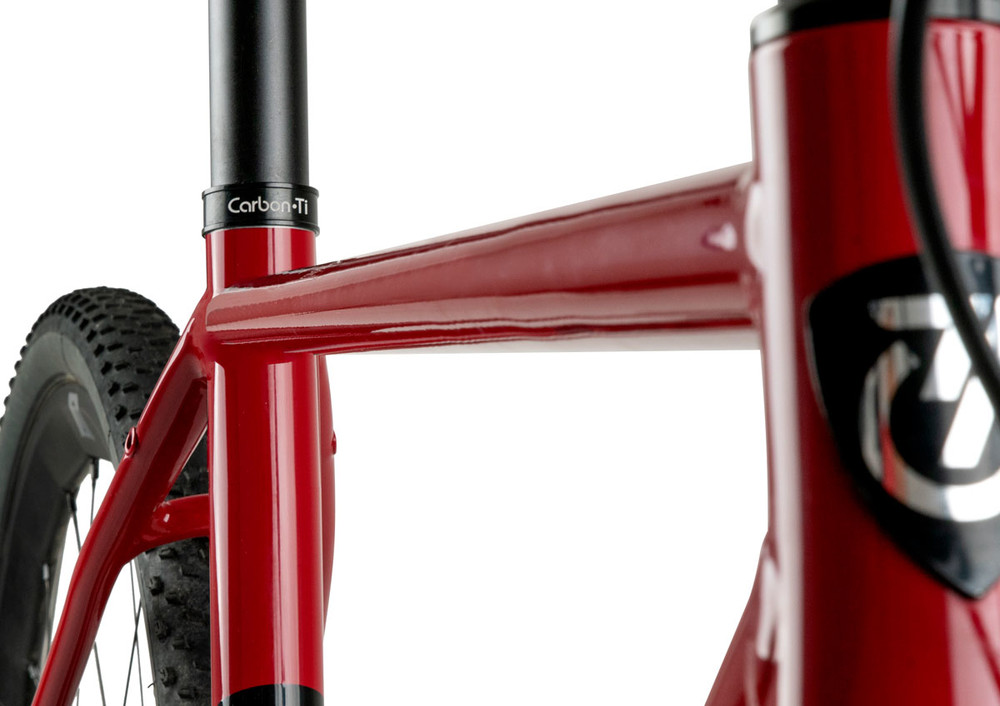

PAT.H. SYSTEM - 가족의 전통에 충실하게 ALLOI frame 역시 최고급 알루미늄 튜빙과 수작업 용접과 커스텀 형상을 지원해주는이태리 Dedacciai와 협업을 통해 생겨났다. 가장 중요한 혁신은 탑튜브에 적용된 PAT.H (Plate Absorber Technology Hydroformed) 기술로 이는 TITICI의 카본 프레임에 적용된 특허기술인 PAT system을 알루미늄 튜빙에 적용한 것이다. 얇고 평평해지는 상징적인 형상으로 진동감쇄 능력을 향상시키면서 높은 저항성과 비틀림 강성을 가지게 해준다. 이 탑튜브는 스포츠카 생산에서도 사용되는 하이드로포밍 기술이 사용되어 탁월한 신뢰성과 저항성을 가진 튜빙을 만들기 위해 액체화된 알루미늄에 높은 압력을 가해 튜빙을 제작하는 기술이다. PAT.H 기술로 탁월한 안전성과 승차감 그리고 고성능을 제공하게 되었는데 고르지않은 노면에서의 진동이 프레임 구조에서 감쇄되어 라이더의 손, 목, 등으로 전달되지 않아 피로도를 줄여주어 보다 편안하게 장거리 주행을 가능하게 해준다.

REDESIGNED FORK - 2세대 모델인 ALL-IN과 동일하게 head tube는 1 1/2" 대구경을 적용하여 케이블의 완전한 통합이 가능하도록 해준다. 이번 3세대의 카본 포크는 완전히 새롭게 디자인되어 브레이킹에 따른 힘에 보다 안정적으로 대응할 수 있도록 비대칭 디자인이 적용되었다. 이로 인하여 기술이 요하는 지형에서의 보다 안정적인 라이딩이 가능하게 되었다.

DESIGN AND FUNCTIONALITY - 장거리 오프로드 라이딩을 위해 ALLOI model은 모든 면에서 최적화되었다. 바이크 패킹에서부터 광폭 타이어 (up to 700c x 40 or 650b x 45)를 장착할 수 있는 넉넉한 여유 그리고 자신감있게 극심한 험로에서도 라이딩할 수 있는 모델로 새롭게 디자인되었다. 또한 세심한 디테일에도 신경을 써 독특하고 유일한 프레임으로 만들어준다: 끌로 음각하고 페인팅한 Titici logo가 seat stay bridge 와 chainstays에 새겨져 있고 비포장도로를 연상하게 하는 그래픽 패턴이 top tube에 새겨지며 패턴의 색상은 선택이 가능하다.

FRAMESET SPECIFICATIONS

• APPLICATION: Gravel All-Round
• FRAME: Dedecciai Alloy
• FORK: TITICI GRVA DCR ASM
• ROUTING: Internal
• SIZE OPTIONS: S, M, L, XL
• FRAME WEIGHT: 1,690G (M Size Painted with harware)
• HEADSET: 1.5" Integrated
• BB TYPE: BSA
• BRAKE MOUNT: FLAT MOUNT
• FRONT AXLE: 12X100mm
• REAR AXLE: 12X142mm
• SEATPOST DIAMETER: 31.6mm
• CLAMP: Carbon Ti Custom
• MAXIMUM TIRE SIZE: 700X45 / 650X50
• DRIVETRAIN COMPATIBILITY: Di2, eTap, AXS, EPS or Mechanic

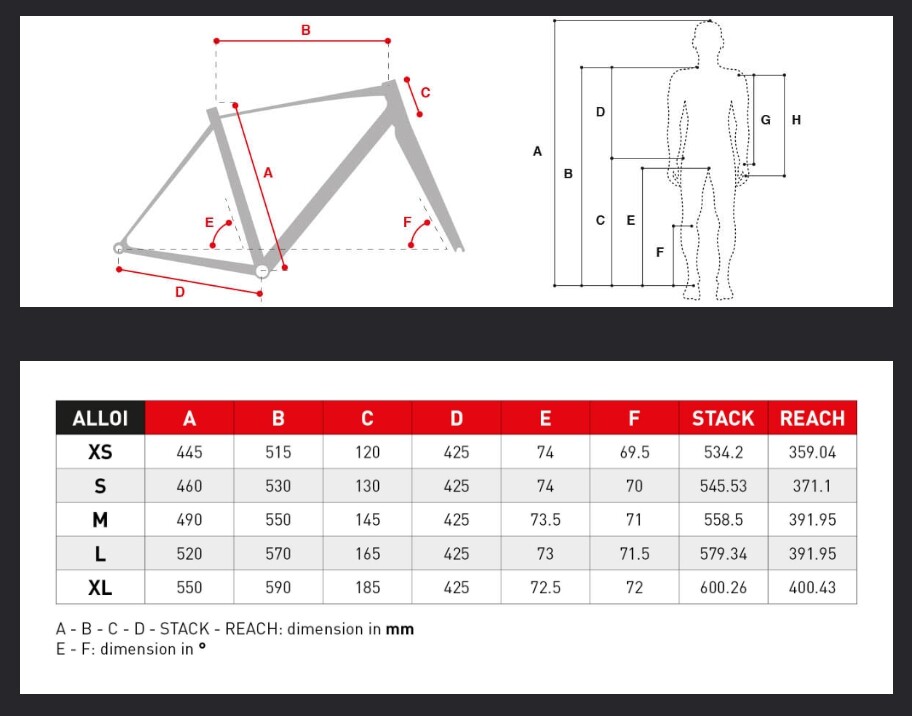

GEOMETRY

COMPONENTS OPTIONS

[SRAM APEX]

• STEM: Deda Elementi Superbox
• HANDLEBAR: Deda Elementi Gravel 100
• SEAPOST: Deda Elementi ZERO 31.6 - 18 mm setback
• WHEELSET: Fulcrum Rapid Red 900
• GROUPSET: Sram Apex
• SHIFTER: Sram APEX1 11V Flat
• FRONT DERAILLEUR: NA
• REAR DERAILLEUR: Sram APEX1 1X11V
• CRANKSET: Sram APEX1 GXP BLK 42T
• CHAIN: Sram PC 1110 11V
• CASSETTE: Sram PG-1130 11-42 11V
• DISC BRAKE: Sram Centerline 160/160mm
• SADDLE: Selle Italia Model X
• TIRE: Vittoria Terreno Dry 700×38
• GRIP: Deda Elementi Tape

[SHIMANO GRX]

• STEM: Deda Elementi Superbox
• HANDLEBAR: Deda Elementi Gravel 100
• SEAPOST: Deda Elementi ZERO 31.6 - 18 mm setback
• WHEELSET: Fulcrum Rapid Red 900
• GROUPSET: Shimano GRX600
• SHIFTER: Shimano GRX ST-RX600 + BR-RX400
• FRONT DERAILLEUR: Shimano FD-RX810
• REAR DERAILLEUR: Shimano 2x11v RD-RX810 34T
• CRANKSET: Shimano FC-RX600 46/30D
• CHAIN: Shimano CN-HG601
• CASSETTE: Shimano 11-34 CS-HG700
• DISC BRAKE: Shimano SM-RT70 Ice-Tech 160/160
• SADDLE: Selle Italia Model X
• TIRE: Vittoria Terreno Dry 700×38
• GRIP: Deda Elementi Tape

[SRAM RIVAL AXS]

• STEM: Deda Elementi Superbox
• HANDLEBAR: Deda Elementi Gravel 100
• SEAPOST: Deda Elementi ZERO 31.6 - 18 mm setback
• WHEELSET: Fulcrum Rapid Red 500
• GROUPSET: Sram Rival XPLR eTap AXS
• SHIFTER: Sram Rival eTap AXS HRD
• FRONT DERAILLEUR: NA
• REAR DERAILLEUR: Sram Rival XPLR eTap AXS
• CRANKSET: Sram Rival XPLR eTap AXS
• CHAIN: Sram Rival D1 12 speed
• CASSETTE: Sram Rival XPLR XG-1271, 10-44 12v
• DISC BRAKE: Sram Centerline 160/160mm
• SADDLE: Selle Italia Model X
• TIRE: Vittoria Terreno Dry 700×38
• GRIP: Deda Elementi Tape

[SRAM RIVAL AXS CLASSIFIED]

• STEM: Deda Elementi Superbox
• HANDLEBAR: Deda Elementi Gravel 100
• SEAPOST: Deda Elementi ZERO 31.6 - 18 mm setback
• WHEELSET: Classified Gravel 3.0 Carbon
• GROUPSET: Sram Rival XPLR eTap AXS
• SHIFTER: Sram Rival eTap AXS HRD
• FRONT DERAILLEUR: NA
• REAR DERAILLEUR: Sram Rival XPLR eTap AXS
• CRANKSET: Sram Rival XPLR eTap AXS
• CHAIN: Sram Rival D1 12 speed
• CASSETTE: Classified 11-34 12V
• DISC BRAKE: Sram Centerline 160/160mm
• SADDLE: Selle Italia Model X
• TIRE: Vittoria Terreno Dry 700×38
• GRIP: Deda Elementi Tape

[SRAM EKAR]

• STEM: Deda Elementi Superbox
• HANDLEBAR: Deda Elementi Gravel 100
• SEAPOST: Deda Elementi ZERO 31.6 - 18 mm setback
• WHEELSET: Campagnolo Levante
• GROUPSET: Campagnolo EKAR
• SHIFTER: Campagnolo EKAR
• FRONT DERAILLEUR: NA
• REAR DERAILLEUR: Campagnolo EKAR
• CRANKSET: Campagnolo EKAR
• CHAIN: Campagnolo EKAR 13 speed
• CASSETTE: Campagnolo EKAR 10-42T
• DISC BRAKE: Campagnolo EKAR 160/160mm
• SADDLE: Selle Italia Model X
• TIRE: Pirelli Cinturato H Classic 700×40
• GRIP: Deda Elementi Tape

보증 기간: 5년(구입후 15일 이내 상품등록) / 3년(구입후 15일 이내 상품등록안한 경우)

원산지: 100% HANDMADE IN ITALY

TITICI GRAVEL BIKES - ALLOI / DEDACCIAI 7005 CUSTOM ALLOY

In 2020 TITICI presents the A-GR01, its first gravel model with Dedacciai aluminium frame. The following year from the hub of Asola (Mantua Province, Italy) comes ALL-IN, the evolution of the predecessor, with integrated cable routing, new frame and rear triangle geometries. Now the Italian brand is ready to launch ALLOI, the third generation in its family of aluminium gravel bikes. The DNA has remained the same: adventure, travel, fun – with no limits in terms of duration or terrain. The third generation of the Dedacciai aluminium gravel model designed for bike packing and fun on dirt roads with new PAT.H. system for vibration damping and superior riding comfort.

FEATURES

PAT.H. SYSTEM - Faithful to the ‘family’ tradition, the ALLOI frame also stems from the collaboration with Dedacciai, the leading Italian company that produced the highest quality aluminium tubes, with handmade welds and customised shapes for TITICI. The main innovation concerns the top tube featuring the new PAT.H (Plate Absorber Technology Hydroformed) technology, derived from the patented PAT system available on TITICI carbon frames. The iconic shape with an oval section, which is thinner and flatter, increases the vibration damping capacity while maintaining high resistance and torsional rigidity. The top tube is given this shape through hydroforming, a technique also used in the production of sports cars that exploits the high pressure of liquids to create extremely reliable and resistant tubes. The benefits of PAT.H technology are superior stability and comfort combined with high performance. Vibrations generated by uneven terrain are absorbed by the frame structure and do not reach the rider’s arms, neck and back, the areas typically subjected to the most stress, thus leading to a greater feeling of well-being in the saddle over long distances.

REDESIGNED FORK - Like on the ALL-IN model, the head tube features an oversized diameter of 1 1/2” that allows for full integration of the cables. TITICI engineers have completely redesigned the fork with an accentuated asymmetry to counteract the forces produced by the braking system. The result is greater riding stability on the most technical terrain.

DESIGN AND FUNCTIONALITY - Designed for long off-road adventures, the ALLOI model is optimised in every aspect, from its bikepacking predisposition to the possibility of fitting generously sized tyres, up to 700c x 40 or 650b x 45, and tackling the most extreme trails with full confidence. Sophisticated details make it unique and exclusive: the chiselled and hand-painted Titici logo on the seat stay bridge and on the chainstays, the graphic pattern on the top tube that evokes the magic of dirt roads, the total customisation of the colours. A perfect union of Made in Italy design and innovative functionality that has always been the hallmark of TITICI.

FRAMESET SPECIFICATIONS

• APPLICATION: Gravel All-Round
• FRAME: Dedecciai Alloy
• FORK: TITICI GRVA DCR ASM
• ROUTING: Internal
• SIZE OPTIONS: S, M, L, XL
• FRAME WEIGHT: 1,690G (M Size Painted with harware)
• HEADSET: 1.5" Integrated
• BB TYPE: BSA
• BRAKE MOUNT: FLAT MOUNT
• FRONT AXLE: 12X100mm
• REAR AXLE: 12X142mm
• SEATPOST DIAMETER: 31.6mm
• CLAMP: Carbon Ti Custom
• MAXIMUM TIRE SIZE: 700X45 / 650X50
• DRIVETRAIN COMPATIBILITY: Di2, eTap, AXS, EPS or Mechanic

GEOMETRY

COMPONENTS OPTIONS

[SRAM APEX]

• STEM: Deda Elementi Superbox
• HANDLEBAR: Deda Elementi Gravel 100
• SEAPOST: Deda Elementi ZERO 31.6 - 18 mm setback
• WHEELSET: Fulcrum Rapid Red 900
• GROUPSET: Sram Apex
• SHIFTER: Sram APEX1 11V Flat
• FRONT DERAILLEUR: NA
• REAR DERAILLEUR: Sram APEX1 1X11V
• CRANKSET: Sram APEX1 GXP BLK 42T
• CHAIN: Sram PC 1110 11V
• CASSETTE: Sram PG-1130 11-42 11V
• DISC BRAKE: Sram Centerline 160/160mm
• SADDLE: Selle Italia Model X
• TIRE: Vittoria Terreno Dry 700×38
• GRIP: Deda Elementi Tape

[SHIMANO GRX]

• STEM: Deda Elementi Superbox
• HANDLEBAR: Deda Elementi Gravel 100
• SEAPOST: Deda Elementi ZERO 31.6 - 18 mm setback
• WHEELSET: Fulcrum Rapid Red 900
• GROUPSET: Shimano GRX600
• SHIFTER: Shimano GRX ST-RX600 + BR-RX400
• FRONT DERAILLEUR: Shimano FD-RX810
• REAR DERAILLEUR: Shimano 2x11v RD-RX810 34T
• CRANKSET: Shimano FC-RX600 46/30D
• CHAIN: Shimano CN-HG601
• CASSETTE: Shimano 11-34 CS-HG700
• DISC BRAKE: Shimano SM-RT70 Ice-Tech 160/160
• SADDLE: Selle Italia Model X
• TIRE: Vittoria Terreno Dry 700×38
• GRIP: Deda Elementi Tape

[SRAM RIVAL AXS]

• STEM: Deda Elementi Superbox
• HANDLEBAR: Deda Elementi Gravel 100
• SEAPOST: Deda Elementi ZERO 31.6 - 18 mm setback
• WHEELSET: Fulcrum Rapid Red 500
• GROUPSET: Sram Rival XPLR eTap AXS
• SHIFTER: Sram Rival eTap AXS HRD
• FRONT DERAILLEUR: NA
• REAR DERAILLEUR: Sram Rival XPLR eTap AXS
• CRANKSET: Sram Rival XPLR eTap AXS
• CHAIN: Sram Rival D1 12 speed
• CASSETTE: Sram Rival XPLR XG-1271, 10-44 12v
• DISC BRAKE: Sram Centerline 160/160mm
• SADDLE: Selle Italia Model X
• TIRE: Vittoria Terreno Dry 700×38
• GRIP: Deda Elementi Tape

[SRAM RIVAL AXS CLASSIFIED]

• STEM: Deda Elementi Superbox
• HANDLEBAR: Deda Elementi Gravel 100
• SEAPOST: Deda Elementi ZERO 31.6 - 18 mm setback
• WHEELSET: Classified Gravel 3.0 Carbon
• GROUPSET: Sram Rival XPLR eTap AXS
• SHIFTER: Sram Rival eTap AXS HRD
• FRONT DERAILLEUR: NA
• REAR DERAILLEUR: Sram Rival XPLR eTap AXS
• CRANKSET: Sram Rival XPLR eTap AXS
• CHAIN: Sram Rival D1 12 speed
• CASSETTE: Classified 11-34 12V
• DISC BRAKE: Sram Centerline 160/160mm
• SADDLE: Selle Italia Model X
• TIRE: Vittoria Terreno Dry 700×38
• GRIP: Deda Elementi Tape

[SRAM EKAR]

• STEM: Deda Elementi Superbox
• HANDLEBAR: Deda Elementi Gravel 100
• SEAPOST: Deda Elementi ZERO 31.6 - 18 mm setback
• WHEELSET: Campagnolo Levante
• GROUPSET: Campagnolo EKAR
• SHIFTER: Campagnolo EKAR
• FRONT DERAILLEUR: NA
• REAR DERAILLEUR: Campagnolo EKAR
• CRANKSET: Campagnolo EKAR
• CHAIN: Campagnolo EKAR 13 speed
• CASSETTE: Campagnolo EKAR 10-42T
• DISC BRAKE: Campagnolo EKAR 160/160mm
• SADDLE: Selle Italia Model X
• TIRE: Pirelli Cinturato H Classic 700×40
• GRIP: Deda Elementi Tape

TITICI WARRANTY CONDITIONS

Trere Innovation Srl Unipersonale guarantees its frames, if purchased from authorised dealers, for a duration of 5 years from the date of purchase if, within fifteen days, this is registered on the website www. titici/guarantee. If the frame is not registered within 15 days from the date of purchase, the warranty period is 3 years.

100% HANDMADE IN ITALY
