HUNT PROVEN CARBON RACE XC UD CARBON SPOKE WHEELSET - 29"

HUNT PROVEN CARBON RACE XC UD CARBON SPOKE WHEELSET - 29" Boost

UNPRECEDENTED ATTENTION TO SPECIFICATION FOR FEROCIOUSLY FAST PERFORMANCE. A POTENT CARBON XC WHEEL SYSTEM, TUNED FOR LOW-WEIGHT AND HIGH STRENGTH.

29" | 30 WIDE INT | 1,469G I CenterLock

THE PURPOSE

강도와 내구성의 희생없이 가볍고 빠른 가속성능과 낮은 무게를 원하는 라이더들을 위해 Hunt Proven Carbon Race XC wheel system을 개발하게 되었다. 컨트롤과 그립의 향상을 가져온 현대적인 타이어 표준들을 감안하여 개발되었으며 헌트의 전설적으로 믿음직한 2중 실드처리된 CNC hub가 적용되었다.

PROVEN CARBON RACE XC COMPETITOR IMPACT TESTING

Hunt의 인하우스 테스트는 매우 진지하게 진행되며 having 새로운 엔지니어링 시설과 맞춤 제잗된 충격 테스트 리그(rig)로 모든 신규 Hunt 휠셋은 높은 수준의 테스트 기준을 충족한다는 것을 100% 확신할 수 있다. 아래 그래프는 Hunt Proven Carbon Race XC와 선도적인 경쟁휠셋들의 테스트 결과로 첫번째 실패시 기족된 충격 에너지를 보여준다.

Hunt 휠셋을 디자인할 때 거의 모든 종류의 상황하에서 매우 인상적인 수준의 충격 테스트를 가진다. 트레일을 달리거나 거친 노면을 내달릴 때도 당신은 자신감있게 내달릴 수 있다. 이에 걸맞게 Hunt에서는 proven wheelset 첫 구매자에게 평생 무상 크래시 교환 서비스를 기본으로 제공한다.

KEY FEATURES

AN ELEGANT BALANCE OF STRENGTH AND LOW WEIGHT

RIMS  Proven Race XC Carbon rim은 강도와 경량의 탁월한 밸런스를 구현하고자 디자인되었다. 뛰어난 타이어 사이드월 지지를 위해 30mm의 내부 림폭을 가진다.

SPOKES  28개의 레이스용 straight pull Pillar PSR 1420 스포크는 최첨단의 Proven carbon rim과 CNC 가공된 알루미늄 합금 허브와 연결시켜준다. 각 bladed spoke는 냉간 단조로 제작되며 강도의 희생없이 30% 수준의 무게 감량을 자랑한다. 강하고 빠르고 가볍고 보기에도 좋다.

NIPPLES  Race XC는 강한 도금처리된 alloy nipples이 적용되었으며 내부 또는 외부에서 모두 스포크 조정이 가능하다. 경량의 square-headed nipples은 성능의 희생없이 상당한 무게 감량을 제공한다.

FREEHUB BODY  SRAM XD, Shimano Microspline or HG freehub 제공된다.

BEARINGS  고품질의 2중 실드처리된 Revo bearing이 적용되며 오랜 기간동안 부드러운 구름성을 제공한다. 정비에 소모되는 시간을 줄이고 트레일을 달릴 수 있는 시간을 늘려준다.

ADAPTABILITY  Proven wheelset은 거의 모든 현대 산악자전거의 표준을 쉽게 부합하는 허브를 채용한다. 또한 애프터 마켓용 허브 어댑터들도 쉽게 구할 수 있어 자전거를 바꿀 경우 Proven wheelset을 계속 사용할 수 있다.

WEIGHT  1,469그램의 무게인 Proven Race XC wheelset은 Hunt의 가장 가벼운 carbon XC wheelset으로 이러한 인상적인 무게는 새롭게 개발된 카본 레이업 조합과 신뢰성높은 CNC machined alloy hub, 그리고 경량의 트리플 버티드 Pillar spoke 적용 덕분이다.

SPECS OVERVIEW

• Rims | 3K 카본 직조 보강을 가진 맞춤형 carbon construction으로 전륜과 후륜 모두 미래지향적인 30mm 내부림폭, 진동흡수에 효과적인 22mm 림 높이 그리고 손쉬운 타이어 장착이 가능한 넉넉한 림 중앙 깊이를 가진다. 튜브리스 레디 적용으로 튜브리스 테이프와 밸브가 기본 포함된다. 손쉬운 튜브리스 타이어 장착을 위한 H-lock bead-seat up-kicks을 가진다. 뛰어난 내구성을 위한 레이저 각인 그래픽을 가진 매트 블랙의 마감처리를 가진다.
• Hubs | 정밀 CNC 가공된 straight pull spoke hub로 추가적인 베어링 쉴드를 가진다. 5도의 RapidEngage rear hub와 boost (110/148) spacing을 제공한다. 대구경 2중 실드 카트리지 베어링이 적용되며 Rock Shox Torque Cap 사용도 가능하다.
• Spokes | 28F/28R Spoke Count, Triple Butted, Cold forged, Straight pull, Pillar XTRA 1420 spokes for increased strength and low weight.
• Tires | 2.4인치~2.6인치 타이어가 최적이며 2.25인치~2.8인치 타이어도 사용 가능하다.
• Bearings | 매우 부드럽고 빠른 구름성을 가지며 교체가능한 6092 RS Revo bearing이 적용되었으며 2중 full-contact seal과 장기간 사용가능하고 열에 강한 grease protect로 방수효과가 있어 잦은 정비가 필요없게 해준다.
• Axles | 강도와 경도를 가진 15mm axle로 허브내의 감소된 움직임(flex)으로 베어링 수명을 오래 유지시켜준다.
• Rider Weigh Limit I 짐을 포함하여 최대 120kg. 라이더 몸무게가 110Kg 초과하는 경우 정기적으로 전문 미케닉의 점검을 받는 것을 추천드립니다.
• Max Air Pressure I 2.5"이하 타이어경우 40psi. 2.6 - 3.0" 타이어경우 최대 30psi. 타이어에 표기된 최대 공기압을 절대로 초과하여 주입하지 마세요.
• Weight | 1,469g

IN THE BOX

• Black Shield PET high tensile strength tubeless tape fitted to wheels
• Freehub
• Tubeless Valves
• Spare of each spoke plus nipples
• Quality control card signed by your wheel builder

RECOMMENDED TUBELESS MTN TIRE

Schwalbe Nobby Nic 29" 2.4 Snake Skin MTB Tire Combo

제품 보증: 3 YEARS / H_CARE (free lifetime crash replacement for the first owners)

원산지: DESIGNED IN UK AND MADE IN TAIWAN

HUNT PROVEN CARBON RACE XC UD CARBON SPOKE WHEELSET - 29" Boost

CARBON INNOVATION REDEFINED. OUR LIGHTEST MOUNTAIN WHEELS YET. ULTRA-RESPONSIVE CARBON-BLADED SPOKES AND CUTTING-EDGE S_RAPIDENGAGE 90T 3X2 PAWL SYSTEM. UNLEASH THE SPEED.

29” | UD CARBON SPOKE | 2-DEGREE ENGAGEMENT | 30MM WIDE INT | 1,254G

THE PURPOSE

Beginning with the rims, Proven Carbon Race XC UD follow the principles of the rest of the Proven family, offering tuned compliance and stability with a modern 30mm internal width, but with the goal of making a competitive XC race wheel, low weight. Using carbon UD spokes which can withstand a maximum tensile load of 405 Kgf, Proven Carbon Race XC UD is our lightest mountain bike wheelset to date and features our free H_Care lifetime crash replacement warranty.

Design changes like a reduction to a 22mm rim height and 36mm external rim width naturally reduce materials and weight, but our engineers didn’t stop here. Through the testing and study of carbon processes, resin choices and construction methods, we have been able to shave off every unnecessary gram while reinforcing key structural areas. The result is a front rim weight of 348g and a rear of 369g.

The search for speed didn't just stop at low weight. Our engineers also heavily invested in increasing efficiency by utilising super smooth EZO bearings throughout and updating our ratchet system to the latest S_RapidEngage system featuring a 3x2 pawl design and increased 90T ratchet for an incredible 2-degree engagement angle for instant power transfer from the pedal to the trail.

PROVEN CARBON RACE XC COMPETITOR IMPACT TESTING

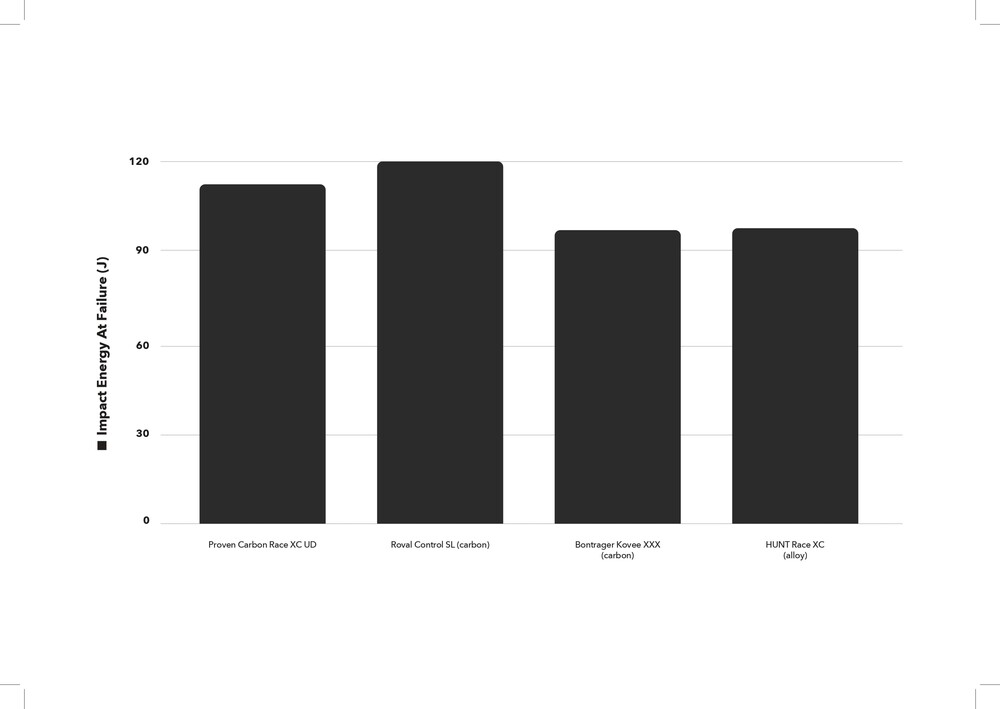

In-house testing is something we take very seriously here at HUNT and having 24/7 access to our new engineering facility and custom impact test rig ensures we are 100% confident that each new HUNT wheelset meets our high standards. The graph below shows the impact test results of Proven Carbon Race XC and leading competitors. The graph below shows the impact energy (J) recorded at the first sign of failure.

As most of you will already know, we design our wheels to take a pretty impressive amount of hammering under all sorts of conditions. Whether you're hitting out at your trail, or bombing down the rough stuff, you can do so with the confidence that you're rolling on hoops designed to take the lot in their stride.

KEY FEATURES

AN ELEGANT BALANCE OF STRENGTH AND LOW WEIGHT.

• Rims | Hookless Designed and engineered in-house to offer the ultimate speed and performance benefits for XC racers and riders. Built to be lightweight, the carbon layup of each rim is tuned to offer front wheel compliance with rapid rear wheel acceleration and effortless rolling capabilities. Aimed at the highest level of competition and built with an eye on the future, the wide 30mm internal rim width is compatible with cutting-edge XC racing tires.
• Hubs | Feather-light CNC alloy hubs are meticulously crafted to remove unnecessary weight without compromising durability or performance. S_RapidEngage system features a 3x2 system with double-tooth pawls engaging with a larger 90t drive ring to offer incredible 2-degree engagement angle for instant power transfer from the pedal to the track. Centre lock disc interface.
• Spokes | 20F/24R TaperLock UD carbon spokes offer up to a 30% less extension under load against steel equivalents. Only 2.7g per spoke and yet can handle tightening forces of ~405kgf per spoke. Fully serviceable and replaceable. Read more about TaperLock technology here.
• Tires | Optimised for 2.2"-2.4" tire widths, but suitable for tires 1.6"-2.6".
• Bearings | Ultra-low friction, precision-engineered EZO bearings minimize energy loss and maximize speed through their advanced design that allows for lightning-fast rolling.
• Axles | Oversized 7075 axles combine incredible weight saving with strength for unparalleled power transfer and precise handling.
• Hand-built | All of our wheels are built and finished by hand, inclusive of a full quality control inspection.
• Included | Tubeless tape, valve & spokes.
• Weight | 1254g

SPECS OVERVIEW

• Rims | Tailored carbon construction with 3k carbon weave reinforcement. Both front and rear rims feature tuned profiles with a future-proof 30mm internal rim width, vibration damping 22mm rim depth, and ample rim well depth for pain-free tire installation. Tubeless-ready – designed to work excellently with tubeless tires. Tubeless-rim tape and valves included. H-lock bead-seat up-kicks for easy and secure tubeless installation. Matt black work-hardened shot-peened finish with laser etched graphics for superior durability.
• Rapid Engage Hubs | The all-new, race-ready S_RapidEngage freehub boasts 2 teeth per pawl to offer our fastest engaging MTB freehub to date. This race-ready 3x2 pawl system is mated to our new 90t ratchet ring with 6 durable pawls transferring power in an alternating pattern creating an almost instant 2-degree engagement for improved responsiveness and pedal input.
• Spokes | Pushing the boundaries of what's possible, we have borrowed race-winning technology from our advanced road wheels to cut weight and enhance performance. Cutting-edge TaperLock UD Carbon Spokes weigh just 2.7g per spoke but deliver an astounding 30% less extension under load compared to steel alternatives. The perfect balance of strength and agility, the precision tuned spoke count has been developed for uncompromising performance. The 20F/24R spoke count ensures minimal weight resulting in rapid power transfer, comfort and accurate handling.
• Tires | Optimised for 2.4"-2.6" tire widths, but also work very well with 2.25"-2.8".
• Bearings | Precision EZO bearings with dual full contact seals protect against dirt, mud and water, ensuring long lasting durability, and zero drag, unbeatable performance.
• Nipples I Our lightweight alloy Taperlock nipples are designed to prevent the lightweight UD carbon spokes from twisting under harsh loads, ensuring equal tension from race to race.
• Axles | 15mm axles for strength and stiffness, reduced flex in the hub also helps to increase bearing life.
• Rider Weigh Limit I 120kg. If a rider is over 110Kg then an experienced bike mechanic should check the wheel regularly.
• Max Air Pressure I up to 2.5" do not exceed 40psi. 2.6 - 3.0" - do not exceed 30psi. Please do not exceed the maximum pressure stated on your tire.
• Weight | Engineered in West Sussex, UK and raced throughout the 2022 UCI XC World Cup season, Proven Carbon Race XC UD wheelsets weigh in at an unrivalled 1254g yet boast an impressive 30mm internal width for unbeatable strength and stability.

IN THE BOX

• Black Shield PET high tensile strength tubeless tape fitted to wheels
• Freehub
• Tubeless Valves
• Spare of each spoke plus nipples
• Quality control card signed by your wheel builder

RECOMMENDED TUBELESS MTN TIRE

Schwalbe Nobby Nic 29" 2.4 Snake Skin MTB Tire Combo

WARRANTY: 3 YEARS / H_CARE (free lifetime crash replacement for the first owners)

DESIGNED IN UK AND MADE IN TAIWAN
