QUINTA STRADA STEEL CARBON ROAD FRAME KIT - COLUMBUS XCr / 32C

QUINTA STRADA STEEL CARBON ROAD FRAME KIT - COLUMBUS STAINLESS XCr + FULL INTEGRATED TRITTICO

Full Customized Spearhead Model with Steel + Carbon Tubes

FEATURES

• Columbus XCr Stainless Steel Tubes와 3K Carbon Tubes 결합한 Barco Flagship Model
• 풀인터널 라우팅을 지원하는 Columbus Full Trittico Parts (Stem, Handlebar, Seatpost, GPS Mount, Two Carbon Bottle Cages) 기본 제공
• 고급스럽고 신뢰성있는 정밀한 클램핑을 위한 독자적인 Barco Integrated Seatclamp 적용
• 내구성 향상을 위한 이음부분 Stainless Steel Parts 적용: Bottom Bracket, Rear Dropouts, Flat-Mount Brake Mounts, Bottle Cage Bosses, Laser Stay Bridge
• 완벽한 휠정렬을 위한 독자적인 Barco Off-Center Dropout 적용
• 강성과 내부케이블배선을 위한 공간확보에 적합한 T47 Bottom Bracket 적용

FRAMESET SPECIFICATIONS

• Columbus XCr Stainless Steel Tubes - Headtube, Toptube, Seatstays, Bottom Bracket
• Italian 3K Carbon Tubes - Downtube, Seattube (ISP or Seatpost), Chainstays
• 31.6mm Seatpost (ISP or Carbon Seatpost)
• T47 Bottom Bracket
• Integrated Cable Routing
• 700 X 32 Tyre Clearance
• Columbus Ceramic Headset
• Columbus Futura Trefoil Fork
• Columbus Full Trittico
• Barco Dropout with Off Center System
• Barco Integrated Seat Clamp
• Frame Weight (M Size): 1,700 gram
• Fork Weight (Uncut): 350 gram

FRAME CUSTOMIZATION (각 옵션 추가 비용)

• Custom Geometry: 45만원
• Headtube Length Adjustment: 19만
• Chris King Headset Upgrade (Inset, Dropset, No Threadset): 35만원
• Titanium Thre Axles Upgrade: 29만원

COLOR CUSTOMIZATION (각 옵션 추가 비용)

• DEFAULT: Single Color Paint, Brushed or Polished Finish, Sandblasted Logos
• Custom Painting Options: Two(19~39만원) / Three(40~59만원) / Four Color Paint(60~75만원)
• Stem / Seatpost / Handlebar Paint: 각 14만원
• Special Finish Options: Primitiva (29만원) / Cromovelato (29만원)

MARK CUSTOMIZATION (각 옵션 추가 비용 / Check Customisations PDF fIle.)

• DEFAULT: Tricolore (시트튜브 상단 후면 이태리 국기 3색 마크)
• Targhetta Mia (탑튜브 뒷부분 수작업 싸인 마크): 19만원
• Vola Colombina (시트튜브 하단 Columbus Bird 마크): 14만원
• Fatto Con Il Coure (다운튜브 하단 하트 마크): 14만원

THE PARTS BASICALLY PROVIDED

• Barco Stainless Steel Headbadge
• Columbus Ceramic Headset
• Columbus Futura Trefoil Fork
• Columbus Trittico: Stem, Handlebar, Seatpost, GPS Mount, Two Carbon Bottle Cages
• Thru Axles: Front 100X12mm / Rear 142X12mm
• Removable Rear Derailleur Hanger: 2 pieces
• Barco Off-Center Kit

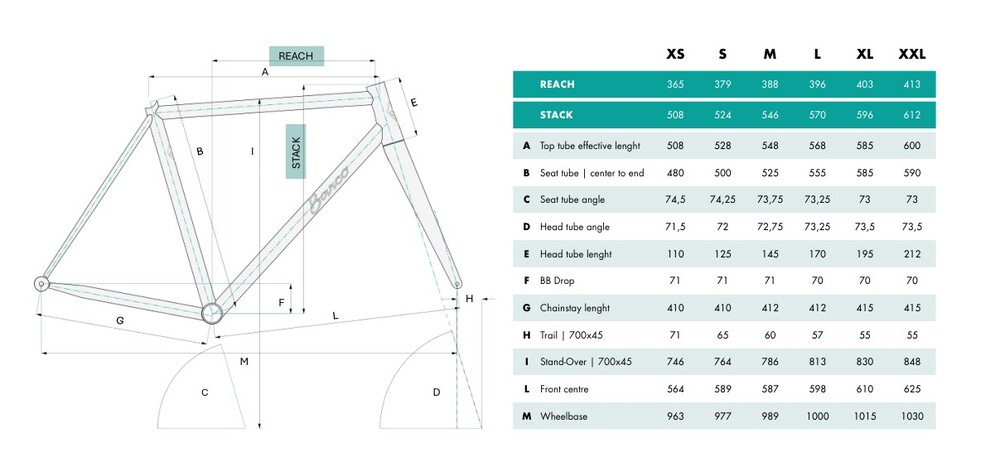

GEOMETRY

WARRANTY: 5 YEARS

HANDMADE IN ITALY

QUINTA STRADA STEEL CARBON ROAD FRAME KIT - COLUMBUS STAINLESS XCr + FULL INTEGRATED TRITTICO

Full Customized Spearhead Model with Steel + Carbon Tubes

FEATURES

• Barco Flagship Road Model with Columbus XCr Stainless Steel and 3K Carbon Tubes
• Fully Integrated Cable Routing with Columbus Full Trittico Parts (Stem, Handlebar, Seatpost, GPS Mount, Two Carbon Bottle Cages)
• Integrated Seatclamp for Elegant Style and Reliable Clamping
• Enhanced Durability with Stainless Steel Contact Points: Bottom Bracket, Rear Dropouts, Flat-Mount Brake Mounts, Bottle Cage Bosses, Laser Stay Bridge
• Iconic Off-Center Dropout for Perfect Wheel Alignment
• Providing Rigidity and More Space for Internal Cable Routing with T47 Bottom Bracket

FRAMESET SPECIFICATIONS

• Columbus XCr Stainless Steel Tubes - Headtube, Toptube, Seatstays, Bottom Bracket
• Italian 3K Carbon Tubes - Downtube, Seattube, Chainstays
• 31.6mm Seatpost
• T47 Bottom Bracket
• Integrated Cable Routing
• 700 X 32 Tyre Clearance
• Columbus Ceramic Headset
• Columbus Futura Trefoil Fork
• Columbus Full Trittico
• Barco Dropout with Off Center System
• Barco Integrated Seat Clamp
• Frame Weight (M Size): 1,700 gram
• Fork Weight (Uncut): 350 gram

FRAME CUSTOMIZATION (Cost Added Variably)

• Custom Geometry
• Headtube Length Adjustment
• Chris King Headset Upgrade (Inset, Dropset, No Threadset)
• Titanium Thre Axles Upgrade

COLOR CUSTOMIZATION (Cost Added Variably)

• DEFAULT: Single Color Paint, Brushed or Polished Finish, Sandblasted Logos
• Custom Painting Options: Two / Three / Four Color Paint
• Stem / Seatpost / Handlebar Paint
• Special Finish Options: Primitiva / Cromovelato

MARK CUSTOMIZATION (Cost Added Variably / Check Customisations PDF fIle.)

• DEFAULT: Tricolore
• Targhetta Mia (Hand Graved Letters on Rear Top Tube)
• Vola Colombina (Columbus Bird Mark on Lower Seat Tube)
• Fatto Con Il Coure (Heart Mark on Lower Down Tube)

THE PARTS BASICALLY PROVIDED

• Barco Stainless Steel Headbadge
• Columbus Ceramic Headset
• Columbus Futura Trefoil Fork
• Columbus Trittico: Stem, Handlebar, Seatpost, GPS Mount, Two Carbon Bottle Cages
• Thru Axles: Front 100X12mm / Rear 142X12mm
• Removable Rear Derailleur Hanger: 2 pieces
• Barco Off-Center Kit

GEOMETRY

WARRANTY: 5 YEARS

HANDMADE IN ITALY
