[예매] CRANKSET CRS-G2 - HEAVY DUTY

CRANKSET CRS-G2 - HEAVY DUTY

2017년 처음 개발한 heavy duty 모델로 2019년 Mr. Bruno Zanchi enduro team이 사용하면서 보다 신뢰성이 높은 모델로 개선되어 그래블, 바이크 패킹, 진흙길 등 어떠한 노면에서도 사용이 가능한 크랭크세트.

SPECIFICATIONS:

• 소재: 2024 알루미늄 합금 (hollowed cranks) / 7075 알루미늄 합금 (spindle)

                 2024 alloy: 항공우주산업에서 주로 사용되는 무게 대비 강성이 가장 높은 알루미늄 합금

                 7075 alloy: 뛰어난 연성, 높은 강성, 높은 피로 저항성을 가진 알루미늄 합금

• 무게: 625g (170mm hollowed cranks, with L131 spindle, chainring 미포함)
• 길이: Medium (170mm)

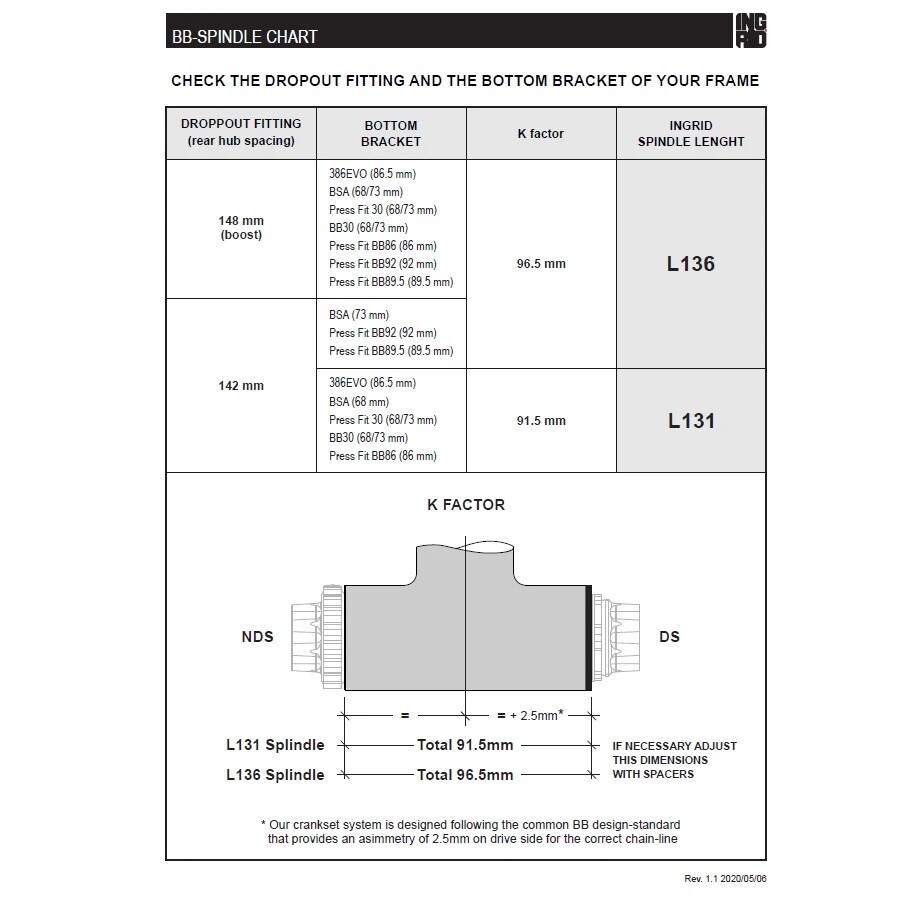

• 스핀들 지름: 30mm for BSA, PF92, BB30 in 2 length,  L131 (K-factor 91.5) and L136 (K-factor 96.5)
• K-Factor: 91.5mm (L131) / 96.5mm (L136) (크랭크 외부 양측면 사이 폭)
• Q-Factor: 163mm (L131) / 168mm (L136) (스페이서 등을 포함한 Bottom Bracket의 폭)
• Chain Line : 49.5mm (with spindle L131), 52mm (with spindle L136)
• Boost 호환
• 색상: Black, Titanium, Raw(no finish), Special Colours (Red, Orange, Yellow, Blue, Green, Violet)
• [주의] Ingrid chainring 미포함

COMPATIBILITY:

Ingrid 모든 chainrings과 spindles 호환

타 브랜드 체인링의 경우 Ingrid Spider를 같이 사용하고 110 x 5 BCD에 맞는 경우만 사용 가능

타 브랜드 스핀들은 호환 안됨

RELATED PRODUCTS: 로드 크랭크세트와 함께 사용가능한 Ingrid 제품

• Ingrid MTN/Gravel Single Chainrings (Direct Mount / 32T, 34T, 36T, 38T, 40T, 42T)
• Ingrid Road/Gravel Spider (110 X 5 BCD Single and Double Chainrings)
• Ingrid Cassettes (12 Speed 10-48T, 11 Speed 10-46T)
• Ingrid MTN Derailleur (12 Speed: RD1-M12S)

CRANKSET LOCK RING TOOL

• Ingrid 체인링 락링 체결을 위한 전용 tool 필요
• Crankset과 함께 구매할 경우 특별 번들 가격 제공

원산지: 100% MADE IN ITALY

CRANKSET CRS-G2 - HEAVY DUTY

We designed this crankset when we was 2 years old… It was 2017 and the second season with Mr. Bruno Zanchi enduro team was coming. Actually during the first season we pretended too much from our first crankset, the L model. This was too light and even too stiff for a gravity approach. For the G only one main word was considered: reliability. For this reason, you can even use it in gravel, in bike packing, dirt, and whatever you want.

SPECIFICATIONS:

• Material: 2024 almuminium alloy (cranks) / 7075 aluminium alloy (spindle)

                         2024 alloy is for aerospace industry and has a high strength to weight ratio

                         7075 alloy has good ductility, high strength, toughness, resistance to fatigue

• Weight: 625g (170mm cranks, L131 spindle without chainring)
• Cranks Length: Medium (170mm)
• Spindle: 30mm that fits BSA, PF92, BB30 in 2 length,  L131 (K-factor 91.5) and L136 (K-factor 96.5)
• K-Factor: 91.5mm (L131) / 96.5mm (L136) (The width between cranks)
• Q-Factor: 163mm (L131) / 168mm (L136) (The length of BB including spacers)
• Chain Line : 49.5mm (with spindle L131), 52mm (with spindle L136)
• Boost Compatible
• Colors: Black, Titanium, Raw(no finish), Special Colours (Red, Orange, Yellow, Blue, Green, Violet)
• Not Including a chainring

COMPATIBILITY:

Compatible with any of Ingrid chainrings and spindles

RELATED PRODUCTS:

• Ingrid MTN/Gravel Single Chainrings (Direct Mount / 32T, 34T, 36T, 38T, 40T, 42T)
• Ingrid Road/Gravel Spider (110 X 5 BCD Single and Double Chainrings)
• Ingrid Cassettes (12 Speed 10-48T, 11 Speed 10-46T)
• Ingrid MTN Derailleur (12 Speed: RD1-M12S)

CRANKSET LOCK RING TOOL

• Special tool useful for assembly the chainring lock ring
• Special price for bundle

100% MADE IN ITALY
