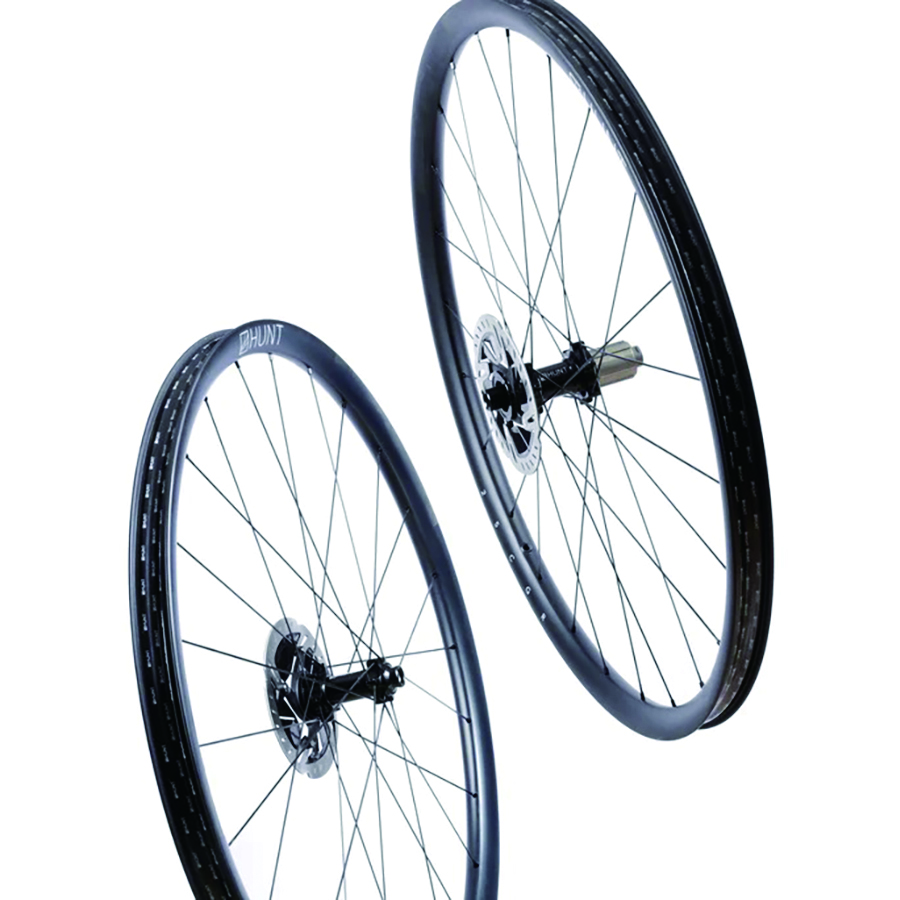

HUNT 25 CARBON GRAVEL RACE WHEELSET
A RACE-FOCUSED HOOKLESS GRAVEL WHEELS
25 DEEP | 33 WIDE EXT | 26 WIDE INT | 1,380G
THE PURPOSE
HUNT 25 Carbon Gravel Race wheelset은 최대한의 범용성과 매우 낮은 무게를 제공하기 위해 새롭게 2022년 개발된 모델로 더 가볍고 레이스용으로도 적합한 Sprint SL 단조 hubs가 사용되어 7.5도의 빠른 체결로 가볍고 빠른 그래블 라이딩이 가능하며 기술이 요하는 다양한 지형들을 레이싱하는데 적합하다. 컨트롤과 스피드 모두를 위해 디자인된 휠셋으로 가장 빠른 그래블 라이딩이 가능하게 한다. 오래 전부터 온오프로드에서의 tubeless technology를 지지했던 HUNT는 2016년 후크리스 림들을 개발하기 시작하였는데 이번 25 Carbon Gravel Disc rim을 개발하면서 림 무게 절감을 더욱 늘려 최종 림 무게가 385그램수준까지 낮추었다. 성능적인 이점들뿐 아니라 단순화된 생산공정으로 hookless rim은 낭비가 적어 생산원가 절감이 가능하여 소비자 가격 인하로 이어지게 된다. 튜브리스 ETRTO 규격의 hookless rim은 신뢰성높고 빠른 체결속도를 가진 Sprint SL 단조 hub와 하나로 체결되면서 어떠한 레이싱 상황에서도 준비가 되도록 해준다.
CHARACTERISTICS
ASYMMETRIC RIM PROFILE
강하고 매우 가벼운 비대칭 후크히스 림으로 림높이 25mm, 림 외부폭 33mm (내부폭 26mm)로 35-65mm tires에 최적화되어 있다. 튜브리스 림으로 보다 낮은 무게와 그룸저항과 펑크 방지 성능을 보여준다. 필요할 때 내구성과 컨트롤을 제공하며 25 Carbon Gravel Race의 비대칭 카본 림은 노면 대응성과 충격 저항성을 최우선으로 하여 개발되었기에 다양한 노면에서도 덜 걱정해도 된다.
HOOKLESS/STRAIGHT SIDE-WALL DESIGN
림높이 25mm와 외부림폭 33mm의 후크리스/평면사이드월 그리고 ETRTO 규격을 따르는 튜브리스 림으로 그래블 튜브리스 타이어와 호환되도록 디자인되었다.
SPRINT SL HUBS
완전히 새롭게 개발된 Sprint SL hub는 더 낮은 무게에 동일한 강성과 파워 전달력을 가져 직진성을 향상시킨 허브이다. 진다. 적용된 hub shell은 6066 series alloy로 낮은 6000 시리즈 알로이보다 더 높은 무게 대비 강성을 제공한다. 대구경의 15mm diameter hub axle이 적용되어 업힐과 댄싱시에 즉각적인 반응성을 발휘한다. 원형의 dropout interface step으로 확실한 장착성을 가진다.
FREEHUB BODY
3개의 treble-tooth pawl과 48 tooth ratchet ring으로 매우 인상적인 7.5도의 낮은 체결 각도와 무거운 하중에서도 탁월한 내마모멋을 가진다. 이 Sprint freehub는 강한 개별 pawl spring이 장착되어 일정한 체결성을 보여준다. Steel Spline Insert가 삽입되어 카세트로부터의 손상을 방지하는 탁월한 내구성을 지닌다.
SPOKES
최상급 Pillar의 강도가 증대된 PSR XTRA model로 butted blade aero spoke로 보다 가볍우면서도 더 오래 장력을 유지하고 피로도에 강한 더 높은 수준의 탄성을 가진다. PSR spoke는 스트레스를 집중적으로 받는 부위인 스포크 헤드부분의 폭을 2.2mm로 보다 강화하였고 니플은 6각 헤드로 보다 정밀한 텐션 조정이 가능하다. 모든 스포크는 수작업으로 조립되고 텐션조정되어 완성된다.
TIRE WIDTH OPTIMISATION
26mm의 내부 림폭을 가진 후크리스와 ETRTO 규격을 준수하는 튜브리스 림으로 튜브리스 타이어만을 위해 개발되었다. 일반 클린처 타이어는 사용할 수 없다.
ADAPTABILITY
15mm 전륜 TA을 제외한 현재 시장에서 제공하는 엑슬 표준 (axle standard)을 모두 지원하며 주문시 필요한 엑슬 종류를 기입하면 된다.
SPECIFICATIONS
A LIGHT, VERSATILE WHEELSET BUILT WITH RACE DAY IN MIND
IN THE BOX
보증기간: 3 YEARS
원산지: DESIGNED IN THE UK AND MADE IN TAIWAN
HUNT 25 CARBON GRAVEL RACE WHEELSET
A RACE-FOCUSED HOOKLESS GRAVEL WHEELS
25 DEEP | 33 WIDE EXT | 26 WIDE INT | 1,380G
THE PURPOSE
We crafted the new HUNT 25 Carbon Gravel Race wheelset to offer maximum versatility and exceptionally low weight. Laced to our lighter, race-ready Sprint SL hubs, offering rapid 7.5-degree engagement for light and fast gravel riding or racing across technical and varied terrain. Long-time advocates of tubeless technology for riding on and off road, HUNT’s development into hookless rims began back in 2016. With the 25 Carbon Gravel Disc rim development, we were able to push boundaries of rim weight-saving further, bringing the final rim weights to a mere 385g. As well as having that performance benefit, due to a simpler manufacturing process, hookless rims can be produced with less waste, resulting in a cost reduction which can be passed on to riders. A wheelset designed to offer control and speed for the fastest gravel rides. Tubeless, ETRTO compliant hookless rims, laced to a reliable, fast-engaging Sprint SL hub for a system ready to face any race day conditions.
CHARACTERISTICS
ASYMMETRIC RIM PROFILE
A strong and super-lightweight asymmetric hookless rim. The rim dimensions are 25mm deep and 33mm wide external (26mm internal) optimised for 35-65mm tires. Tubeless for lower weight, rolling resistance, and better puncture protection. Durability and control when you need it the most. The asymmetric rim profile on the 25 Carbon Gravel Race has been designed with compliance and impact resistance top of mind so you can worry less.
HOOKLESS/STRAIGHT SIDE-WALL DESIGN
25mm-deep and 33mm-wide external rim profile, featuring a hookless/straight-sidewall and ETRTO-compliant tubeless rim, designed for gravel tubeless tire compatibility.
FREEHUB BODY
Featuring 3x treble-tooth pawls and a 48 tooth ratchet ring results in an impressively low 7.5-degree engagement angle, and excellent resistance to wear under heavy loads. The Sprint freehub has strong individual pawl springs which drive a consistent engagement. There is also a Steel Spline Insert re-enforcement to provide excellent durability against cassette sprocket damage.
SPRINT SL HUBS
All-new Sprint SL hubs featuring the same strength and power transfer in a lower weight package, meaning more of your power pushing you forwards. The hub shell is 6066 series alloy, offering a greater strength-to-weight ratio than lower 6000 series alloys. Large 15mm diameter hub axles for climbing and out-of-saddle sprinting responsiveness. Circular dropout interface steps ensure a secure fitment.
SPOKES
We chose the top-of-the-range Pillar Spoke Re-enforcement PSR XTRA models. These butted blade aero spokes are lighter but also provide a greater degree of elasticity to maintain tensions longer and add fatigue resistance. PSR spokes feature the 2.2 width at the spoke head providing more material in this high stress area. The nipples come with a hex head so you can achieve precise tensioning. Combining these components well is key which is why all HUNT wheels are hand-built.
TIRE WIDTH OPTIMISATION
26mm internal rim profile, featuring a hookless and ETRTO-compliant tubeless rim, designed exclusively for tubeless tires.
ADAPTABILITY
Our wheels are futureproof. We can adapt your wheels to any current axle standard. You just need to let us know what you require by filling in the simple form on the confirmation page after checkout. Please note these wheels will not work with the older 15mm front road TA standard.
SPECIFICATIONS
A LIGHT, VERSATILE WHEELSET BUILT WITH RACE DAY IN MIND
IN THE BOX
WARRANTY 3 YEARS
DESIGNED IN THE UK AND MADE IN TAIWAN
