MCR 9 GRAVEL FRAME - RDO Carbon / Magic Carpet Ride
50mm of CVA suspension gives you confidence, comfort, and control on off-road excursions
“편안하고 안전하게 거친 비포장 노면을 달릴 수 있었다. 그렇지 않았다면 그래블 바이크를 거칠게 몰아부칠 일도 없었을 것이다. 하지만, 동시에 포장도로와 비포장도로 모두에서 편안하게 항속 라이딩 또한 할 수 있었다." BIKERUMOR EDITOR'S CHOICE 2019
MCR 9 RDO는 비포장도로에서 보다 나은 라이딩 체험을 선사하고자 하는 Niner Bike의 최초의 노력의 자연적인 연장선상에서 개발된 그래블 바이크이다. 이 바이크를 타면 당신은 보다 나은 승차감, 자신감, 컨트롤을 제공한다는 사실을 알게 된다. 고성능 서스펜션을 그래블에 적용함으로써 MCR 9은 그래블 라이더들이 한번도 생각해보지 않은 노면들을 더 높은 자신감과 콘트롤 감각으로 편안하면서도 힘차게 페달링할 수 있게 될 것을 믿는다. 그래블 바이크에 full suspension을 최초로 도입한 것에 대해 자긍심을 느낀다.
CHARACTERISTICS:
- 작은 충돌과 full travel을 모두 만족시키는 안정되면서도 나긋나긋한 50mm CVA suspension (Niner가 독자 개발한 Patent 등록된 Constantly Varying Arc (CVA) suspension system)
- 핸들바 리모트로 조정되는 리어 샥 잠금장치 및 포크 장금장치
- 단조 1 피스 링크로 연결된 RDO 카본 섬유 프레임과 후방 트라이앵글
- 일체형 후면 펜더가 보호해주는 suspension 부속품
- 프레임 가방, 물통 등을 위한 11개의 장착 포인트 제공
- 제거가능한 front derailleur 마운트로 1X와 2X 체인링 옵션 대응
- 내구성과 긴 수명을 가진 Enduro Max “Black Oxide” 피봇 베어링
- 700x50c와 650B x 2.0 타이어 대응하는 클리어런스
- 처음부터 끝까지 연결되는 Full Sleeve internal cable guides
- dropper post 라우팅과 일체형 frame protection
- front fox fork 별매 - Fox 32 Step-Cast Float Fit4 AX Performance Elite Evol Fork
RDO CARBON PROCESS
Niner RDO carbon fiber 제작 과정에는 Curing Process동안 external molds뿐만 아니라 단단한 internal molds를 사용한다. 이로 인하여 카본 섬유들이 더 압축되어 보다 단단하고 보다 일정하게 carbon layers를 가지게 되며 또한 완성된 프레임에서 레진이 고이는 현상을 현격하게 줄여 카본 튜브의 더 정밀한 일정한 두께를 가질 수 있게 한다. 이러한 보다 엄격한 제작 과정에서의 허용치는 무게 감소와 함께 보다 정련된 승차감과 강성과 내구성을 확보할 수 있게 해준다.
SPECIFICATIONS:
- Frame Mounts: 2 Inner Triangle Bottle Mounts, Rack and Fender Mounts, Accessory Mounts on Fork
- Rear Suspension Travel: 50mm
- Maximum Front Suspension: 50mm
- Shock Size: 160 X 20
- Shock Mounting Hardware: M8X22 (Top and Bottom)
- Suggested Shock Sag: 15-25% (Moves the O-Ring 3-5mm Down the Shock Shaft)
- Seatpost Size: 27.2mm
- Seat Collar Size: 31.8mm
- Cable Routing: Full Sleeve Internal, Di2 Compatible,
- Front Derailleur: Braze On (Removable Mount)
- Headset Size: 1.125" X 1.5" Tapered Zero Stack, Headset Included, 44mm Upper, 56mm Lower, Cane Creek Description: ZS44/28.6 ZS56/40
- Pivot Bearing Spec: Enduro Max
- Chaninring Compatibility: Standard 1X and 2X System
- Q-Factor: 168mm
- ISCG Compatibility: No
- Bottom Bracket Type: 68mm PF30 BB Shell (Adaptors Required for BSA Type BBS)
- Brake Mount Type: Rear 30mm Flat Mount; Front Post Mount (Varies by Fork)
- Maximum Rear Rotor Size: 160mm
- Rear Wheel Spacing: 12X142mm TA
- Front Wheel Spacing: 15X100mm TA
- Frame Clearance: Max 50C Tires
- Max Tire Clearance of Front Suspention Fork: Varies by Brand

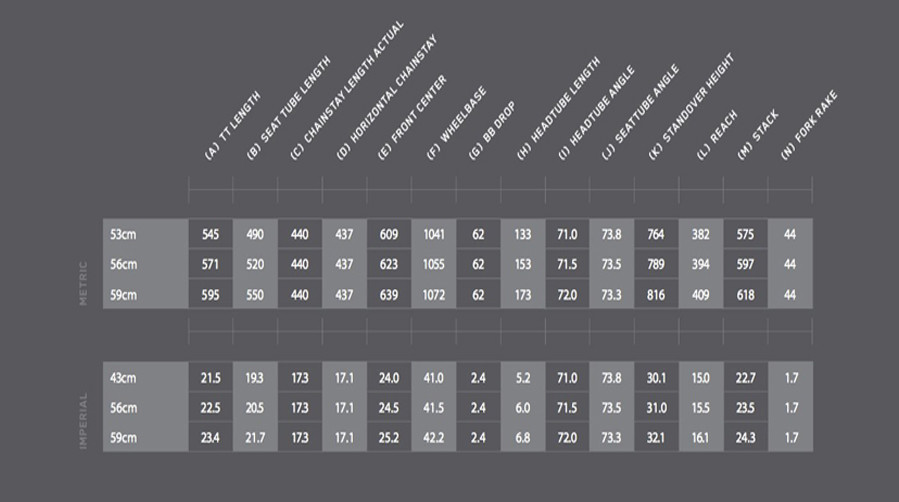

GEOMETRY:
WARRANTY: LIFETIME WARRANTY
MADE IN VIETNAM
MCR9 GRAVEL FRAMESET - RDO Carbon / Magic Carpet Ride
50mm of CVA suspension gives you confidence, comfort, and control on off-road excursions
“It lives up to the hype. I was able to comfortably and safely ride stuff I’d otherwise have no business tackling on a gravel bike. But I could also cruise along on the pavement and dirt roads.” BIKERUMOR EDITOR'S CHOICE 2019
MCR 9 RDO is a natural extension of our original effort for making riding on dirt a better experience. When you ride one, you’ll see. More comfort, more confidence, more control, and more fun and freedom. By adapting high performance suspension for gravel, we believe the MCR 9 will allow gravel riders to pedal comfortably, powerfully, with more control and confidence over once-unthinkable surfaces. We’re proud to be the pioneers bringing full suspension to gravel bikes.
CHARACTERISTICS:
- 50mm of stable yet supple CVA suspension with a refined curve for small bump performance and full travel.
- Rear shock lockout with handlebar remote; fork lockout.
- RDO carbon fiber main frame and rear triangle with forged, 1-piece linkages.
- Integrated rear fender protects suspension components.
- 11 fixed mounting points for frame bags, bottles, and more.
- Removable front derailleur mount, for 2x and 1x chainring options.
- Durable, long-lasting Enduro Max “Black Oxide” pivot bearings.
- Clearance for 700x50c and 650b x 2.0 tires.
- End-to-end, Full Sleeve internal cable guides including
- dropper post routing and integrated frame protection.
SPECIFICATIONS:
- Frame Mounts and Fittings: 2 Inner Triangle Bottle Mounts, Rack and Fender Mounts, Accessory Mounts on Fork
- Rear Suspension Travel: 50mm
- Maximum Front Suspension: 50mm
- Shock Size: 160 X 20
- Shock Mounting Hardware: M8X22 (Top and Bottom)
- Suggested Shock Sag: 15-25% (Moves the O-Ring 3-5mm Down the Shock Shaft)
- Seatpost Size: 27.2mm
- Seat Collar Size: 31.8mm
- Cable Routing: Full Sleeve Internal, Di2 Compatible,
- Front Derailleur: Braze On (Removable Mount)
- Headset Size: 1.125" X 1.5" Tapered Zero Stack, Headset Included, 44mm Upper, 56mm Lower, Cane Creek Description: ZS44/28.6 ZS56/40
- Pivot Bearing Spec: Enduro Max
- Chaninring Compatibility: Standard 1X and 2X System
- Q-Factor: 168mm
- ISCG Compatibility: No
- Bottom Bracket Type: 68mm PF30 BB Shell (Adaptors Required for BSA Type BBS)
- Brake Mount Type: Rear 30mm Flat Mount; Front Post Mount (Varies by Fork)
- Maximum Rear Rotor Size: 160mm
- Rear Wheel Spacing: 12X142mm TA
- Front Wheel Spacing: 15X100mm TA
- Frame Clearance: Max 50C Tires
- Max Tire Clearance of Front Suspention Fork: Varies by Brand
WARRANTY: LIFETIME WARRANTY
MADE IN VIETNAM
