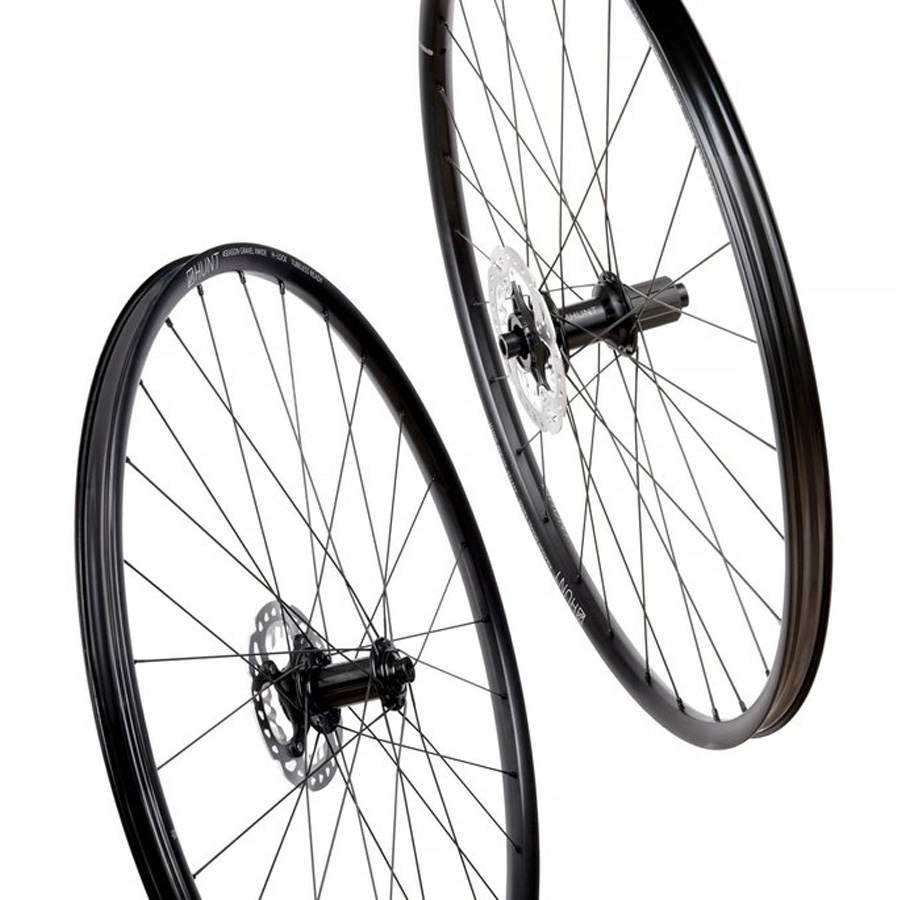

HUNT 4 SEASON GRAVEL DISC X-WIDE WHEELSET - Tubeless Ready
EVER-POPULAR 4 SEASON GRAVEL DISC WITH THE XTRA WIDE TREATMENT.
25MM RIM BED OPTIMISED FOR 35C+ TIRES, FOR PROPERLY BURLY OFF-ROAD HAMMERING.
AXLE OPTIONS - FRONT: QR, Bolt thru 12/15mm / REAR: QR, Bolt thru 12x142, 12x135, 10x135mm
19 DEEP | 29 WIDE EXT | 25 WIDE INT | 1,698G I RapidEngage 4-pawl of 10 degree engagement
"오차없는 정확한 사양대로 조립된 매우 높은 신뢰성과 활용성을 보여주는 그래블 라이딩에 최상의 휠셋이다." GRAVEL CYCLIST REVIEW
FEATURES
RIMS - 강하면서 가벼운 6061-T6 heat-treated rim으로 비대칭 형상 (asymmetric shape)을 가져 보다 높은 균형된 스포크 텐션을 오랜 시간 유지할 수 있다. 디스크 브레이크에 특화된 림 형상 (rim profile)으로 무게 대비 더 높은 강성을 제공한다. 림 외부폭은 29mm (25mm 내부폭)로 35mm이상의 광폭 타이어 장착하면 훌륭한 타이어 윤곽을 가지게 되어 탁월한 그립과 더 낮은 구름저항을 실현시켜준다.
SPOKES - Swedish Sandvik Stainless Steel T302 wire를 냉각 사출한 최고급 Pillar PSR spokes는 triple butted로 비용이 더 들지만 탁월한 승차감과 내구성을 지닌다. 이러한 최고급 Pillar Spoke Re-enforcement butted PSR XTRA model을 사용하여 더 가볍고 스포크 텐션과 피로저항성을 유지할 수 있는 더 높은 탄성을 제공한다. PSR J-bend spokes는 스트레스가 높은 헤드부분을 2.2mm 폭으로 강화하고 4각형 헤드를 가진 nipple가 적용되어 정밀한 텐션 조정이 가능하다.
NIPPLES - 최고급 스포크의 성능을 지원하기 위해서 Hunt 4 Season Wheels에는 brass nipples을 사용한다. 황동(brass)는 강하고 부식 저항성이 높으며 합금 니플들이 겨울철 염화칼슘에 의해 나사선이 부식되는 현상을 막아주는 self-lubricating 특성을 지닌다. 표준 4각 몸체와 함께 6각 헤드를 가지고 있어 정교한 텐션 조정이 가능하다.
RIM BED - H-Lock tubeless-ready rim bed profile이 적용되어 튜브리스 타이어 장착과 밀봉을 손쉽게 할 수 있다. 또한 H-Lock profile은 한번 장착한 후에 안정적으로 비드에 타이어가 안착되게 하며 이는 옾로드에서 더 낮은 타이어 공기압으로도 달릴 수 있도록 해준다.
BEARINGS - 베어링은 휠의 핵심이기에 더 많은 연구와 투자를 기울였고 그러기에 Japanese bearing EZO의 고품질 정밀 sealed cartridge bearings을 사용한다.
FREEHUB BODY - H_CERAMIK coating이 적용되어 탁월한 내구성을 제공하고 흔히 볼 수 있는 카세트 스프라켓으로부터 손상을 방지한다.
ADAPTABILITY - 현존하는 모둔 axle standard 사용이 가능하여 구매 시 사용하는 axle 종류를 제출하면 그에 맞는 adaptor가 함께 제공된다. 또한 centre-lock hubs를 기본으로 하면서 6 bolt adaptors를 함께 기본 제공한다.
TYRES - 튜브리스 타이어의 펑크 방지성능과 훌륭한 그립감을 제공하고자 모든 휠셋은 tubeless ready로 제공되며 이는 또한 기존 클린처 타이어와 튜브 장착도 가능하다.
SPECS OVERVIEW
Rims | 초광폭 림 (29mm 외부, 25mm 내부)으로 열처리된 Superlight Niobium 알루미늄 합금인 6066-T6 (+34% tensile strength vs 일반 알루미늄 림 소재 6061-T6)으로 만든 디스크 브레이크 전용림입니다. 균형된 스포크 텐션 유지와 매우 높은 내구성을 지닌 휠 빌딩을 위한 비대칭 림 (asymmetric rim)이다. 손쉽고 완전한 튜브리스 타이어 장착을 위한 H-Lock bead-seat 기술 적용. ETRTO 622x25.
Tires | 튜스리스 타이어 장착으로 가벼운 무게와 낮은 구름 저항성을 누릴 수 있으며 H_LOCK bead-seat 기술이 적용된 림으로 손쉽고 확실한 튜브리스 타이어 장착이 가능하다. 하지만 클린처 타이어와 튜브 장착도 가능하다. Maximum tire pressure는 클린처 타이어경우 120psi, 튜브리스 타이어경우 100psi이다. 타이어 사이즈에 따른 Maximum tire pressure는 30mm는 70psi까지, 33mm는 50psi까지, 35-45mm는 40psi, 46mm이상은 35psi이며 최대 타이어 공기압을 초과하여 주입하지 마세요.
Hubs | 강화된 베어링 쉬딩처리가 된 Disc J-bend spoke hubs이며 10도의 RapidEngage 4-pawl이 내장된 freehub는 H_CERAMIK coating으로 카세트로부터의 찝힘 현상을 방지해줍니다. SRAM XD and XDR Driver 선택 가능. Centre-lock disc mount, 6-bolt disc adaptors 기본 포함.
Axles | 모든 스루 엑셀 사이즈 지원되며 쉽게 교체가 가능; 앞바퀴 - QR, Bolt thru 12/15, 뒷바퀴 - QR, Bolt thru 12x142, 12x135, 10x135
Weight | 1,698g
Max Rider Weight I 짐을 포함한 최대 라이더 무게 허용치는 115kg이며 무게가 105Kg이 넘는 경우에는 정기적으로 미케닉의 휠 점검을 받을 것을 권장합니다. 28C 타이어를 사용하는 경우 100PSI를 넘지 않는 것이 휠셋에 부담을 주지 않습니다.
Max Tire Pressures I 클린처 타이어를 사용하는 경우 최대 공기압 허용치는 120psi이며 튜브리스 타이어경우에는 100psi이다. 로드에서 100 psi 공기압은 어떠한 라이더에게도 충분함을 넘어서는 공기압이다. 30mm 타이어의 최대 공기압은 80psi, 33mm경우 60psi, 35-45mm 타이어경우 40psi가 최대 허용치이며 허용치를 절대 초과하여 주입하지 마세요.
IN THE BOX
보증 기간: 3 YEARS
원산지: DESIGN IN THE UK AND MADE IN TAIWAN
HUNT 4 SEASON GRAVEL DISC X-WIDE WHEELSET - Tubeless Ready
EVER-POPULAR 4 SEASON GRAVEL DISC RECEIVES THE XTRA WIDE TREATMENT. 25MM RIM BED OPTIMISED FOR 35C+ TIRES, FOR PROPERLY BURLY OFF-ROAD HAMMERING.
19 DEEP | 29 WIDE EXT | 25 WIDE INT | 1,698G
"Built to exacting specifications and has proven to be a very reliable and flexible package that is perfect for gravel cycling." GRAVEL CYCLIST REVIEW
FEATURES
RIMS - A strong and lightweight 6066-T6 heat-treated rim features an asymmetric shape which is inverted from front to rear to provide balanced higher spoke tensions meaning your spokes stay tight for the long term. The rim profile is disc-specific, which allows higher-strength to weight as no reinforcement is required for a braking surface. The extra wide rim at 29mm (25mm internal) which creates a great tire profile with wider 35mm+ tires, giving excellent grip and lower rolling resistance.
RIM BED - H_LOCK tubeless-ready rim bed profile. H_LOCK is our tubeless-ready rim bed profile, with up-kicks to the shoulders of the tubeless steps. This helps to create a great rim-well seal for first installation and easy sealing of tubeless tyres. The H_LOCK profile also locks the beads in place more securely once seated. This is especially important when running lower pressures off road.
BEARINGS - Bearings are the heart of any wheel and investing in them makes huge sense so we went to Japanese bearing experts EZO and invested extra to spec their high-grade precision sealed cartridge bearings in our full range.
FREEHUB BODY - Durability is a theme for HUNT, as time and money you spend fixing is time and money you cannot spend riding or upgrading your bikes. This is especially important for a 4 Season bike you use regularly in harsh conditions. As a result, the freehub features our H_CERAMIK coating to provide excellent durability against cassette sprocket damage often seen on standard alloy freehub bodies.
SPOKES - We chose the top-of-the-range Pillar Spoke Re-enforcement PSR XTRA models. These butted blade aero spokes are lighter and provide a greater degree of elasticity to maintain tensions and add fatigue resistance. These PSR J-bend spokes feature the 2.2 width at the spoke head providing more material in this high stress area. The nipples come with a square head so you can achieve precise tensioning. Combining these components well is key, which is why all HUNT wheels are hand-built.
NIPPLES - To accompany these high-end spokes we selected brass nipples for our HUNT 4 Season wheels. Brass is strong and corrosion resistant plus it has self-lubricating properties to prevent issues that can arise from grit salt on the winter roads corroding the fine threads in alloy nipples. As well as the standard square body we chose nipples with a hex head so you can achieve precise tensioning.
ADAPTABILITY - Our wheels are seriously future-proof. We can adapt your wheels to any current axle standard on the market, you just need to let us know what are your requirements by filling in the simple form on the confirmation page after checkout.
TYRES - At HUNT, we enjoy the puncture resistance and grip benefits of tubeless on our every-day rides so we wanted to allow our customers the same option. Of course, all of our tubeless-ready wheels are designed to work perfectly with clincher tyres and inner tubes too.
SPECS OVERVIEW
THE WHEELSET THAT CAN TAKE YOU ANYWHERE, ANYTIME
Rims | Super-wide (29mm external, 25mm internal) 6066-T6 (+34% tensile strength vs 6061-T6) Heat treated. Disc specific. Asymmetric for balanced spoke tensions and a highly-durable wheel build. ETRTO 622x25. H-Lock bead-seat, for easy and secure tubeless installation.
Tires | Tubeless-ready for lower weight & rolling resistance, featuring H_LOCK bead-seat for easy and secure tubeless installation. Also works excellently with clincher tires and tubes.
Maximum tire pressure for this rim is 120psi when used with an inner tube and 100psi when running the wheel set-up tubeless. Maximum tire pressures for other tire sizes: 30mm do not exceed 70psi, 33mm do not exceed 50psi, 35-45mm do not exceed 40psi, 46mm+ do not exceed 35psi. 100psi is more than enough for any rider on road. Please do not exceed the maximum pressure stated on your tire.
Hubs | HUNT 4 Season Disc J-bend spoke hubs with extra bearing shielding. 10 degree RapidEngage 4-pawl freehub, with H_CERAMIK coating for enhanced durability. SRAM XD and XDR Driver available. Centre-lock disc mount, 6-bolt disc adaptors included.
Axles | Easily adaptable & we fit them for you. Fit all current axle sizes and are easy to change; Front - QR, Bolt thru 12/15, Rear - QR, Bolt thru 12x142, 12x135, 10x135.
Included | Tubeless tape & valves, spare spokes, spoke key, axle adapters (please fill in the simple form after checkout to select your required size), pair of 6bolt disc adapters.
Weight | 1,698g
Max Rider Weight I 115kgs is the upper recommended rider weight limit for these wheels. Please include the weight of any luggage in your total rider weight when choosing the correct wheels. If a rider is over 105Kgs then an experienced bike mechanic should check the wheel regularly and it is advisable to use tires minimum 28mm at max 100psi as this will reduce the fatigue on the wheelset.
Max Tire Pressures I Maximum tire pressure for this rim is 120psi when used with an inner tube and 100psi when running the wheel set-up tubeless. 100 psi is more than enough for any rider on road. Maximum tire pressures for other tire sizes 30mm do not exceed 80psi, 33mm do not exceed 60psi and 35-45mm do not exceed 40psi.
IN THE BOX
WARRANTY: 3 YEARS
DESIGN IN THE UK AND MADE IN TAIWAN
