HALEY RACE DISC TI - THE NEXT LEVEL UPGRADE TUBES

Oversized Ti Tubeset + Up to 32C Tire + T-47 BB

THE FRAME

Titanium은 오랜동안 극강의 내구성과 경량성 그리고 강성을 지닌 영원한 자전거 소재로 간주되어 왔다. 현재 자전거 소재로 Carbon이 대세를 이루고 있지만 우리는 Titanium이 그 못지 않은 라이딩 품질과 함께 Carbon은 보장할 수 없는 더 긴 수명과 내구성을 제공한다는 확신을 가지고 Haley Race Disc 프레임 세트를 준비하였다.

Haley Race Disc 프레임 세트가 추구하는 지향점은 아래와 같다.

• 빠르고 재미있는 로드 레이스 지오메트리 적용
• 페달링 파워와 토크를 가볍게 받아주는 경쾌함이 있는 oversized Ti tubeset 적용
• 자전거 전방의 탁월한 라이딩 품질과 체결성을 제공하는 Enve Carbon road fork 적용
• 소음없이 깔끔한 외관을 확보하기 위한 internal routing 적용
• 보다 나은 그립, 편안한 승차감 그리고 빠른 속도를 위한 클리어런스 확보 (32C 타이어까지 장착 가능)
• 완벽한 품질과 마감 확보를 위한 100% 미국 수제작

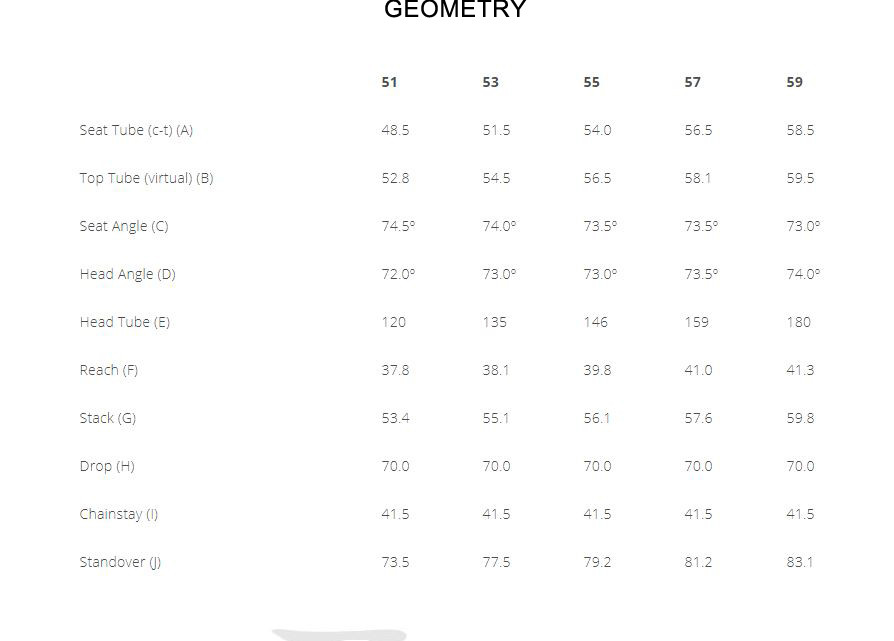

• 고객 편의와 요구를 대응하기 위한 5가지 기본 stock 및 커스텀 지오메트리 제공
• 추가 비용없는 옵션 제공: geometry, paint, additional bosses, fender/rack mounts
• 2가지 마감 옵션 제공: raw Ti finish + raw carbon Enve fork / paint option (Pantone 선택)

TECH SPECS

• US built oversized Titanium tube set 적용으로 수평과 뒤틀림 강성을 유지하여 탁월한 피드백과 직진 효율성 그리고 정교한 코너링 제공
• Dropped and curved stays 적용으로 노면 충돌 가능성을 낮추고 32c Continental GP tires (실측 33.5C)까지 광폭 타이어 장착 가능 지원
• Externally machined 44mm straight head tubes 적용으로 Chris King Inset headsets과 함께 더 다양한 tapered forks 사용 가능
• Enve Road Disc Fork 적용 - 43mm rake, 1-1/4” to 1-1/8” tapered, the new Mavic Speed Release (12mm thru axle with a quick release mechanism)
• Mechanical or electronic routing 선택 가능 - Electronic은 fully internally routed이며 mechanical은 external routing
• T-47 bottom bracket shell 적용 - 24mm 또는 30mm cranks 사용 가능하며 다른 어떤 threaded bracket shell이나 press fit option 보다 견고하고 문제가 없는 프레임 설계 가능. T-47 대구경 shell이 적용되어 electronic wiring을 내부화 가능
• Internally routed brake lines 적용 - "tubes" internal routing으로 호스를 끌어당기지 않고 단순히 밀어넣는 방식으로도 편리한 시공 가능
• Rear 12mm thru axle (with a DT Swiss 또는 Shimano thru axle)
• Flat mount disc mounts or Standard caliper brakes 적용

Ti TUBE OPTIONS

• The Icon Standard: 반응성이 매우 좋은 표준 튜브세트로 a road, all road, gravel, or hardtail 모두 제작이 가능하다. Forks, round oversized tubing, internal routing, an externally machined 44mm head tube, the threaded T47 bottom bracket shell이 기본으로 구성되며 finish, geometry, and personalized spec., straight or curved seat stays를 선택할 수 있다.
• The Next Level Upgrade: 생동감있는 버티드 테이퍼드 shaped tube set로 a road, all road, gravel, or hardtail 모두 제작된다. Your choice of forks, round oversized tubing, internal routing, an externally machined 44mm head tube, the threaded T47 bottom bracket shell이 기본으로 구성되며 finish, geometry, and personalized spec., straight or curved seat stays를 선택할 수 있다.

색상 선택

Pantone Number - www.pantone-colours.com

제품 구성 내용 (IN THE BOX)

• Painted Ti with an Painted Enve Carbon Road Thru Axle fork
• Mavic Speed Release front thru axle
• Shimano or DT rear thru axle
• a Thomson seat clamp

보증 기간: LIFETIME WARRANTY

원산지: HANDMADE IN USA

HALEY RACE DISC TI - - THE NEXT LEVEL UPGRADE TUBES

Oversized Ti Tubeset + Up to 32C Tire + T-47 BB

THE FRAME

Titanium has long been regarded as the “forever bike” material — extremely durable, yet lightweight, stiff, and strong. It’s got all the right buzzwords. But in a cycling world dominated by carbon, our opinion is that Titanium can provide as good a ride if not better, plus have the longevity and durability that can’t be guaranteed by carbon. There’s something truly lustworthy about a well built Ti frame. The Haley Race Disc represents a bike that just makes sense.

It’s a frame that we want to ride: a road race geometry to make it fast and fun; an oversized Ti tubeset to make it feel right under power and torque; the industry standard Enve Carbon road fork for the best front end ride quality and integrity; quiet  and clean internal routing; flat mount disc brakes; and room for 32’s for the best combination of grip, comfort, and speed.

Essentially it’s no nonsense, yet with the ideal blend of details to make the bike a pure blast to race or ride.

We weld all of our frames here in the USA. We offer five stock geometry sizes and two finish options, including a raw Ti finish with the raw carbon Enve fork, and a full paint option in the color of your choice with a painted to match fork. Further customizable options are available — all you need to do is ask and we’ll see if we can do it! Custom options are available at no extra charge: geometry, paint, additional bosses, fender/rack mounts.

TECH SPECS

• US built Ti with an oversized tube set. Keeps the frame laterally and torsionally stiff for excellent feedback, straight line efficiency, and cornering precision.
• Dropped and curved stays — allows for some bump compliance and the room for wider tire options. The bikes we’ve built have been running 32c Continental GP tires that actually measure 33.5c.
• Externally machined 44mm straight head tubes — allows for different tapered forks to be used, along with Chris King Inset headsets.
• Enve Road Disc Fork — comes with the frameset; 43mm rake, 1-1/4” to 1-1/8” tapered, with the new Mavic Speed Release (12mm thru axle with a quick release mechanism)
• Mechanical or electronic routing — your choice. Electronic is fully internally routed, and mechanical is external.
• T-47 bottom bracket shell — this oversized option allows you to use a threaded bottom bracket for either 24mm or 30mm cranks. We've found this to be superior to any other threaded or press fit option. The oversized shell also allows for keeping electronic wiring internal.
• Internally routed brake lines — our internal routing is also “tubed” meaning that you can push the hose through the frame without having to fish for it.
• Rear 12mm thru axle — comes with a DT Swiss or Shimano thru axle.
• Flat mount disc mounts or standard caliper brakes

Ti TUBE OPTIONS

• The Icon Standard: built with our super responsive standard tube set, this frame can be built as a road, all road, gravel, or hardtail. Your choice of forks, round oversized tubing, internal routing, an externally machined 44mm head tube, the threaded T47 bottom bracket shell, and your choice of finish, geometry, and personalized spec. Your choice of straight or curved seat stays.
• The Next Level Upgrade: built with our lively and spry butted, tapered, and shaped tube set, this frame can also be built as a road, all road, gravel, or hardtail. Your choice of forks, round oversized tubing, internal routing, an externally machined 44mm head tube, the threaded T47 bottom bracket shell, and your choice of finish, geometry, and personalized spec. Your choice of straight or curved seat stays.

COLOR SELECTION

Pantone Number - www.pantone-colours.com

IN THE BOX

• Painted Ti with an Enve Carbon Road Thru Axle fork
• Mavic Speed Release front thru axle
• Shimano or DT rear thru axle
• a Thomson seat clamp

LIFETIME WARRANTY

HANDMADE IN USA
