RLT 9 GRAVEL FRAMESET - Reynolds 853 Steel

RLT 9 GRAVEL FRAMESET - REYNOLDS 853 STEEL TUBING

오랜 동안 자전거 프레임 소재로 사랑받고 있는 스틸을 세밀하게 구성하여 다듬고 용접하여 탄생한  RLT 9 Steel 프레임은 흠잡을데 없는 형태와 기능의 결합으로 생동감있는 도전적 라이딩에 열려 있다.  패니어를 장착하고 캠핑도구를 랙을 걸고 투어링을 떠나거나 시야에서 굽이져 사라지는 비포장길을 따라 여행을 떠나든 RLT 9 steel 프레임은 모든 길에 열려 있다. 이러한 도전적인 라이딩을 위해서는 당신이 끊임없이 움직이기 위한 공학적으로 설계된 프레임이 필요하다. Niner RLT 9 steel 프레임은 성능, 내구성, 승차감이 하나로 결집된 프레임이다.

REYNOLDS 853 STEEL DZB TUBES AIR-HARDENED

왜 NINER는 Reynolds 853 steel을 사용하여 자전거를 제작하는가? Reynolds 853 steel은 carbon, manganese, chrome, molybdenum, silicon, copper가 환상적으로 혼합된 합금으로 유연하고 탄성이 뛰어난 라이딩 감각을 제공한다. 또한, 매우 내구성이 뛰어나며 신뢰성이 높아 장거리 라이딩에 자신감을 부여하기 때문이다. Reynolds 853 steel은 물이나 기름으로 급속냉각하는 전통적인 과정대신 공냉식 과정을 거침으로써 용접부위가 보다 강해지며 함몰이나 충격 저항성이 증가하고 더 얇은 두께로도 강도를 확보할 수 있기에 무게를 감량할 수 있으면서 피로도에도 강한 성격을 지닌다.  Niner에서는 Reynolds DZB (Double Zone Butted tubes)를 사용하는데 ATB (All Train Bicycles)와 29er frames에 적합한 튜브이다. 가운데 부분은 얇고 양쪽 끝 부분은 더 두꺼운 형태로 내부를 가공하여 엄격한 EN 피로도 테스트 기준을 통과하기 위해서 일반적으로 필요한 추가적인 철판을 덧대어 용접할 필요를 줄이거나 제외시킬 수 있다.

DESIGN

편의성과 호환성을 염두해두고 디자인된 RLT 9 Steel은 도전적인 라이딩을 위한 프레임 세트이다.  역사적인 Reynolds 853 tubing에 thru-axle technology, tapered headtube 등 현대적인 디자인 특성을 가미한 프레임 세트이다. 어떠한 노면도 정복할 수 있도록 1X, 2X, 3X 체인링 시스템 모두 장착이 가능하다.

BUILD DETAILS:

• 유연하고 신뢰성높은 Reynolds 853 Steel frame
• 부드러운 커스텀 Gravel-Tuned Niner Carbon Fork (15mm thru axle with rack mid mounts)
• Fork mounts: 45lbs weight limit
• Rear rack: 55lbs weight limit
• All-Day Adventure Tuned Geometry
• PF30 Bottom Bracket (Single or Geared)
• 3개의 Bottle Cage Mounts (Sport-Beer Compatible)
• Max Tyre Size: 700X45C OR 650X47C

TECHNICAL SPECIFICATIONS:

• 68mm PF30 BB Shell (BSA Type BBS용 어댑터 필요)
• 싱글스피드용 Biocentric 30 호환
• Internal Shifter Routing Ports (for Di2 and Seat Post Battery Routing)
• Axle type Fork: 15x100 mm TA  Axle type Frame: 12x142 mm TA
• Front Fender와 Rear Rack/Fender Mounts
• 27.2 Seat Post (400mm 길이 권장) / 29.6 Seat Collar
• 1.125" X 1.5" Tapered Zero Stack 헤드튜브 (44mm Upper, 56mm Lower)
• Cane Creek Description: ZS44/28.6 ZS56/40
• Flat Mount Disc Brake Only (30mm Rear)- 160mm MAX Rotor Size
• 142 X 12 Rear Spacing
• 2 Inner Tringle Bottle Mounts, 1 Mount Under Down Tube
• 1.75 inch Tire 장착 가능 (일부 브랜드 실제 타이어 폭 측정 필요)
• Standard 1X 2X and 3X Systems 호환
• 색상: Black Brozne
• 무게: 약 2,386 g (frame size L), 628 g (fork)

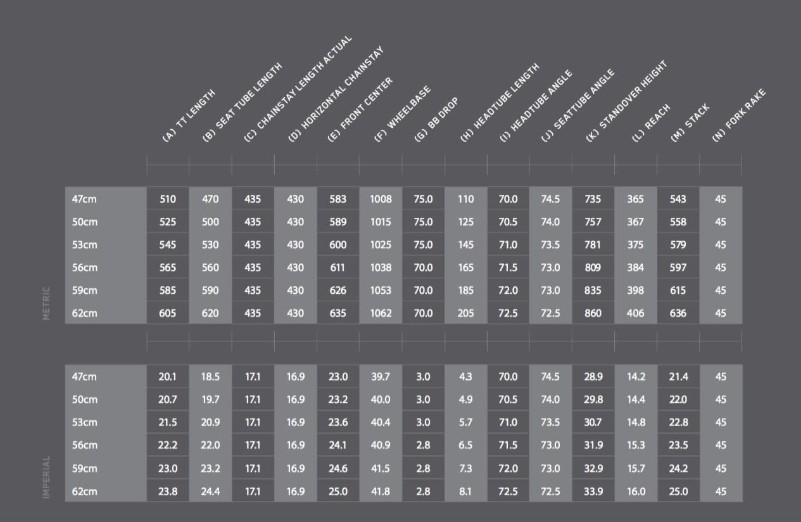

GEOMETRY:

제품 구성:

• 1x Niner RLT 9 steel frame
• 1x Niner RDO Garbon fork
• 1x tax rate
• 2x axle (front / rear)
• 1x switch
• 1x saddle clamp
• Mounting material

보증 기간: LIFETIME WARRANTY (구매자 + 제품 등록 필수)

원산지: MADE IN TAIWAN

RLT9 GRAVEL FRAMESET - REYNOLDS 853 STEEL

REDEFINE ADVENTURE ON THE RLT 9 STEEL

While other frame materials fall in and out of favor, steel stands the test of time. Finely constructed steel frames, crafted and welded by the best builders, have continued to be the benchmark other materials measure themselves against. The RLT9 Steel delivers a flawless synthesis of form and function into a frame that makes every ride open for adventure. From mounting panniers and racks for camping to traveling the gravel road that curves out of sight, the RLT9 is more than capable for the open road. You ride the road less traveled. Adventure calls for a well-engineered frame with technology capable of keeping you moving. The Niner RLT9 is where performance, durability, and ride quality meet. Adventure awaits.

DESIGN

The RLT 9 Steel was purpose built for adventure. Every consideration was made with convenience and compatibility in mind. We’ve blended the historic Reynolds 853 tubing with modern design characteristics utilizing thru-axle technology and a tapered steel headtube. To conquer any and all terrain, the RLT9 can accommodate either a double or triple chainring. If simplicity is your thing, a single ring is an option.

REYNOLDS 853 STEEL DZB TUBES AIR-HARDENED

Why is Niner building Reynolds 853 steel bikes? From early days, this magic amalgam of carbon, manganese, chrome, molybdenum, silicon, copper has yielded frame tubing with a supple, responsive ride quality that everyone loves. Plus, it’s super durable, ultra reliable, and inspires nothing but confidence for the long haul.

Lower weight but fatigue-resistance with thinner walls, increased dent and impact resistence, stronger in the weld area due to air-hardened process unlike in conventional steel alloys with the traditional quenching (fast collin in water or oil) process  We use Reynolds DZB, Double Zone butted tubes, which are particularly suitable for ATB and 29er frames. The thicker end sections with thinner mid-sections helps reduce or eliminate the gussets normally required to pass the stringent EN fatigue testing standards.

BUILD DETAILS:

• Supple, Trustworthy Reynolds 853 Steel frame
• Buttery-Smooth Custom Gravel-Tuned Niner Carbon Fork, 15mm thru axle with rack mid mounts
• Fork mounts: 45lbs weight limit
• Rear rack: 55lbs weight limit
• All-Day Adventure Tuned Geometry
• PF30 Can Go Single or Geared, Pick Your Pleasure
• Three Bottle Cage Mounts, Sport-Beer Compatible

TECHNICAL SPECIFICATION:

• 68mm PF30 BB Shell (Adaptors Required for BSA Type BBS)
• Compatible with Biocentric 30 for Singlespeed Use
• Internal Shifter Routing Ports are ready for Di2 and Seat Post Battery Routing
• Axle type Fork: 15x100 mm quick-release axle  Axle type Frame: 12x142 mm axle
• Front Fender and Rear Rack/Fender Mounts
• 27.2 Seat Post, 400mm Length Recommended / 29.6 Seat Collar
• 1.125" X 1.5" Tapered Zero Stack head Tube, 44mm Upper, 56mm Lower, Cane Creek Description: ZS44/28.6 ZS56/40
• Flat Mount Disc Brake Only (30mm Rear)- 160mm MAX Rotor Size
• 142 X 12 Rear Spacing
• All Sizes have 2 Inner Tringle Bottle Mounts, 1 Mount Under Down Tube
• Fit up to a 1.75 inch Tire (Tire Sizes vary by brand, some tires may not fit.)
• Compatible with Standard 1X 2X and 3X Systems
• Colors: Black Broze
• Weight: approx. 2386 g (frame size L), 628 g (fork)

DELIVERY:

• 1x Niner RLT 9 steel frame
• 1x Niner RDO Garbon fork
• 1x tax rate  2x axle (front / rear)
• 1x switch
• 1x saddle clamp
• Mounting material

MADE IN VIETNAM
