RLT 9 GRAVEL FRAMESET - Aluminium

NINER RLT 9 GRAVEL FRAMESET - HYDROFORMED ALUMINIUM

29인치와 700C 휠셋 장착이 가능한 첫번째 Niner Gravel Frameset (6061 Aluminum)

간단한 라이딩을 위해서 폭이 더 좁은 타이어를 장착한 휠셋을 장착하고, 불확실한 지역을 도전하기 위해서 보다 광폭의 타이어로 시도해볼 수 있는 다양한 상황에 대응가능한 프레임 세트이다.

HYDROFORMED TUBING AND CONSTRUCTION DETAILS

Niner의 이미 검증된 산악 자전거 프레임인 AIR 9와 유사한 튜브 형태로 Niner의 승차감 기준을 충족하도록 디자인되었다. 특허등록된 단조 dropouts은 무게를 줄이고 낮은 높이의 post brake mount와 chainstay가 결합하도록 해준다. 27.2mm seatpost는 노면의 비포장도로의 진동을 감소시켜 오랜 동안 라이딩에서 피로도를 줄여준다.

TECHNICAL SPECIFICATIONS:

• Fire Road Geometry - 보다 편한 장거리 라이딩을 위한 지오메트리 디자인 적용: 다소 긴 Chain Stays, 더 낮은 BB 위치, 더 누은 각도의 Head Tube angle
• 68mm PF30 BB Shell (BSA Type BBS 장착은 어댑터 필요)
• 싱글 스피드용 Biocentric 30 호환
• 낮은 높이의 disc brake post mount
• Internal Shifter Routing Ports (for Di2 and Seat Post battery routing)
• 커스텀 15mm gravel-tuned Niner carbon fork (with rack mid mounts)
• Front Fender and Rear Rack/Feder Mounts (총 26개의 마운트 홀 제공)
• 27.2 Seat Post (400mm 길이 권장) / 31.8 Seat Collar
• 1.125" X 1.5" Tapered Integrated (CAMPY Style) Head Tube, Headset Included, Cane Creek Description: IS42/28.6 | IS52/40
• Post Mount Disc Brake Only - 160mm MAX Rotor Size
• 100 X 12 Front TA / 142 X 12 Rear TA
• 2 Inner Triangle Bottle Mounts
• 700 X 50C 또는 650B X 2.0" Tire 장착 가능 (일부 브랜드 실제 폭 측정 필요)
• Standard 1X 2X and 3X Systems 호환
• Fork Rake 45mm
• Fork mounts: 45lbs weight limit
• Rear rack: 55lbs weight limit
• 무게: 1,562g (Size L, frame only)
• 색상: AZURE BLUE + BRONZE

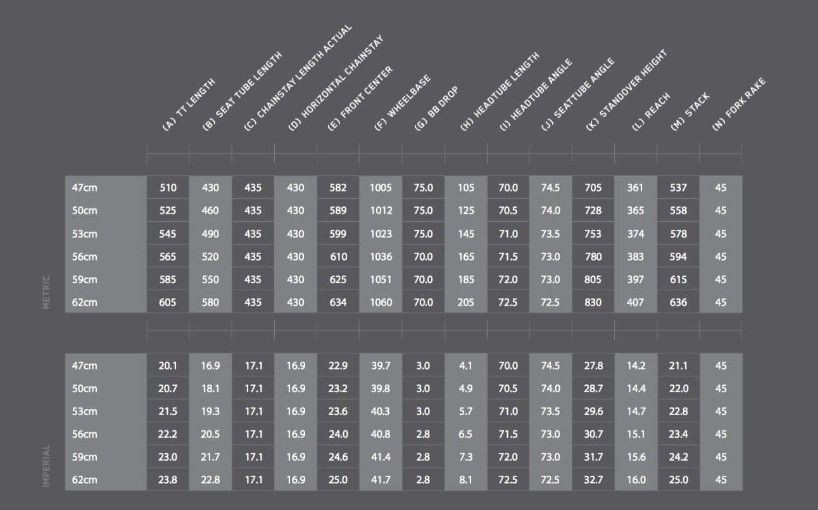

GEOMETRY:

제품 구성:

• 1x frames
• 1x fork with preparation for bottle holders
• 1x tax incl. Expander,
• 1x derailleur hanger,
• 1x floating axles 15x100mm (front)
• 1x floating axle 12x142 mm (rear)
• 1x Seatclamp
• installation material

보증 기간: LIFETIME WARRANTY (구매자 + 제품 등록 필수)

원산지: MADE IN VIETNAM

NINER RLT 9 GRAVEL FRAMESET - HYDROFORMED ALUMINIUM

The first Niner gravel frameset designed for both 29 and 700C wheels.

Run narrower wheels and tires for brief journeys away from the beaten path, try something bigger for places where terrain is uncertain but adventure is guaranteed.

HYDROFORMED TUBING AND CONSTRUCTION DETAILS

Designed with a tube set similar to the proven AIR 9, the RLT 9’s tube shapes are shaped to meet Niner’s ride quality standards. Even riders who prefer the company of saguaros to the cacophony of crowds appreciate comfort and low weight. Proprietary forged dropouts are designed to reduce weight and integrate the low-profile post brake mount with the chainstay. 27.2mm seatpost reduces road vibrations on gravel or chip seal roads and reduces body fatigue on all-day rides. When paired wit

TECHNICAL SPECIFICATION AND GEOMETRY

• Fire road geometry - slightly longer CS, lower BB and slacker HT angle
• 68mm PF30 BB Shell (Adaptors Required for BSA Type BBS)
• Compatible with Biocentric 30 for Singlespeed Use
• Low profile disc brake post mount
• Internal Shifter Routing Ports are ready for Di2 and Seat Post battery routing
• Custom 15mm gravel-tuned Niner carbon fork with rack mid mounts
• Front axle type : 15x100 mm axle  Rear axle type standard: 12x142 mm
• Front Fender and Rear Rack/Feder Mounts
• 27.2 Seat Post, 400mm Length Recommended
• 31.8 Seat Collar
• 1.125" X 1.5" Tapered Integrated (CAMPY Style) Head Tube, Headset Included, Cane Creek Description: IS42/28.6 | IS52/40
• Post Mount Disc Brake Only - 160mm MAX Rotor Size
• 100 X 12 Front TA / 142 X 12 Rear TA
• All Sizes Have 2 Inner Triangle Bottle Mounts
• Fit up to a 700 X 50C or 650b x 2.0" Tire (Tire Sizes Vary by Brand, Some Tires may not Fit)
• Compatible with Standard 1X 2X and 3X Systems
• Fork mounts: 45lbs weight limit
• Rear rack: 55lbs weight limit
• Weight: 1,562g (Size L, frame only)
• Colors: Azure Blue + Bronze

Delivery:

• 1x frames
• 1x fork with preparation for bottle holders
• 1x tax incl. Expander,
• 1x derailleur hanger,
• 1x floating axles 15x100mm (front)
• 1x floating axle 12x142 mm (rear)
• 1x Seatclamp
• installation material

MADE IN VIETNAM
