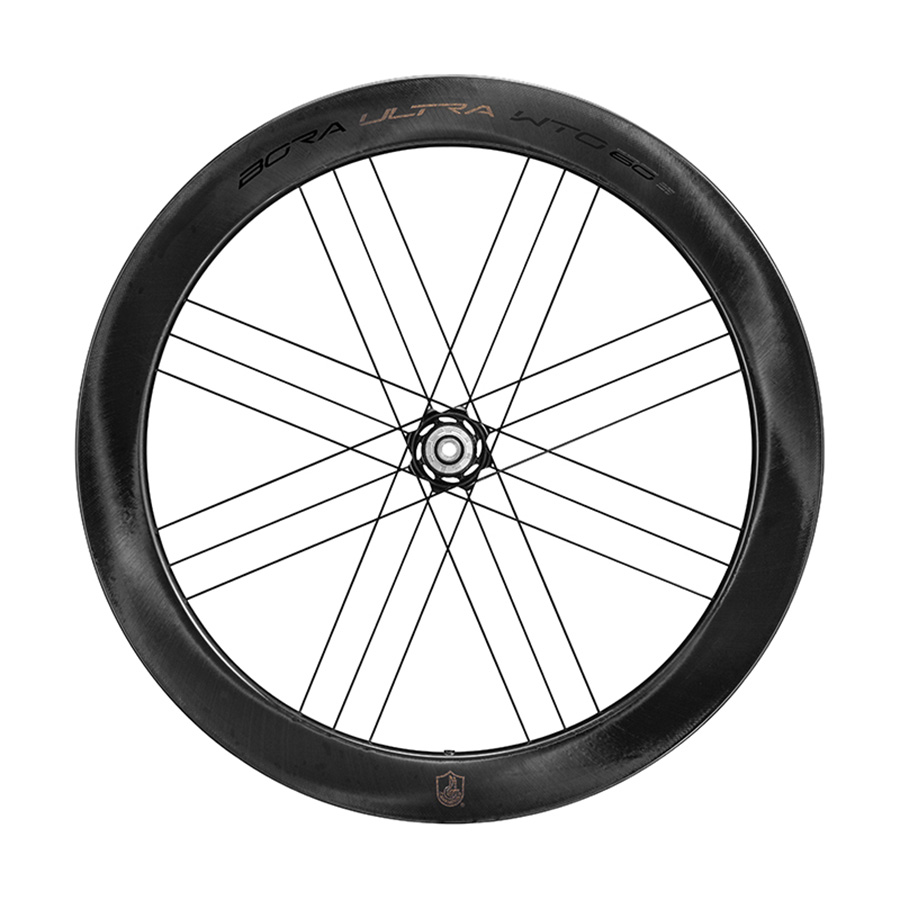

BORA ULTRA CARBON WTO 60 DISC WHEELSET - 2 WAY FIT / DARK LABEL
INTL W 19mm, ETNL W 26.1mm, Front Hub W 100mm, Rear Hub W 142mm, 1,530gram
Bora Ultra WTO 60 휠셋은 작은 페랑링 파워도 순전히 속도에 전환되도록 하기 위해 존재합니다. 인상적인 경량화와 효율은 경주에서의 완주에 이르게 할 뿐 아니라 우승에 이르헤 하는 극강의 무기입니다. 윈드터널테스트로 최적화된 첨단의 60mm 림 프로화일은 모든 조건에서 날까롭고 자신있는 핸들링을 제공합니다. 완전히 새로운 에어로 스포크와 림내부에 위치하는 니플은 드래그를 줄여주며 (aerodynamic drag) CULT 세라믹 베어링은 마찰을 최소화해줍니다. Campagnolo의 아름다운 몰드 카본 허브 바디는 경량의 알루미늄 허브 플렌지에 안전하게 결합되며 림 내부에 통합된 방사형 스포크 자리는 완벽한 정렬을 보장합니다. 모든 Bora Ultra wheel들은 림베드에 홀이 없어 튜브리스 타이어 장착시 림 테이핑이 필요없으며 림의 일체성과 뒤틀림 강성을 향상시켜줍니다. 이것은 스프린터, 롤러 그리고 타임트라이얼 선수들이 정말 바라는 바이기도 합니다. 2-Way Fit Rim은 23mm부터 튜브리스와 클린처 타이어 장착이 가능하며 공기역학적으로 최적의 타이어는 25mm입니다.
MAIN BENEFITS:
ULTIMATE AERODYNAMICS
- 라이딩 시간의 약 80%경우 라이더는 10~20도 사이의 바람 앵글을 마주하게 됩니다. Bora Ultra WTO 60 휠셋은 이러한 상황에서 드래그(drag: 전진하는 자전거를 뒤로 당기는 공기역학 효과)를 극복하는데 타의 추종을 불허합니다. 가끔은 세일링 효과(sailing effect)로 알려진 네거티브 드래그(negative drag)를 얻기도 합니다.
- 모래 시계 모양의 허브와 특별히 디자인된 허브 플렌지는 전면의 바람을 접하는 면적을 줄이고 추후에 이어질 수 있는 공기 터뷸런스를 줄여줍니다.
PERFECT ALIGNMENT
- 니플과 밸브 홀들을 림 내부에 성형하여 홀을 위한 드릴링 작업이 없습니다.
- 각 스포크 홀은 내부 니플 자리가 있으며 림의 카본층에 자리하고 있어 장착되는 특정 허브에 정확한 정렬을 할 수 있습니다.
- Aero Mo-Mag nipple은 각 스포크와 정확히 정렬되며 이는 보다 정교한 휠 빌딩을 가능하게 하여 홀 부위에 가해지는 스트레스를 줄여주고 피로수명을 증가시켜줍니다.
STOP AND GO
- 모든 신규 Bora Ultra WTO wheels은 AFS (centerlock compatible) 디스크 로터를 지원합니다.
- Campagnolo의 독특한 G3 spoke system은 각 허브의 주요 토크발생 원천을 중화합니다.
- CULT ceramic bearings은 Bora Ultra WTO hub가 표준 스틸 베어링보다 5 ½ 배 더 회전하도록 해줍니다.
- 대구경 36 tooth ratchet freehub는 빠르게 체결되면서 매우 내구성이 뛰어납니다. 또한 캄파놀로 N3W, 스램 XDR, 시마노 HG 프리허브 바디를 체결할 수 있습니다.
SPECIFICATIONS:
SPOKES
- 스포크: 24개 에어로 타원형, straight pull, 더블 버티드, 1.5mm
- 스포크 패턴: G3
- 니플: 알루미늄 에어로 Mo-Mag, 셀프 락킹, 림 내부 위치
VERSIONS AND WEIGHTS
- Campagnolo N3W
- Shimano HG body
- SRAM XDR body
- 휠셋 무게: 1.530 g (front 710 g / rear 820 g)
COMPATIBILITY
- Campagnolo sprocket set 11/12/13
- Shimano sprocket set 10/11 / SRAM 10/11
- SRAM 12 sprocket set
HUB
- 프론트 허브 타이크: 카본 바디 Bora Ultra
- 리어 허브 타이프: 알루미늄 바디, 36 tooth ratchet freehub
- 허브 폭: 전륜 100mm / 후륜 142mm
- 액슬 타이프: 12mm 알루미늄 스루액슬
- 베어링: CULT 세라믹 베어링 (cup and cone)
- 브레이크 인터페이스: AFS 디스크 로터
- 프리허브 호환성: 캄파놀로 N3W, 스램 XDR, 시마노 HG
RIM
- ASTM classification: 1
- 림 소재: H.U.L.C. UD 고강도 카본 파이버
- 표면 마감: C-LUX
- 타이어 인터페이스: 2-Way Fit
- 타이어 호환성: 튜브리스, 클린처 타이어
- 추천 타이어 사이즈: 23mm부터
- 림 높이: 60mm
- 내부 림폭: 19mm
- 외부 림폭: 26.1mm
- 데칼: 수전사 (Dark, copper shaded)
TYRES
ASSEMBLY
Bora™ Ultra WTO™ 60 Disc Brake wheel은 전문 Campagnolo® technician의 수작업으로 조립되며 100% 전자 계측기기로 검증되어 제조됩니다. 이러한 과정이 Campagnolo® wheel에 최대의 성능과 신뢰성을 부여합니다.
TECHNOLOGY:
CULT - CERAMIC ULTIMATE LEVEL TECHNOLOGY: 최대 성능을 위한 최대의 부드러움을 실현하는 세라믹 베어링
G3™ GEOMETRY: 단순한 외형을 넘어서는 새로운 차원의 휠 스포크 패턴
2-WAY FIT: 튜브리스와 클린처 타이어를 모두 장착할 수 있는 림형상
IN THE BOX:
- Bora Ultra WTO 60 Disc Wheelset
- 에어로 Mo-Mag 니플 유지보수 키트
- 튜브리스 밸브
- AFS 락링
- Campagnolo 휠 가방
- Campagnolo 악세사리 가방
- 타이어 레버
- Campagnolo N3W Z11 어댑터 (Campy 프리허브 모델 경우)
보증 기간: 3 YEARS
원산지: HAND MADE IN ITALY
BORA ULTRA CARBON WTO 60 DISC WHEELSET - 2 WAY FIT / DARK LABEL
INTL W 19mm, ETNL W 26.1mm, Front Hub W 100mm, Rear Hub W 142mm, 1,530gram
The Bora Ultra WTO 60 exists to turn every last watt in to pure speed. Its impressively light weight and efficiency ensure that you not only reach the finish in contention, but also have the ultimate tool to emerge victorious. The advanced, wind tunnel optimised profile of its 60mm deep carbon rim, promises sharp, confident handling in all conditions. All-new aero spokes with hidden nipples reduce aerodynamic drag, while CULT ceramic bearings minimise friction. Campagnolo’s beautifully moulded carbon hub body is securely bonded to a light aluminium hub flange, and integrated radial spoke seats ensure perfect alignment. As with all Bora Ultra wheels, the rim bed is undrilled, making tubeless installation simple, and seriously increasing the rim’s integrity and torsional rigidity. It’s a sprinter’s, rouleur’s and time triallist’s dream. The 2-Way Fit rim is suitable for tubeless, tubeless-ready or clincher tyres in widths from 23mm, but is aerodynamically optimised for 25mm tyres.
MAIN BENEFITS:
ULTIMATE AERODYNAMICS
- Around 80% of the time in the saddle, riders typically encounter wind angles of between 10 and 20 degrees, and the Bora Ultra WTO 60 is unequalled at overcoming drag in this situation, occasionally yielding negative drag, also known as the sailing effect.
- The hub’s hourglass shape and specially designed flanges reduce its frontal area and subsequent turbulence.
PERFECT ALIGNMENT
- Campagnolo mould the nipple and valve holes into the rims, so no carbon fibres are cut by drilling
- Each spoke hole has an internal nipple seat, wrapped into the rim’s carbon layup, which is specifically aligned to the intended hub
- Aero Mo-Mag nipples are perfectly aligned with each spoke for a more accurate wheel build, with reduced localised stress and improved fatigue life.
STOP AND GO
- All of the new Bora Ultra WTO wheels are designed for AFS (centerlock compatible) disc rotors.
- Campagnolo’s unique G3 spoke system counteracts the main source of torque at each hub.
- CULT ceramic bearings keep the Bora Ultra WTO hubs spinning freely for 5 ½ times than standard steel bearings.
- Oversized 36 tooth ratchet freehub is fast to engage and very durable, plus it accepts N3W, XDR, HG freehub bodies.
SPECIFICATIONS:
SPOKES
- Spokes: 24 Aero Elliptical, straight pull, double-butted 1.5mm
- Spoke pattern G3
- Nipples Aluminium Aero Mo-Mag, self-locking, internal
VERSIONS AND WEIGHTS
- Campagnolo N3W
- HG body
- XDR body
- 1.530 g (front 710 g / rear 820 g)
COMPATIBILITY
- Campagnolo sprocket set 11/12/13
- Shimano sprocket set 10/11 - SRAM 10/11
- SRAM 12 sprocket set
HUB
- Front hub type: Bora Ultra, carbon body
- Rear hub type: Aluminium body, 36 tooth ratchet freehub
- Hub width: 100-142mm
- Axle type: 12mm aluminium thru axle
- Bearings: CULT ceramic, cup and cone
- Brake interface: AFS disc
- Freehub compatibility: N3W, XDR, HG
RIM
- ASTM classification: 1
- Material: H.U.L.C. UD high-strength carbon fibre
- Finish: C-LUX
- Tyre interface: 2-Way Fit
- Tyre compatibility: Tubeless, tubeless-ready, clincher
- Recommended tyre size: 700c, from 23mm
- Rim height: 60mm
- Internal width: 19mm
- External width: 26.1mm
- Decals: Water transfer DCS (Dark, copper shaded)
TYRES
- Tubeless
- Tubeless-ready
- Clincher
ASSEMBLY
The Bora™ Ultra WTO™ 60 Disc Brake wheel is entirely hand-assembled by a specialised Campagnolo® technician and is 100% checked by electronic instrumentation. This procedure ensures that every single Campagnolo® wheel offers maximum performance and reliability
TECHNOLOGY:
CULT - CERAMIC ULTIMATE LEVEL TECHNOLOGY: Maximum Smoothness for Maximum Performance
G3™ GEOMETRY: reinvent the wheel, not just its look
IN THE BOX:
- Bora Ultra WTO 60 Disc Wheelset
- Aero Mo-Mag nipple maintenance kit
- Tubeless valves
- AFS lockrings
- Campagnolo wheel bags
- Campagnolo accessories bag
- Tyre levers
- Campagnolo N3W Z11 adapter (on Campy freehub version).
WARRANTY: 3 YEARS
HAND MADE IN ITALY
