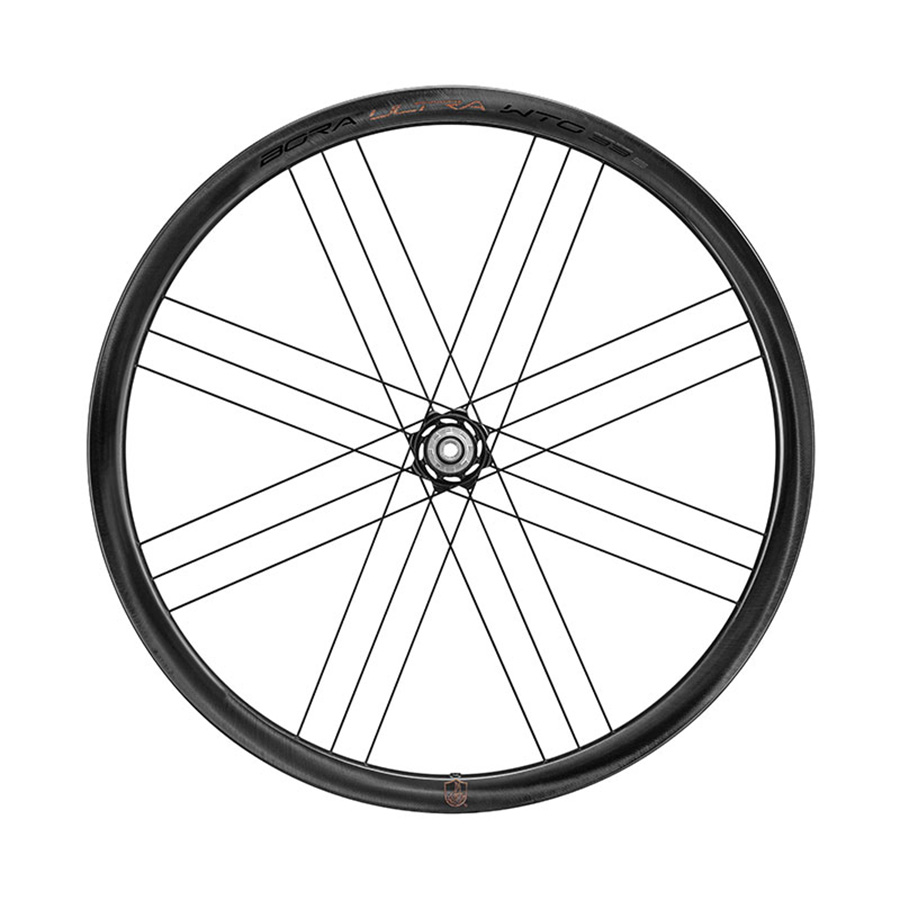

BORA ULTRA CARBON WTO 33 DISC WHEELSET - 2 WAY FIT / DARK LABEL
INTL W 21mm, ETNL W 27.4mm, Front Hub W 100mm, Rear Hub W 142mm, 1,385gram
Bora Ultra WTO 33 휠셋은 새로 발매된 Ultra 시리즈에서 가장 낮은 wind tunnel optimised (WTO) rim profile을 가집니다. 모든 외부 부품들이 공기역학 효율을 최대화하고 무게를 감량하여 에너지 효율을 올릴 수 있도록 새롭게 디자인되었습니다. 보다 빠르게 정상이 이르고 순간적으로 페이스를 변경하고 보다 높은 속도와 자신감으로 다운힐을 내려올 수 있어 업힐 클라이머들은 Bora Ultra WTO 33 휠셋의 경량을 사랑할 것입니다. 캄파놀로의 Hand Made Ultra-Light Carbon (H.U.L.C.) 림이 적용되어 거울같은 고급스런 Campagnolo's mirror-like Luxury (C-LUX) 표면을 가지며 림홀없는 2-Way Fit 림베드로 림테이핑없이 튜브리스 타이어를 장착할 수 있습니다. Campagnolo의 아름다운 몰딩 카본 파이버 전륜 허브 바디는 모래시계 형상으로 공기역학을 증가시켰으며 경량 알루미늄 허브 플렌지에 확실하게 결합되어 있습니다. 통합된 방사형의 스포크 체결부위는 완벽한 정렬, 숨겨진 에어로 Mo-Mag 니플들 그리고 G3 spoke pattern을 가진 더 가느다란 에어로 타원형 스포크를 가지고 있어 성능을 향상시킵니다. 또한 CULT 세락믹 베어링은 거의 마찰이 없는 구름성을 약속합니다. 36 tooth ratchet system을 가진 후륜은 캄파놀로 N3W, 스램 XDR 또는 시마노 HG 프리허브 바디로 체결이 가능합니다.
MAIN BENEFITS:
WIDER AND FASTER
- 완전히 새롭게 디자인된 Bora Ultra WTO 33 rim은 21mm 내부 림폭으로 25mm 타이어부터 호환되어 공기역학적으로 최적화됩니다.
- Bora Ultra WTO 33 휠셋의 2-Way Fit Rim은 ETRTO 튜브리스 표준을 지원하며 클린처 타이어도 장착이 가능합니다.
- 더 넓은 림에 더 넓은 타이어를 장착하게 되어 더 높은 공기 부피와 사이드월 지지력 그리고 튜브리스 경우 낮은 공기압에서도 자신있게 사용이 가능하며 이 경우 향상된 그립력, 조향성, 승차감 그리고 낮은 피로도를 제공합니다.
AERODYNAMIC DETAILS
- 더 슬림한 허브 바디 중앙 부위로 바람을 대하는 부위를 줄였습니다.
- 24개 더블 버티드 에어로 타원형 스포크는 1.6mm에서 1.5mm로 지름이 감소하였습니다.
- 새로운 에어로 Mo-Mag 니플은 림 내부에 숨어 있어 림외부 공기흐름을 방해하지 않으면서도 손쉽게 니플 조정이 가능합니다.
STOP AND GO
- 모든 신규 Bora Ultra WTO wheels은 AFS (centerlock compatible) 디스크 로터를 지원합니다.
- Campagnolo의 독특한 G3 spoke system은 각 허브의 주요 토크발생 원천을 중화합니다.
- CULT ceramic bearings은 Bora Ultra WTO hub가 표준 스틸 베어링보다 5 ½ 배 더 회전하도록 해줍니다.
- 대구경 36 tooth ratchet freehub는 빠르게 체결되면서 매우 내구성이 뛰어납니다. 또한 캄파놀로 N3W, 스램 XDR, 시마노 HG 프리허브 바디를 체결할 수 있습니다.
SPECIFICATIONS:
SPOKES
- 스포크: 24 에어로 타원형, straight pull, 더블 버티드 1.5mm
- 스포크 패턴: G3
- 니플: 알루미늄 에어로 Mo-Mag, 셀프 잠김 기능, 림 내부 위치
VERSIONS AND WEIGHTS
- Campagnolo N3W FW body
- Shimano HG FW body
- SRAM XDR FW body
- 휠셋 무게: 1.385 g (front 640 g / rear 745 g)
COMPATIBILITY
- Campagnolo sprocket set 11/12/13
- Shimano sprocket set 10/11 / SRAM 10/11
- SRAM 12 sprocket set
HUB
- Front: 카본 바디 Bora Ultra
- Rear: 알루미늄 바디 36 tooth ratchet freehub
- 허브 폭: 전륜 100mm / 후륜 142mm
- 액슬 타입: 12mm 알루미늄 스루액슬
- 베어링: CULT 세라믹 (cup and cone)
- 로터: AFS 디스크 로터
- 프리허브 호환성: 캄파놀로 N3W, 스램 XDR, 시마노 HG
RIM
- ASTM classification: 1
- 림 소재: H.U.L.C. UD 고강도 카본 파이버
- 표면 마감: C-LUX
- 타이어 인터페이스: 2-Way Fit
- 타이어 호환성: 클린처, 튜브리스 타이어
- 추천 타이어 사이즈: 25mm 이상 700c 타이어
- 림 높이: 33mm
- 림 내부폭: 21mm
- 림 외부폭: 27.4mm
- 데칼: 수전사 (Dark, copper shaded)
TYRES
ASSEMBLY
Bora™ Ultra WTO™ 33 Disc Brake whee은 전문 Campagnolo® technician에 의해 수제작되며 100% 전자 계측기기로 품질 검증을 거쳐서 제조됩니다. 이러한 과정으로 모든 Campagnolo® wheel에 최대의 성능과 신뢰성을 제공합니다.
IN THE BOX:
- Bora™ Ultra WTO™ 33 Disc Brake wheel
- Aero Mo-Mag nipple 유지보수 키트
- 튜브리스 밸브
- AFS 락링
- Campagnolo 휠 가방
- Campagnolo 악세사리 가방
- 타이어 레버
- Campagnolo N3W Z11 어댑터 (Campy freehub 버전 경우)
보증 기간: 3 YEARS
원산지: HAND MADE IN ITALY
BORA ULTRA CARBON WTO 33 DISC WHEELSET - 2 WAY FIT / DARK LABEL
INTL W 21mm, ETNL W 27.4mm, Front Hub W 100mm, Rear Hub W 142mm, 1,385gram
At only 33mm deep, the Bora Ultra WTO 33 has the shallowest wind tunnel optimised (WTO) rim profile of the new Ultra family. Every external component of the wheel has been redesigned to maximise aerodynamic efficiency and reduce weight, saving you precious energy, and generating greater speed from the same rider input. Climbers will love the Bora Ultra WTO 33’s lower weight, helping them to reach the heights even faster, change pace instantly, and descend with great speed and confidence. Built using Campagnolo’s Hand Made Ultra-Light Carbon (H.U.L.C.), the rims have Campagnolo’s mirror-like Luxury (C-LUX) finish, and undrilled 2-Way Fit rim beds, for perfect tubeless compatibility without rim tape.
Campagnolo’s beautifully moulded carbon fibre front hub body is hourglass shaped to improve aerodynamics, and is securely bonded to a light aluminium hub flange. Integrated radial spoke seats ensure perfect alignment, hidden Aero Mo-Mag nipples and slimmer Aero Elliptical spokes in Campagnolo’s G3 spoke pattern further enhance performance, and its CULT ceramic bearings promise almost frictionless rotation. The aluminium rear with 36 tooth ratchet system can be driven by N3W, XDR or HG freehub bodies.
MAIN BENEFITS:
WIDER AND FASTER
- The completely redesigned Bora Ultra WTO 33 rim now has a 21mm internal width, and is compatible with tyres from 25mm, aerodynamically optimised for this starting compatible tyre dimension.
- The Bora Ultra WTO 33 2-Way Fit rim meets ETRTO tubeless standard for fast-rolling tubeless tyre fitment, and is also suitable for tubeless-ready and clincher tyres too.
- Wider tyres on wider rims create greater air volume and better sidewall support, and especially when tubeless, can confidently be used at reduced pressures, improving grip, control and comfort, and lessening fatigue without affecting speed.
AERODYNAMIC DETAILS
- The hub bodies are slimmer in the centre to reduce the frontal area they present to the wind.
- The 24 double butted Aero Elliptical spokes in each wheel have reduced from 1.6mm to 1.5mm in diameter.
- New Aero Mo-Mag nipples are hidden inside the rim to clean up the airflow over them, and are still easily adjustable.
STOP AND GO
- All of the new Bora Ultra WTO wheels are designed for AFS (centerlock compatible) disc rotors.
- Campagnolo’s unique G3 spoke system counteracts the main source of torque at each hub.
- CULT ceramic bearings keep the Bora Ultra WTO hubs spinning freely for 5 ½ times than standard steel bearings.
- Oversized 36 tooth ratchet freehub is fast to engage and very durable, plus it accepts N3W, XDR, HG freehub bodies.
SPECIFICATIONS:
SPOKES
- Spokes: 24 Aero Elliptical, straight pull, double-butted 1.5mm
- Spoke pattern: G3
- Nipples: Aluminium Aero Mo-Mag, self-locking, internal
VERSIONS AND WEIGHTS
- Campagnolo N3W FW body
- HG FW body
- XDR FW body
- 1.385 g (front 640 g / rear 745 g)
COMPATIBILITY
- Campagnolo sprocket set 11/12/13
- Shimano sprocket set 10/11 - SRAM 10/11
- SRAM 12 sprocket set
HUB
- Front: Bora Ultra,carbon body
- Rear: Aluminium body, 36 tooth ratchet freehub
- Hub width: 100-142mm
- Axle type: 12mm aluminium thru axle
- Bearings: CULT ceramic, cup and cone
- Brake interface: AFS disc
- Freehub compatibility: N3W, XDR, HG
RIM
- ASTM classification: 1
- Material: H.U.L.C. UD high-strength carbon fibre
- Finish: C-LUX
- Tyre interface: 2-Way Fit
- Tyre compatibility: Tubeless, tubeless-ready, clincher
- Recommended tyre size: 700c, from 25mm
- Rim height: 33mm
- Internal width: 21mm
- External width: 27.4mm
- Decals: Water transfer DCS (Dark, copper shaded)
TYRES
- Tubeless
- Tubeless-ready
- Clincher
ASSEMBLY
The Bora™ Ultra WTO™ 33 Disc Brake wheel is entirely hand-assembled by a specialised Campagnolo® technician and is 100% checked by electronic instrumentation. This procedure ensures that every single Campagnolo® wheel offers maximum performance and reliability
IN THE BOX:
- Aero Mo-Mag nipple maintenance kit
- Tubeless valves
- AFS lockrings
- Campagnolo wheel bags
- Campagnolo accessories bag
- Tyre levers
- Campagnolo N3W Z11 adapter (on Campy freehub version)
WARRANTY: 3 YEARS
HAND MADE IN ITALY
