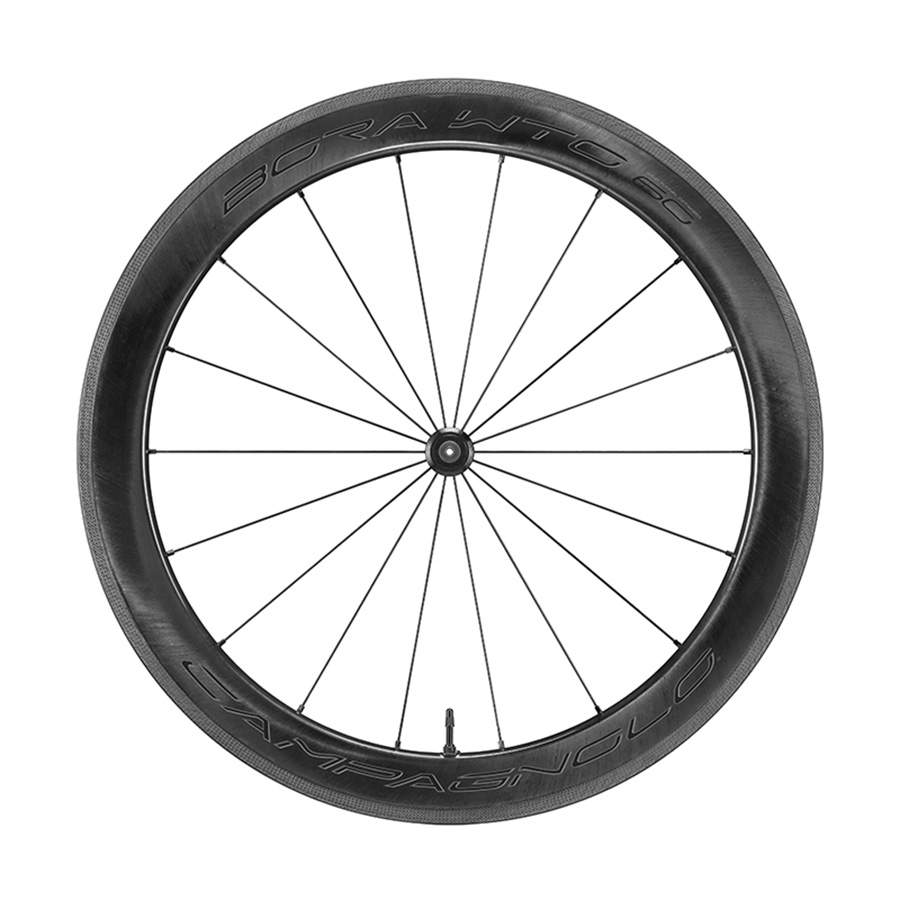

BORA CARBON WTO 60 WHEELSET - 2 WAY FIT
ITNL W 19mm, H 60mm, Front Hub W 100mm, Rear Hub W 130mm, 1,547gram
새로운 Bora WTO 60 휠셋으로 구름저항을 줄이고 공기역학 성능을 최대화하는 차원에서 가장 효율적인 휠셋을 개발하는데 집중하였다. 새로운 Bora WTO 60 휠셋은 공기역학 효율성에서 새로운 기준들을 세우는 독점적인 디자인 특성들을 가지고 있으며 시속 40킬로미터 이상의 평속을 요구하는 코스에서 선택되어야만 하는 휠셋으로 개발되었습니다.
MAIN BENEFITS:
THE MOST AERODYNAMIC
- 바람 앵글이 12°~19° 사이에서 최대의 공기역학 성능을 발휘하여 트라이애슬론 선수들에게 추진력을 제공합니다.
- 허브 중앙의 유선형의 디자인 (streamlined design) 적용으로 바람에 직면하는 정면의 면적을 줄여주고 허브 가장자리의 특별한 디자인으로 허브 주변의 난기류 발생을 줄여줍니다.
- 18개의 전륜 스포크와 21개의 후륜 스포크를 가진 타원형의 에어로 교차구역은 훨씬 탁월한 구름 저항성을 보여줍니다.
FAST AND FLUID
- 잘 알려진 USB cup-and-cone bearing system로 세라믹 베어링의 탁월한 부드러움을 보증합니다.
- 2-Way Fit Rim Profile로 clincher 또는 가장 낮은 구름 저항을 가지는 tubeless 타이어 모두 사용이 가능합니다.
- 19 mm 내부 림폭으로 23, 25, 28mm 타이어를 장착하면 최적의 림과 타이어 형상을 가지게 됩니다.
THE CHOICE OF CAMPAGNOLO
- 에어로 다이내믹이 적용된 림임에도 Campagnolo의 주행성이 45 mm profile로 향상되었습니다.
- 에너지 손실을 줄여주는 휠 구조로 페달링 파워가 휠 회전으로 온전히 전달되도록 해줍니다.
- 60mm profile과 1,547g의 무게로 40km/h 이상의 속도로 달리는 평지 코스에 이상적입니다.
SPECIFICATIONS:
SPOKES
- 전륜 레디얼 패턴의 18 steel spokes
- 후륜 G3 패턴의 21 steel spokes
- 전륜 레디얼 스포크에 적용된 회전 방지 기술
VERSIONS AND WEIGHTS
- Bright Label
- Dark Label
- 2-Way Fit 휠셋 무게: 1,547 gram
COMPATIBILITY
- Campagnolo sprocket set 10/11/12
- Shimano sprocket set / SRAM 10/11
- SRAM 12 sprocket set
HUB
- 블랙 알루미늄 허브
- USB 세라믹 cup-and-cone bearing system
- Hub edge: 전륜 100mm / 후륜 130mm
- Pivot material: 알루미늄
RIM
- 림높이: 45 mm
- Rim material: 카본
- Rim cross section (H x W): 림높이 60mm / 림외부폭 26.5mm
- 림내부폭: 19 mm
- 브레이크 림표면 AC3 technology 적용
- 수전사 그래픽 (Water Transfer graphic)
TYRES
ASSEMBLY
Bora™ WTO 60 wheel은 전문 Campagnolo® technician에 의해 수제작되며 전자 장비로 100% 품질 검증을 거쳐 생산됩니다. 따라서 이러한 제조과정은 Campagnolo® 휠셋에 최대의 성능과 신뢰성을 제공합니다.
TECHNOLOGY:
IN THE BOX:
- BORA WTO 60 Wheelset
- 젖은 노면 40%, 마른 노면 20% 브레이킹 성능이 향상된 특별 브레이크 패드 키트 (red compound)
- 공기역학적이고 빛나는 마감을 가진 경량 Quick Release
- 44mm 튜브리스 밸브와 40mm 밸브 익스텐더
- 밸브 홀 사이즈 줄여주는 부싱
- 타이어 제거 레버 2개
- 사용자 매뉴얼
보증 기간: 3 YEARS
원산지: HAND MADE IN ITALY
BORA CARBON WTO 60 WHEELSET - 2 WAY FIT
ITNL W 19mm, H 60mm, Front Hub W 100mm, Rear Hub W 130mm, 1,547gram
With the new Bora WTO 60, Campagnolo has focused on producing the most efficient wheels possible in terms of decreasing rolling resistance as the cyclist moves and maximising aerodynamic efficiency. The acronym WTO - WIND TUNNEL OPTIMIZED – calls to mind the environment that the team of Campy Tech Lab engineers worked in to meet these challenging project objectives. The new Bora WTO 60 wheels feature exclusive design characteristics that establish new standards in aerodynamic efficiency. Directly from the wind tunnel to the market, the pair of Bora WTO 60 wheels is destined to become the necessary choice every time a cyclist faces a route that requires average speeds of more than 40 km/h.
MAIN BENEFITS:
THE MOST AERODYNAMIC
- The rim design enables the maximum amount of aerodynamic penetration when the wind angle is between 12° and 19°, making it a thrust for triathlon athletes.
- The streamlined design of the central part of the hub decreases the frontal area of the component whilst the special design of the flanges favours airflow detachment.
- The 18-spoke elliptical cross section in the front and 21-spoke rear cross section in the rear result in a far superior rolling resistance of the cross sections compared to competitor wheels.
THE SMOOTHEST
- The well-known USB cup-and-cone bearing system guarantees smoothness in the ceramic bearings.
- The 2-Way Fit profile allows you to mount either a clincher tyre or a tyre which offers the least rolling resistance possible: the tubeless tyre.
- The C19 class allows you to mount tyres from 23, 25 to 28 mm, with perfect pairing of the rim-tyre system.
THE CHOICE OF CAMPAGNOLO
- Campagnolo's rideability remains high despite the focus on aerodynamics.
- The wheel structure enables reducing energy dissipation, transferring all the energy produced by the cyclist to the asphalt.
- A 60 mm profile and a weight of 1,547 g for the pair makes this wheel ideal for riding on routes that enable going more than 40 km/h.
SPECIFICATIONS:
SPOKES
- 18 steel spokes in the front elliptical cross section
- 21 steel spokes in the rear elliptical cross section, spaced in groups of three through the G3 system
- Anti-rotation technology on the radial spokes
VERSIONS AND WEIGHTS
- Two different colorways: Bright Label and Dark Label
- Only available for: 2-Way Fit: 1,547 gram
COMPATIBILITY
- Campagnolo sprocket set 10/11/12
- Shimano sprocket set
- SRAM 10/11
HUB
- Black aluminium monolithic hub
- USB cup-and-cone bearing system
- Hub edge: 100 mm in the front, 130 mm in the rear
- Pivot material: aluminium
RIM
- Profile height: 60 mm
- Rim material: carbon
- Rim cross section (H x W): 60 / 26.5 mm
- Rim class: C19
- AC3 technology on the braking rim
- Water Transfer graphic
TYRES
ASSEMBLY
The Bora™ WTO 60 Wheel is entirely hand-assembled by a specialised Campagnolo® technician and is 100% checked by electronic instrumentation. This procedure ensures that every single Campagnolo® wheel offers maximum performance and reliability.
TECHNOLOGY:
IN THE BOX:
- Bora Carbon WTO 60 Wheelset
- Special brake block kit for carbon wheels (red compound): 40% better braking performance in wet conditions and 20% better in dry
- Lightweight Quick Release wheels with an aerodynamic profile and shiny finish
- 44 mm tubeless valve
- 40 mm valve extender
- Bushing to reduce the size of the valve hole
- User manual
WARRANTY: 3 YEARS
HAND MADE IN ITALY
