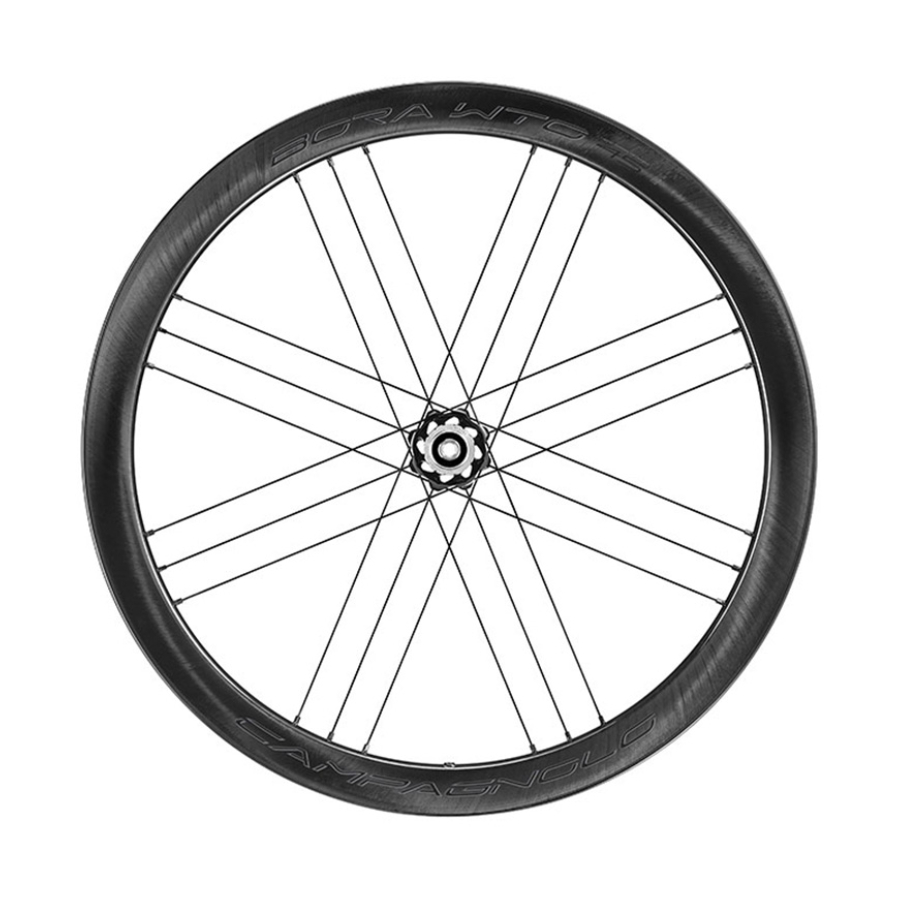

BORA CARBON WTO 45 DISC WHEELSET - 2 WAY FIT / DARK LABEL

INTL W 19mm, H 45mm, Front Hub W 100mm, Rear Hub W 142mm, 1,520gram

Campagnolo introduces the first aerodynamic Disc Brake wheel with a 45 mm profile, designed to appeal to a broader customer base. The design of the rim enables maximum aerodynamic penetration, and at certain angles, the wind can actually become a valuable ally to the rider. The wheel features carbon rims with a unidirectional aerodynamic finish, new aerodynamic aluminium hubs, and the ceramic USB cup-and-cone bearing system: every design choice has been made with a view to optimising performance. The profile of the rim, which has an internal diameter of 19 mm, corresponds perfectly with 23 mm, 25 mm and 28 mm tyres. In addition, with the 2-Way Fit version, Campagnolo offers its tried-and-tested technology with full compatibility with clincher and tubeless tyres. While the key purpose of these wheels is to deliver extreme performance, safety is also guaranteed thanks to the G3 spoking system with double spokes on the left of the front wheel, to ensure balanced and safe braking in all conditions. Available versions: dark label, Campagnolo freewheel hub, HG or XDR

MAIN BENEFITS:

45mm…BUT AERO

• The rim design enables the maximum amount of aerodynamic penetration when the wind angle is between 12° and 19°, making it a thrust for triathlon athletes
• The streamlined design of the central part of the hub decreases the frontal area of the component whilst the special design of the flanges favours airflow detachment
• The 24-spoke elliptical cross section results in a far superior rolling resistance

FAST AND FLUID

• The well-known USB cup-and-cone bearing system guarantees smoothness in the ceramic bearings
• The 2-Way Fit profile allows you to mount either a clincher tyre or a tyre which offers the least rolling resistance possible: the tubeless tyre
• The 19 mm inner diameter enables you to mount 23, 25 and 28 mm tyres, with perfect pairing of the rim-tyre system

THE CHOICE OF CAMPAGNOLO

• Campagnolo's rideability is enhanced by the 45 mm profile, despite the aerodynamic design of the rim
• The wheel structure enables reducing energy dissipation, transferring all the energy produced by the cyclist to the asphalt
• A 45 mm profile and a weight of 1,520 g for the pair makes this wheel ideal for riding on hilly routes

SPECIFICATIONS:

SPOKES

• 24 steel spokes in the front elliptical aero cross section, spaced in groups of three through the G3 system
• 24 steel spokes in the rear elliptical aero cross section, spaced in groups of three through the G3 system

VERSIONS AND WEIGHTS

• Dark Label
• Only available for 2-Way Fit: 1,520 gram

COMPATIBILITY

• Campagnolo sprocket set 10/11/12
• Shimano sprocket set / SRAM 10/11
• SRAM 12 sprocket set

HUB

• Black aluminium monolithic hub
• USB cup-and-cone bearing system
• Hub edge: 100 mm in the front, 142 mm in the rear
• Pivot material: aluminium
• Cup-and-cone bearing system

RIM

• Profile height: 45 mm
• Rim material: carbon
• Rim cross section (H x W): 45/26,5 mm
• Internal diameter of rim: 19 mm
• Water Transfer graphic

TYRES

• Clincher tyres
• Tubeless tyres

ASSEMBLY

The Bora™ WT0 45 Disc wheel is entirely hand-assembled by a specialised Campagnolo® technician and is checked in every tiny detail with electronic instrumentation. This ensures maximum performance and reliability for all Campagnolo® wheels.

TECHNOLOGY:

• USB™ ULTRA SMOOTH BEARINGS: Our ceramic USB™ - Ultra Smooth Bearings guarantee extremely high smoothness.
• G3 GEOMETRY: G3™ geometry: reinvent the wheel, not just its look
• AC3™: The introduction of the meticulously researched textured design of the rim brake area creates a surefooted stopping power that is reliable and potent no matter what the weather will throw at you.

IN THE BOX:

• Bora Carbon WTO 45 Disc Wheelset
• 35 mm tubeless valve
• 35 mm valve extender
• Bushing to reduce the size of the valve hole
• 2 levers in composite material for tyre removal
• User manual

HAND MADE IN ITALY
