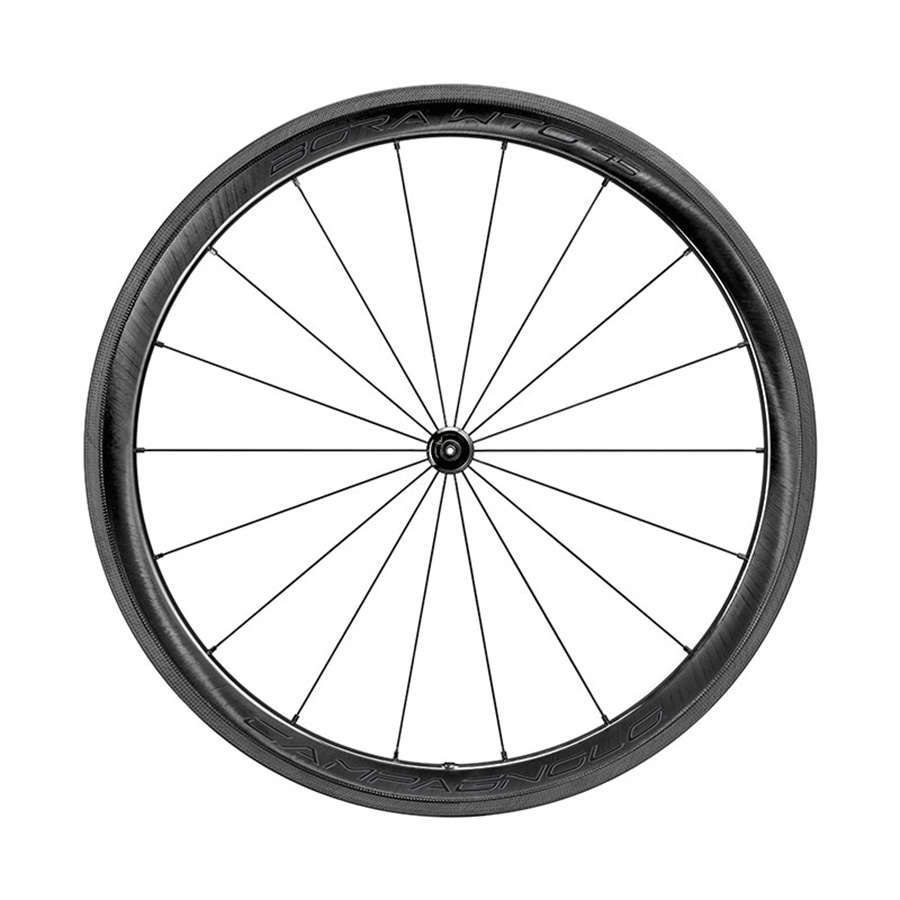

BORA CARBON WTO 45 WHEELSET - 2 WAY FIT

INTL W 19mm, H 45mm, Front Hub W 100mm, Rear Hub W 130mm, 1,496gram

The family of carbon aero wheels is further enhanced with the 45 mm profile, designed to appeal to a broader customer base. The design of the rim enables maximum aerodynamic penetration, and at certain angles, the wind can actually become a valuable ally to the rider. Aerodynamic hubs and ceramic USB cup-and-cone bearing system in the hubs themselves: every design choice has been made with a view to optimising performance.

The 19 mm internal width of the rim enables tyres of 23mm, 25mm and 28mm to be fitted. In addition, with the 2-Way Fit version, Campagnolo offers its tried-and-tested technology with full compatibility with clincher and tubeless tyres. While the key purpose of these wheels is to deliver extreme performance, safety is also guaranteed by the Campagnolo AC3 (All Conditions Carbon Control) technology, which ensures safe, modular braking in all weather conditions.

MAIN BENEFITS:

45mm… BUT AERO

• The rim design enables the maximum amount of aerodynamic penetration when the wind angle is between 12° and 19°, making it a thrust for triathlon athletes.
• The streamlined design of the central part of the hub decreases the frontal area of the component whilst the special design of the flanges favours airflow detachment
• The elliptical aero cross section with 18 front spokes results in a far superior rolling resistance

FAST AND FLUID

• The well-known USB cup-and-cone bearing system guarantees smoothness in the ceramic bearings
• The 2-Way Fit profile allows you to mount either a clincher tyre or a tyre which offers the least rolling resistance possible: the tubeless tyre
• The 19 mm inner diameter enables you to mount 23, 25 and 28 mm tyres, with perfect pairing of the rim-tyre system

THE CHOICE OF CAMPAGNOLO

• Campagnolo's rideability is enhanced by the 45 mm profile, despite the aerodynamic design of the rim
• The wheel structure enables reducing energy dissipation, transferring all the energy produced by the cyclist to the asphalt
• A 45 mm profile and a weight of less than 1,500 g for the pair makes this wheel ideal for riding on hilly routes

SPECIFICATIONS:

SPOKES

• 18 steel spokes in the front elliptical cross section
• 21 steel spokes in the rear elliptical cross section, spaced in groups of three through the G3 system
• Anti-rotation technology on the radial spokes

VERSIONS AND WEIGHTS

• Bright Label
• Dark Label
• Only available for 2-Way Fit: 1,496 gram

COMPATIBILITY

• Campagnolo sprocket set 10/11/12
• Shimano sprocket set / SRAM 10/11
• SRAM 12 sprocket set (when purchasing dedicated replacement body)

HUB

• Black aluminium monolithic hub
• USB ceramic cup-and-cone bearing system
• Hub edge: 100 mm in the front, 130 mm in the rear
• Pivot material: aluminium
• USB cup-and-cone bearing system

RIM

• Profile height: 45 mm
• Rim material: carbon
• Rim cross section (H x W): 45/26,5 mm Internal diameter of rim: 19 mm
• AC3 technology on the braking rim
• Water Transfer graphic

TYRES

• Clincher tyres
• Tubeless tyres

ASSEMBLY

The Bora™ WT0 45 wheel is entirely hand-assembled by a specialised Campagnolo® technician and is checked in every tiny detail with electronic instrumentation. This ensures maximum performance and reliability for all Campagnolo® wheels.

TECHNOLOGY:

• USB™ ULTRA SMOOTH BEARINGS: Our ceramic USB™ - Ultra Smooth Bearings guarantee extremely high smoothness.
• G3 GEOMETRY: G3™ geometry: reinvent the wheel, not just its look
• AC3™: The introduction of the meticulously researched textured design of the rim brake area creates a surefooted stopping power that is reliable and potent no matter what the weather will throw at you.

IN THE BOX:

• BORA Carbon WTO 45 Wheelset
• Special brake block kit for carbon wheels (red compound): 40% better braking performance in wet conditions and 20% better in dry.
• Lightweight Quick Release wheels with an aerodynamic profile and shiny finish.
• 35 mm tubeless valve
• 35 mm valve extender
• Bushing to reduce the size of the valve hole
• 2 levers in composite material for tyre removal - User manual

HAND MADE IN ITALY
