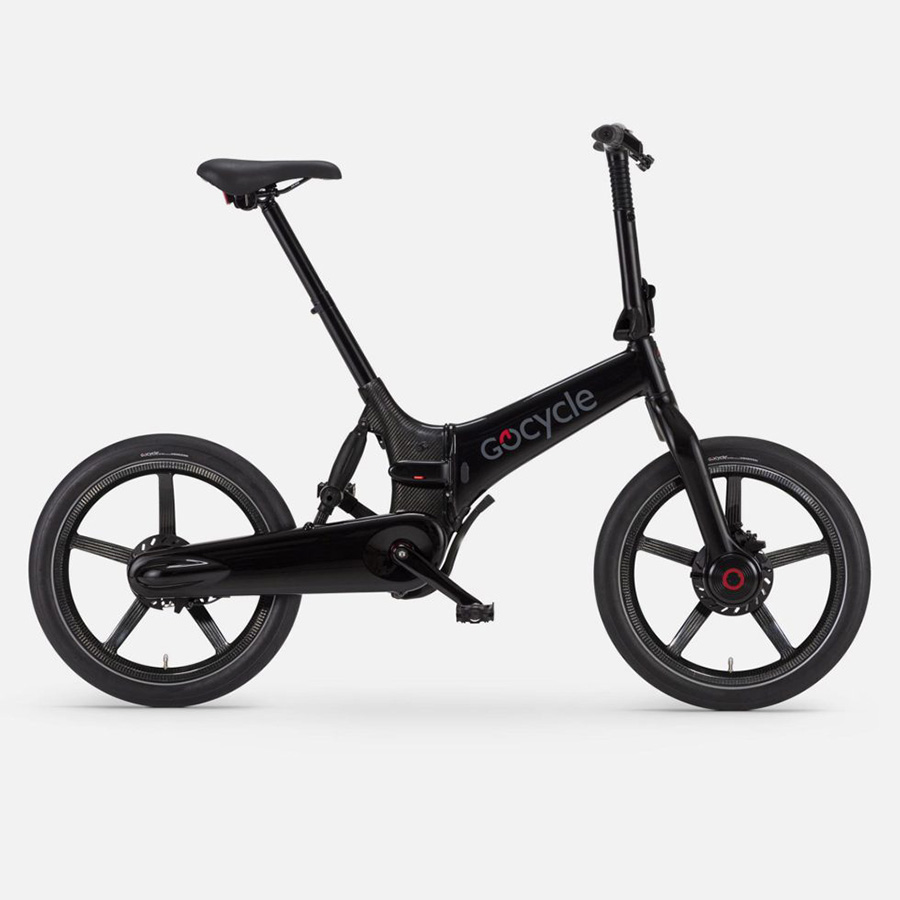

GOCYCLE® G4i+ - GLOSS BLACK / LIMITED EDITION

Gocycle G4i+ with a lightweight carbon of Gocycle’s world-speed record PitstopWheels®

“You’re paying for impressive engineering and innovation that combines quality parts and manufacturing with exotic materials in new ways to create one of the best folding e-bikes I’ve ever ridden.” Electrek, 01/2022

FEATURES

• All-New G4drive – 부드럽고 조용한 Gocycle만의 새로운 G4drive™ 모터는 현재 어번 전기자전거에 적용된 모터중에서 가장 작은 사이즈이면서도 더 높은 토크를 발생시킨다. 특허 출원된 G4drive™와 기어박스는 수년 동안 개발과정에서 상당한 거리를 달리는 테스트를 통해서 G4의 높은 신뢰수준을 충족시킬 수 있도록 하였다. 토크도 기존 G3에 비해 초반에 월등한 회전력을 발휘하여 오르막과 가속시 월등한 성능을 발휘하게하였다.

• Carbon Fibre mid-frame – G4의 중앙에 위치한 부품인 monocoque chassis는 hydroformed aluminium front frame과 Gocycle 특허인 magnesium Cleandrive를 연결하는 역할을 한다. 부드럽고 유려한 라인은 순수한 미적 아름다음을 주면서도 차체의 스트레스와 무게를 줄여주는데 도움을 준다. 향상된 승차감을 위해 수직 용인성(vertical compliance)을 늘리면서 동시에 코너에서의 확실한 스티어링 감각을 위해 정방향의 강성 (directional stiffness)을 유지하도록 설계되었다. Gocycle의 유명한 핸들링 감각은 Gocycle G4i monocoque chassis를 형성하는 새롭게 도입된 경량의 정밀한 carbon fibre mid-frame으로 더욱 향상되었다. Carbon fiber mid-frame, hydroformed aluminium front frame, 그리고 Gocycle’s patented magnesium Cleandrive의 세 가지 부품이 다른 소재로 다른 역할을 하도록 최적화되었다.

• F1 Inspired Rider Cockpit - Gocycle만의 F1 자동차에서 영감을 받은 rider cockpit은 전자식 자동 기어 변속 (gear shifting), 자동차에서 영감을 받은 가시성을 높혀 안전성을 높혀주는 특허등록된 Daytime Running Light (DRL),  많은 독특한 라이더를 위한 세팅이 GocycleConnect App을 통해 조정이 가능하다.

• Carbon Fibre Single-Sided Front Fork – Gocycle G4에 도입된 완전히 새로운 single-sided carbon front fork는 완전히 일체화된 G4drive electric motor을 가지며 부드럽게 흐르는 프론트 포크 라인은 스트레스와 하중을 줄여준다.

• Intuitive Folding Mechanism - 10초안에 Gocycle G4를 접어 작은 부피로 만들 수 있으며 접힌 상태에서 바퀴로 굴리며 이동할 수 있어 매우 손쉽게 옮길 수 있다. 이러한 빠른 접이 방식은 (fast-folding system)은 접이 조인트를 정확히 정렬하도록 해주는 티타늄 핀(titanium pin)을 새롭게 적용하여 훨씬 더 튼튼해졌다.

• Low Gravity Design - Gocycle은 프레임과 전후 휠의 무게 중심을 아래쪽으로 설계하여 안정적인 주행과 조향감을 높였습니다.

• Integrated USB Port – 핸드폰 충전을 위한 1 암페어의 USB charger가 핸들바에 일체형으로 마련되어 핸드폰뿐 아니라 다른 작은 전자기기들을 충전할 수 있게 되었다. G4 Gocycle 악세사리들로 새로운 G4 머드가드, 라이트, 리어 패니어 랙들이 도입된다. G4 Gocyle은 기존의 Gocycle Front Pannier와 Travel case와 호환된다. 선택가능한 일체형 라이트가 Super Nova로 업그레이되어 G4에서는 움직일 때 자동적으로 켜고 끄는 G4 controller에 의해 조정된다.
• New Gocycle Tyre – 모터사이클 그랑프리 (MotoGP)에서 영감을 받은 패턴이 적용된 타이어가 새롭게 도입되었으며 이 타이어는 silica compound가 함유되어 탁월한 그립력과 확실한 핸들링 성능을 발휘하게 해준다. 라이더들은 이 타이어 덕분에 훨씬 부드러운 라이딩 감각을 즐길 수 있을 것이다. 이 경량의 타이어는 보다 광폭의 디자인과 증가한 공기주입량으로 보다 편안한 라이딩 감각을 선사한다.
• Lightweight Carbon Wheel - 세계 최고 속도 기록을 달성했던 경량 카본 휠 적용 (Gocycle’s world-speed record PitstopWheels®)

• Gocycle G4’s Removeable Powerful Lithium-Ion Battery - G4’s hydroformed aluminium frame과 완벽하게 일체화된 리듐 이온 배터리로 G4 모델에서는 최대 40 miles (65km), G4i 모델에서는 최대 50 miles (80km)의 주행거리를 평균적으로 보인다(이 주행거리는 페달링 정도에 따라 상이할 수 있음). G4에서는 표준이 된 Gocycle의 새로운 4A 36V  충전기로 3.5 시간에 완충이 가능하다.
• Low Energy Bluetooth ­– G4에서는 Low Energy Bluetooth 도입으로 휴대폰과 Gocycle app의 연결성이 향상되었으며 GocycleConnect App은 소모 칼로리, 최대 및 평균 페달링 파워 등의 신체 통계와 함께 무한한 맞품형 드라이빙 모드들을 제공한다.

SPECIFICATIONS

• Frame Colour: Gloss Black
• Frame Material: 하이드로폼 공법으로 제작된 6061 T6 알루미늄 합금 프론트 프레임, 매트 블랙의 카본 파이버 소재의 mid-frame, 압출공법으로 제작된 마그네슘 합금의 Cleandrive
• PitstopWheel®: 카본 파이버 (Carbon Fibre with center hub mount)
• PitstopWheel® Color: Gloss Black
• Motor Drive Control: Pedal Torque Sensing
• Daytime Running Light (DRL): 제공
• Smart Device Connectivity: GocycleConnect® App via wireless Bluetooth®
• Riding Modes: GocycleConnect™ App을 통해 조정가능한 City, Eco, On-Demand, Custom 4가지 드라이빙 모드 제공
• Electric Drive Speed: 20 mph / 25 kph
• Range: 페달링 정도에 따라 최대 80km (50 miles)
• Motor: Gocycle proprietary front hub motor, G4drive with traction control 250 watt EU (500 watt USA) continuous
• Battery: 탈착 가능한 lithium ion: 10.4Ah, 36V, approx 375 Wh
• Charging Time: 3 시간
• Motor Controller: Gocycle 독자 컨트롤러
• Handlebar Display: 일체형 대시보드 디스플레이 (fuel gauge, speed, gear, efficiency or Smart Device and GocycleConnect™ App
• Shifting: Gocycle 전자식 자동 Shifting™
• Transmission: 특허등록된 Cleandrive® Shimano Nexus 3-speed
• Gear Inches: 1st=39.1 in, 2nd=53.3 in, 3rd=72.5 in
• Gear Development: 1st=3.1 m, 2nd=4.3 m, 3rd=5.8 m
• Brakes: 유압식 디스크 브레이크
• Tyres: Gocycle Tyre (406-60, 20 x 2.25 inch)
• Front Motor Fork: Gocycle 특허 single-sided Carbon Fibre
• Rear Suspension: Gocycle Lockshock™ 25mm (1 inch)
• Saddle: Velo D2 Comfort 크로몰리 레일
• Seatpost: 34.9 mm 알루미늄
• Pedals: MKS UX-D, One side EZY 탈착가능한 페달
• Grips: Gocycle Ergo Comfort
• Frame Size and Fit: Universal Vgonomic™
• Minimum Saddle Height: 880mm (34.5")
• Handlebar Stem: Quick Folding
• Head Angle: 70°
• Seattube Angle: 68°
• Wheelbase: 1,065mm (42 in)
• Bottom Bracket Height: 275mm (11.5 in)
• Folding Method: 빠르게 접을 수 있는 프레임과 핸들바 (Fast Folding frame and handlebar)
• Stowable Dimension: Kickstand와 Pedal을 접은 경우: L830mm x W390mm x H750mm (L32.7in x W15.3in x H29.5in). Kickstand는 펴고 Pedal은 접은 경우: L880mm x W390mm x H615mm (L34.6in x W15.3in x H24.2in)
• Approximate Weight: 킥스탠드 제외하고 페달은 포함한 상태에서 16.3kg (35.9 lbs)
• Maximum Rider Weight: 짐을 포함해 최대 100kg (220 lbs)

보증 기간: 2 YEARS (제조 하장에 대한 보증)

원산지: DESINGED IN THE UK AND MADE IN EU

GOCYCLE® G4i+ - GROSS BLACK / LIMITED EDITION

Gocycle G4i+ with a lightweight carbon of Gocycle’s world-speed record PitstopWheels®

“You’re paying for impressive engineering and innovation that combines quality parts and manufacturing with exotic materials in new ways to create one of the best folding e-bikes I’ve ever ridden.” Electrek, 01/2022

FEATURES

• All-New G4drive – Smooth and quiet, Gocycle’s bespoke new G4drive™ delivers more torque with class leading compact packaging. The proprietary G4drive™ and gearbox has been in development for a number of years and subject to many, many test miles at Gocycle’s research and development facility to ensure it performs to the G4’s high standards of reliability.
• Carbon Fibre mid-frame – This central component of G4’s monocoque chassis has the important job of connecting the hydroformed aluminium front frame and Gocycle’s patented magnesium Cleandrive.  Its smooth and flowing lines provide a pure aesthetic while helping to reduce stress and overall weight. It’s been engineered with more vertical compliance for improved comfort whilst maintaining directional stiffness for sure footed steering through the corners. Gocycle’s renowned handling capability is enhanced further with the introduction of a new lighter and more precise carbon fibre mid-frame that forms the Gocycle G4i monocoque chassis.  It provides a strong core and has the important job of connecting the hydroformed aluminium front frame and Gocycle’s patented magnesium Cleandrive. Three different components, three different materials, each optimised for three different roles.
• F1 Inspired Rider Cockpit - It includes the brand’s bespoke F1 inspired rider cockpit, predictive electronic gear shifting and patented automotive-inspired Daytime Running Light (DRL) which enhances the safety of riders by ensuring they can be seen from further away. Many of the unique rider-focused settings are now adjustable via the GocycleConnect App.
• Carbon Fibre Single-Sided Front Fork – The Gocycle G4’s all-new single-sided carbon front fork houses the fully-integrated G4drive electric motor. Its smooth and flowing lines help to reduce stress and overall weight.
• Intuitive Folding Mechanism - It makes it possible to fold and stow the Gocycle G4 into a compact package in just 10 seconds. Once folded it can be rolled along on its wheels making it incredibly versatile and easy to live with. The popular fast-folding system is even more robust for 2021 with the introduction of a single titanium pin that keeps the fast-folding joint perfectly aligned.
• Integrated USB Port – 1amp USB charger for phone charging on the go. Discreet integrated USB port on the handlebar, enabling phone charging or other small devices from the bike’s battery when not in use. A dedicated suite of G4 Gocycle accessories will become available shortly after launch including new G4 mudguards, lights and an updated G4 rear pannier rack. The G4 range will be compatible with the existing bespoke Gocycle Front Pannier and Travel case.  Optional integrated riding lights are now upgraded to Super Nova and are controlled by the all-new G4 controller turning them on and off automatically when moving.
• Lightweight Carbon Wheel - Gocycle’s world-speed record PitstopWheels®
• New Gocycle Tyre – MotoGP-inspired treaded tyre infused with silica compound for superior grip and sure -footed handling. Riders will enjoy an even smoother ride owing to Gocycle’s bespoke new MotoGP-inspired treaded tyre. The lightweight tyre is infused with silica compound for superior grip and sure-footed handling. It’s wider design and increased air volume promises a comfortable ride across urban surfaces.
• Gocycle G4’s Removeable Powerful Lithium-Ion Battery - It is seamlessly integrated into the G4’s hydroformed aluminium frame. It provides a range of up to 40 miles (65km) for the G4 and up to 50 miles (80km) for the G4i (depending on pedal input) with 3.5 hour fast charging now standard across the entire range from Gocycle’s new 4A 36V Charger.
• Low Energy Bluetooth ­– Improved phone and Gocycle app connectivity. The Gocycle G4 is also compatible with the GocycleConnect App, which provides infinite customised driving modes as well as interesting health statistics such as calories burned, maximum and average pedal power. Connection to the app has been improved with the inclusion of Low Energy Bluetooth.

SPECIFICATIONS

• Frame Colour: G4i Matte Black, White, Gunmetal Gray
• Frame Material: Hydro-formed 6061 T6 alloy front frame, matte black carbon fibre mid-frame and injection moulded magnesium Cleandrive
• PitstopWheel®: Carbon Fibre with center hub mount
• PitstopWheel® Color: Gloss Black
• Motor Drive Control: Pedal Torque Sensing
• Daytime Running Light (DRL): Yes
• Smart Device Connectivity: GocycleConnect® App via wireless Bluetooth®
• Riding Modes: City, Eco, On-Demand, Custom.  Multiple, programmable through GocycleConnect™ App
• Electric Drive Speed: 20 mph / 25 kph
• Range: Up to 80km (50 miles), depending on pedal input
• Motor: Gocycle proprietary front hub motor, G4drive with traction control 250 watt EU (500 watt USA) continuous
• Battery: Quick removable lithium ion: 10.4Ah, 36V, approx 375 Wh
• Charging Time: 3 Hours
• Motor Controller: Gocycle proprietary
• Handlebar Display: Integrated dashboard display with fuel gauge, speed, gear, efficiency or Smart Device and GocycleConnect™ App
• Shifting: Gocycle electronic Predictive Shifting™
• Transmission: Patented Cleandrive® Shimano Nexus 3-speed
• Gear Inches: 1st=39.1 in, 2nd=53.3 in, 3rd=72.5 in
• Gear Development: 1st=3.1 m, 2nd=4.3 m, 3rd=5.8 m
• Brakes: Hdraulic disk, front and rear
• Tyres: Gocycle Tyre (406-60, 20 x 2.25 in)
• Front Motor Fork: Gocycle proprietary, single-sided, Carbon Fibre, fixed
• Rear Suspension: Gocycle Lockshock™ 25mm (1 in) travel
• Saddle: Velo D2 Comfort, Chro-mo Rails
• Seatpost: 34.9 mm Aluminium
• Pedals: MKS UX-D, One side EZY Detachable Pedal
• Grips: Gocycle Ergo Comfort
• Frame Size and Fit: Universal Vgonomic™
• Minimum Saddle Height: 880mm (34.5")
• Handlebar Stem: Quick Folding
• Head Angle: 70°
• Seattube Angle: 68°
• Wheelbase: 1065mm (42 in)
• Bottom Bracket Height: 275mm (11.5 in)
• Folding Method: Fast Folding frame and handlebar
• Stowable Dimension: Kickstand down: L830mm x W390mm x H750mm (L32.7in x W15.3in x H29.5in) with folding pedals folded. Kickstand up: L880mm x W390mm x H615mm (L34.6in x W15.3in x H24.2in) with folding pedals folded
• Approximate Weight: 16.6kg (36.6 lbs) excluding kickstand & including pedals
• Maximum Rider Weight: 100kg (220 lbs), including clothing and luggage

WARRANTY: 2 YEARS

DESINGED IN THE UK AND MADE IN EU
