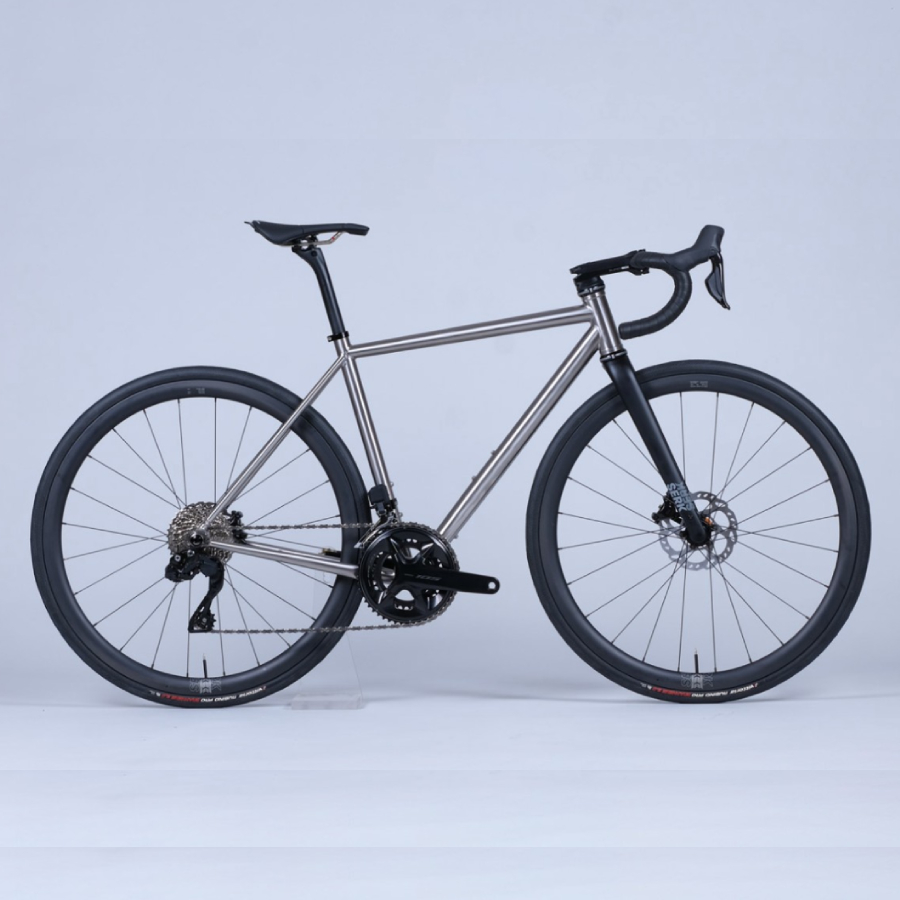

A40 THE FIXER - ALL-ROAD & GRAVEL / INTEGRATED COCKPIT / UP TO 40MM

A40 THE FIXER - ALL-ROAD & GRAVEL / INTEGRATED COCKPIT / UP TO 40MM

진정한 성능은 종이위 숫자로는 모두 표현할 수 없다. Serk A40 모델은 성능과 감각의 완벽한 결합으로 라이더와 자전거를 하나로 만들어준다. 이것이 A40의 디자인 정신이며 해결사(The Fixer)라는 모델명을 붙인 이유이다. 새로운 엔듀런스 지오메트리와 추가적인 랙장착 bosses, 3번째 물통장착, 700c x 40mm 타이어까지 장착할 수 있는 A40은 당신을 미지의 영역에까지 도달하게 해줄 것이다.

KEY FEATURES

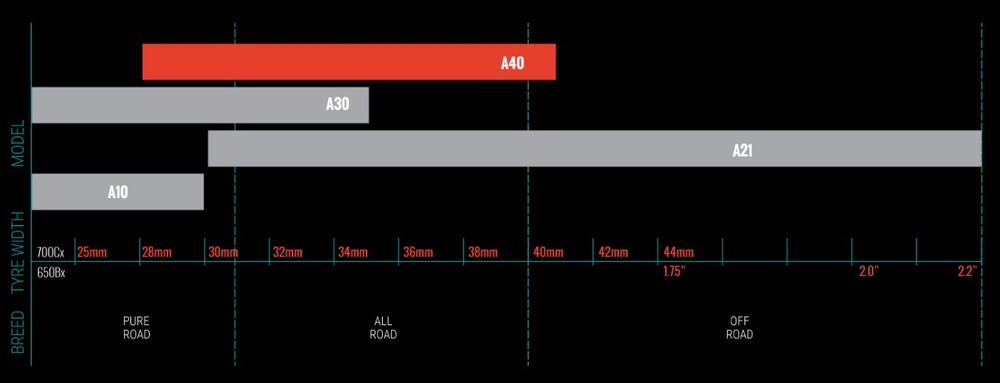

EDURANCE, ALL-ROAD, EVEN TO GRAVEL

A40 Geometry는 30-32mm 타이어에 최적화되어 있지만 프레임과 포크는 40mm 타이어까지 수용할 수 있어 올로드와 그래블 자전거로도 충분히 사용이 가능하다.

DRIVETRAIN VERSATILITY

A40 프레임은 커스텀 케이블 스톱포트가 있어 8단 이상의 모든 1X와 2X 기계식 로드 그룹세트를 지원하기에 현재 가장 보편적인 호환성을 가진 프레임이다.

WEIGHT OPTIMIZATION

A40의 새로운 hydro-formed titanium tubeset는 장거리 라이딩에서의 편안함을 증대시켜주며 사랑받았던 A30의 핸들링을 유지하고 숨겨진 감량의 디테일로 A30 frame보다 100그램 가볍다.

ATTENTION TO DETAIL

악마는 디테일에 있다고 했는데 바로 알아볼 없는 신규 커스텀 drop out, headtube, flat mount brake bosses 등에 세밀한 디테일이 적용되어 있다.

SPECIFICATIONS

FRAMESET

• Titanium 3Al/2.5V
• Flat mount disc brakes
• Rear 12x142mm
• Clearance for 40mm tyres (실측기준 40mm)
• Di2 Compatible
• T47 BB Shell
• Fork : Serk carbon Internal or External Cable routing all-road plus (12x100mm)
• Handlebar : 3 Options 제공 / 비용 추가 (Deda Super Box + Deda RS2 / THE ONE PRO Carbon Integrated / EXS Aerover Carbon Integrated)
• Seatpost: 27.2mm
• UDH Hanger
• Full Mudguard mounts front and rear
• 3rd bottle cage mount
• Quick Release style Rear Rack compatible
• 기본 포함 품목: Serk Headset Integrated, seatpost clamp, thru-axles, expander, rear seat stay bridge mudguard mounting accessory
• Frame Weight: Size XS : 1,500g, S : 1,600g, M : 1,640g, L : 1,680g, XL : 1,750g, XXL : 1,830g / Fork: 435g (300m steerer)

SHIMANO 105 Di2 (Small Weight: 8.48kg)

• Drivetrain: R7100 105 di2
• Crankset: FC-R7100 105 50/34t
• Brakeset: BR-R7170 105
• Shift Levers: ST-R7179 105 di2
• Cassette: CS-R7101-12 105  11-34t
• Disc: RT70-SS 160mm/140mm
• Wheelset: Serk Carbon DB 35 (35mm deep, 21mm wide, Tubeless Compatible, Serk Centre Lock Hubs, Sapim spokes)
• Tyres: Vittoria Rubino Pro 28mm
• Handlebars: DEDA Zero2 DCR Handlebar
• Stem: DEDA Superbox V2 Stem
• Seatpost: Serk Carbon Seatpost 27.2mm
• Saddle: Prologo Scratch M5

SHIMANO ULTEGRA Di2

• Drivetrain: R8100 Ultegra di2
• Crankset: FC-R8100 Ultegra 50/34t
• Brakeset: BR-R8170 Ultegra
• Shift Levers: ST-R8170 Ultegra di2
• Cassette: CS-R8101-12 Ultegra  11-34t
• Disc: MT800-SS 160mm/140mm
• Wheelset: Serk Carbon DB 35 (35mm deep, 21mm wide, Tubeless Compatible, Serk Centre Lock Hubs, Sapim spokes)
• Tyres: Vittoria Rubino Pro 28mm
• Handlebars: THE ONE Pro Integrated
• Seatpost: Serk Carbon Seatpost 27.2mm
• Saddle: Prologo Scratch M5

SRAM FORCE E1 2x12 OR 1x13 XPLR (Small Weight - 37C XPLR E1: 8.25KG)

• Drivetrain: Force 1x or 2x AXS E1
• Crankset: Force 42T or 46-33T E1
• Brakeset: Force AXS E1
• Shift Levers: Force AXS E1
• Cassette: 10-33T Force AXS E1 or Force 10-46 T Force AXS E1
• Disc: Paceline Rotor A2 160mm/140mm
• Wheelset : Serk Carbon DL45 or DL30 (45mm  or 30mm deep, 24mm wide, Tubeless Compatible, Serk Centre Lock Hubs, Carbon spokes. 1,100gram)
• Tyres : Vittoria Corsa Control 28mm
• Handlebars: EXS Aerover carbon integrated
• Seatpost: Serk Carbon Seatpost 27.2mm
• Saddle: Prologo Scratch M5

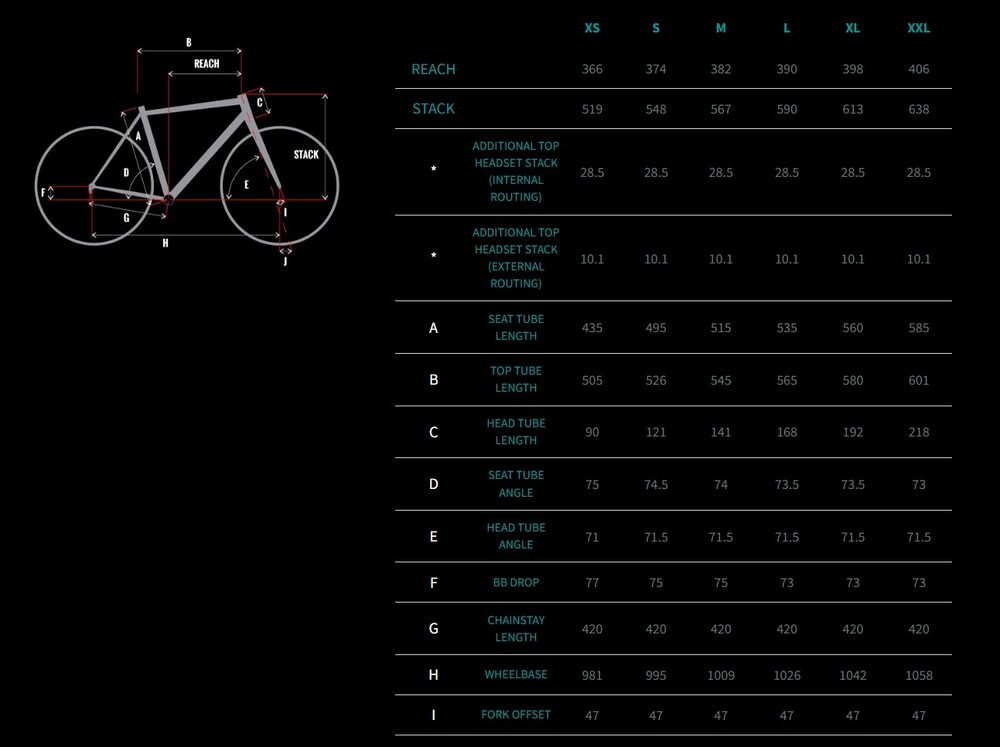

GEOMETRY

A40의 Geometry는 30~32mm 타이어에 최적화되었지만 40mm 타이어까지 장착이 가능하여 올로드나 그래블 어드벤처가 가능한 자전거로 변모가 가능하다.

COLOR OPTIONS - FOUR COLOR TAMPLATES (Check the image gallery link below)

아래 4가지 템플렛중에서 당신의 프레임에 적용할 것을 아무 것이나 선택하세요. 각 모델별도 기본 템플렛이 있으며 A30M의 경우 RAW가 기본이며 아래 템플렛을 선택하는 경우 추가 비용이 다소 발생합니다. 프레임은 한번에 하나씩 페인팅되며 선금을 낸 후 4주 정도 소요됩니다.

1. CLASSIC - RAL Color에서 2개의 색상을 선택하세요. 친환경적인 수용성 페인트인 German Spies Hecker brand를 사용합니다.

2. PURA - RAL Color에서 1개의 색상을 선택하세요. 친환경적인 수용성 페인트인 German Spies Hecker brand를 사용합니다.

3. MOFO - 20개 이상의 ceramic Cerakote paints중에서 하나 또는 두개의 색상을 선택하세요. Cerakote paint는 가볍고 내구성이 좋으며 보다 복잡한 패턴들을 만들기 위해서 단기 한번의 코팅만을 요구합니다. Basic template for A30 Bike.

4. MULTI-CAM - 20개 이상의 ceramic Cerakote paints중에서 highlight colour를 선택하세요. 두번째와 세번째 베이스 칼라들을 위한 3가지 표준 옵션이 제공됩니다.

* SERK IMAGE GALLERY BY MODEL: https://www.serk.cc/paint/

* SERK PAINTING SCHEME: https://works.do/55YiiCw

* RAL COLOR: https://www.ralcolor.com/

* CERAKOTE COATING: https://www.cerakote.com/shop/cerakote-coating

LIFETIME WARRANTY

HANDMADE IN BEIJING, CHINA

A40 THE FIXER - ALL-ROAD & GRAVEL / INTEGRATED COCKPIT / UP TO 40MM

True performance is never just numbers on paper - it is the perfect blend of function and feeling;the rider and bike coming together as one. This is the design ethos of the A40, dubbed ‘The Fixer’. With a new endurance geometry, additional mounting bosses for racks, mudguards, 3rd bottle and true clearance for 700c x 40mm tires, the A40 takes you further into uncharted territories.

KEY FEATURES

EDURANCE, ALL-ROAD, EVEN TO GRAVEL

Geometry is optimized for 30-32mm tyres but the frame and fork can accomodate tyres up to 40mm with ample clearance putting the bike into the 'all-road' category and capable as a gravel bike.

DRIVETRAIN VERSATILITY

The A40 supports all 1x and 2x mechanical road groupsets from 8 speed onward, thanks to a custom cable stop port—making it one of today’s most universally compatible bikes for drive trains.

WEIGHT OPTIMIZATION

The A40’s new hydro-formed tubeset boosts comfort for all-day rides, retains beloved A30 handling, and features hidden weight-saving details, weighing 100g less than A30 frames.

ATTENTION TO DETAIL

The devil is in the details and in places where you don’t immediately see; new custom designed drop outs, headtube, flat mount brake bosses.

SPECIFICATIONS

FRAMESET

• Titanium 3Al/2.5V
• Flat mount disc brakes
• Rear 12x142mm
• Clearance for 40mm tyres (실측기준 40mm)
• Di2 Compatible
• T47 BB Shell
• Fork : Serk carbon Internal or External Cable routing all-road plus (12x100mm)
• Handlebar : 3 Options 제공 / 비용 추가 (Deda Super Box + Deda RS2 / THE ONE PRO Carbon Integrated / EXS Aerover Carbon Integrated)
• UDH Hanger
• Full Mudguard mounts front and rear
• 3rd bottle cage mount
• Quick Release style Rear Rack compatible
• 기본 포함 품목: Serk Headset Integrated, seatpost clamp, thru-axles, expander, rear seat stay bridge mudguard mounting accessory
• Frame Weight: Size XS : 1,500g, S : 1,600g, M : 1,640g, L : 1,680g, XL : 1,750g, XXL : 1,830g / FORK : 435g (300m steerer)

SHIMANO 105 Di2 (Small Weight: 8.48kg)

• Drivetrain: R7100 105 di2
• Crankset: FC-R7100 105 50/34t
• Brakeset: BR-R7170 105
• Shift Levers: ST-R7179 105 di2
• Cassette: CS-R7101-12 105  11-34t
• Disc: RT70-SS 160mm/140mm
• Wheelset: Serk Carbon DB 35 (35mm deep, 21mm wide, Tubeless Compatible, Serk Centre Lock Hubs, Sapim spokes)
• Tyres: Vittoria Rubino Pro 28mm
• Handlebars: DEDA Zero2 DCR Handlebar
• Stem: DEDA Superbox V2 Stem
• Seatpost: Serk Carbon
• Saddle: Prologo Scratch M5

SHIMANO ULTEGRA Di2

• Drivetrain: R8100 Ultegra di2
• Crankset: FC-R8100 Ultegra 50/34t
• Brakeset: BR-R8170 Ultegra
• Shift Levers: ST-R8170 Ultegra di2
• Cassette: CS-R8101-12 Ultegra  11-34t
• Disc: MT800-SS 160mm/140mm
• Wheelset: Serk Carbon DB 35 (35mm deep, 21mm wide, Tubeless Compatible, Serk Centre Lock Hubs, Sapim spokes)
• Tyres: Vittoria Rubino Pro 28mm
• Handlebars: THE ONE Pro Integrated
• Seatpost: Serk Carbon Seatpost 27.2mm
• Saddle: Prologo Scratch M5

SRAM FORCE E1 2x12 OR 1x13 XPLR (Small Weight - 37C XPLR E1: 8.25KG)

• Drivetrain: Force 1x or 2x AXS E1
• Crankset: Force 42T or 46-33T E1
• Brakeset: Force AXS E1
• Shift Levers: Force AXS E1
• Cassette: 10-33T Force AXS E1 or Force 10-46 T Force AXS E1
• Disc: Paceline Rotor A2 160mm/140mm
• Wheelset : Serk Carbon DL45 or DL30 (45mm  or 30mm deep, 24mm wide, Tubeless Compatible, Serk Centre Lock Hubs, Carbon spokes. 1,100gram)
• Tyres : Vittoria Corsa Control 28mm
• Handlebars: EXS Aerover carbon integrated
• Seatpost: Serk Carbon Seatpost 27.2mm
• Saddle: Prologo Scratch M5

GEOMETRY

Geometry is optimized for 28mm tyres but the frame and fork can accomodate tyres up to 35mm putting the bike into the 'all-road' category and ready to take on adventure.

COLOR OPTIONS - FOUR COLOR TAMPLATES (Check the photoes)

Choose from any of the following templates to apply to your frame of choice. Frames are painted one by one and turn around time is 4 weeks from deposit.

1. CLASSIC - Choose any two RAL colour. We use enivronmentally friendly water based paints from the German Spies Hecker brand.

2. PURA - Choose any one RAL colour. We use enivronmentally friendly water based paints from the German Spies Hecker brand.

3. MOFO - Any single or two colours from our range of 20+ ceramic Cerakote paints. Cerakote paint is light and durable and only requires one coat allowing us to create more intricate paint patterns. Basic template for A30 Bike.

4. MULTI-CAM - Select the highlight colour from our range of 20+ ceramic Cerakote paint. Three standard options for the secondary and tertiary base colours.

* SERK PAINTING SCHEME: https://works.do/55YiiCw

* RAL COLOR: https://www.ralcolor.com/

* CERAKOTE COATING: https://www.cerakote.com/shop/cerakote-coating

LIFETIME WARRANTY

HANDMADE IN BEIJING, CHINA
