BISALTA FRAMESET - CARBON ADVENTURE GRAVEL / FRONT 50MM REAR 50MM

BISALTA - CARBON ADVENTURE GRAVEL / FRONT 50MM REAR 50MM

PRODUCT CONCEPT

그 이름을 준 산으로부터 태어난 새로운 그래블 바이크 아이디어는 힘이 넘치고 가벼우며 본능적으로 자연의 힘을 느끼고 움직이는 라이더들을 위해 태어났다. 속도를 위해 만들어진 라인과 균형을 감안한 디테일들이 적용되어 포장도로가 끝나는 지점에서 보다 과감하고 자유로운 도전적인 라이딩을 원하는 분들을 위한 어드벤처 그래블 자전거이다. 그것이 바로 BISALTA이다.

CHARACTERISTICS

• ACCERLATION: 100%
• AERODYNAMICS: 100%
• KOM PERFORMANCE: 95%
• HANDLING: 95%
• LIGHTNESS: 95%
• COMFORT: 90%
• DRIVING PLEASURE: 100%
• ELEGANCE: 90%

SPECIFICATIONS

• MATERIAL: Carbon Toray T1000
• WEIGHT: 950 gram (M Size, Not Painted)
• GEOMETRY: STANDARD (XS, S, M, L, XL, XXL)
• COLORS: STANDARD / CUSTOM
• FORK: OM SL (600 gram)
• HEAD TUBE: 1″1/2 – 1″1/2
• BOTTOM BRACKET: T47
• SEATPOST: Ø 27.2 mm
• BRAKES: DB - FLAT MOUNT
• CABLE ROUTING: INTEGRATED
• TIRE CLEARANCE: FRONT 50mm / REAR 50mm

IN THE BOX OF A FRAMESET

• BISALTA FRAME
• OM SL FORK
• OM HEADSET
• OM AXLE SET
• DEDA SUPERLEGGERO SEATPOST (POB / SET-BACK OPTIONS)
• OM INTERGRATED HANDLEBAR (WIDTH: 36, 38, 40, 42CM / LENGTH: 90, 100, 110, 120MM)

THE COMPLETE BIKE BUILD-UP GROUPSETS

• SHIMANO GRX 600
• SHIMANO GRX 800
• SHIMANO GRX 825 Di2
• SRAM RED XPLR
• CAMPAGNOLO SUPER RECORD X
• 완성차 조립의 경우 수입사와 구체적인 논의를 통해 결정하세요.

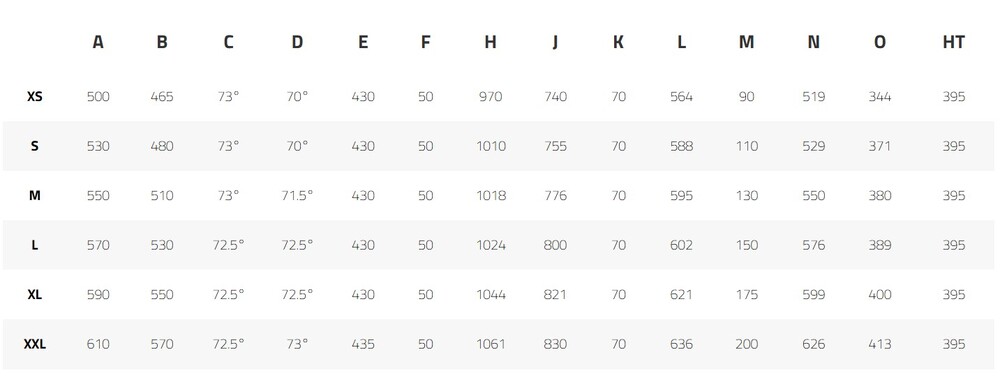

STANDARD GEOMETRY

• A Horizontal top tube length (mm)
• B Measured size (mm)
• C Seat tube angle
• D Head tube angle
• E Chainstay length (mm)
• F Fork rake (mm)
• H Wheelbase (mm)
• I Trail (mm)
• J Standover at top tube/midpoint (mm)
• K Bottom bracket drop (mm)
• L Front center distance (mm)
• M Head tube lenght (mm)
• N Stack (mm)
• O Reach (mm)
• HT Axle to crown (mm)
• H Min: Height Minimum (cm)
• H Max: Height Maximum (cm)

CRASH REPLACEMENT

프레임 파손이 생길 경우 첫 구매자분에게 본사 사이트에 프레임 등록을 했을 경우 30% 할인으로 재구매를 할 수 있도록 하며 본 서비스는 구매 등록일로부터 3년 이내로 기한이 한정됩니다.

WARRANTY: FRAMESET (2 YEARS) / PAINT (1 YEAR)

구매후 2개월내로 Officine Mattio 워런트 섹션에서 프레임 등록을 할 경우 보증기간을 1년 추가 연장하여 3년을 적용해드립니다.

원산지: 100% MADE IN ITALY

BISALTA - CARBON ADVENTURE GRAVEL / FRONT 50MM REAR 50MM

PRODUCT CONCEPT

A new idea of ​​gravel bike is born from the mountain that gives it its name. Powerful, lightweight, instinctive. Created for those who feel the force of nature and transform it into motion. Every line is crafted for speed, every detail for balance. A bike born to go beyond, where the road ends and freedom begins. This is our BISALTA.

CHARACTERISTICS

• ACCERLATION: 100%
• AERODYNAMICS: 100%
• KOM PERFORMANCE: 95%
• HANDLING: 95%
• LIGHTNESS: 95%
• COMFORT: 90%
• DRIVING PLEASURE: 100%
• ELEGANCE: 90%

SPECIFICATIONS

• MATERIAL: Carbon Toray T1000
• WEIGHT: 950 gram (M Size, Not Painted)
• GEOMETRY: STANDARD (XS, S, M, L, XL)
• COLORS: STANDARD / CUSTOM
• FORK: OM SL (600 gram)
• HEAD TUBE: 1″1/2 – 1″1/2
• BOTTOM BRACKET: T47
• SEATPOST: Ø 27.2 mm
• BRAKES: DB - FLAT MOUNT
• CABLE ROUTING: INTEGRATED
• TIRE CLEARANCE: FRONT 35 mm / REAR 30mm

IN THE BOX OF A FRAMESET

• BISALTA FRAME
• OM SL FORK
• OM HEADSET
• OM AXLE SET
• DEDA SUPERLEGGERO SEATPOST (POB / SET-BACK OPTIONS)
• OM INTERGRATED HANDLEBAR (WIDTH: 36, 38, 40, 42CM / LENGTH: 90, 100, 110, 120MM)

THE COMPLETE BIKE BUILD-UP

• SHIMANO GRX 600
• SHIMANO GRX 800
• SHIMANO GRX 825 Di2
• SRAM RED XPLR
• CAMPAGNOLO SUPER RECORD X
• ASK FOR THE DETAILS FROM DEALERS

STANDARD GEOMETRY

• A Horizontal top tube length (mm)
• B Measured size (mm)
• C Seat tube angle
• D Head tube angle
• E Chainstay length (mm)
• F Fork rake (mm)
• H Wheelbase (mm)
• I Trail (mm)
• J Standover at top tube/midpoint (mm)
• K Bottom bracket drop (mm)
• L Front center distance (mm)
• M Head tube lenght (mm)
• N Stack (mm)
• O Reach (mm)
• HT Axle to crown (mm)
• H Min: Height Minimum (cm)
• H Max: Height Maximum (cm)

CRASH REPLACEMENT

We also want to support you in the event of a crash with consequent frame breakage, which is why we offer you a 30% discount on the purchase of a new Officine Mattio frame or fork to benefit from this opportunity, the frame must be registered. The discount will be applied to owners of frames up to 3 years old from the date of registration.

WARRANTY: FRAMESET (2 YEARS) / PAINT (1 YEAR)

If you register your Officine Mattio frame on the official OM website ("Warranty" section), within 2 months of purchase, the warranty will be extended by 1 year.

100% MADE IN ITALY
