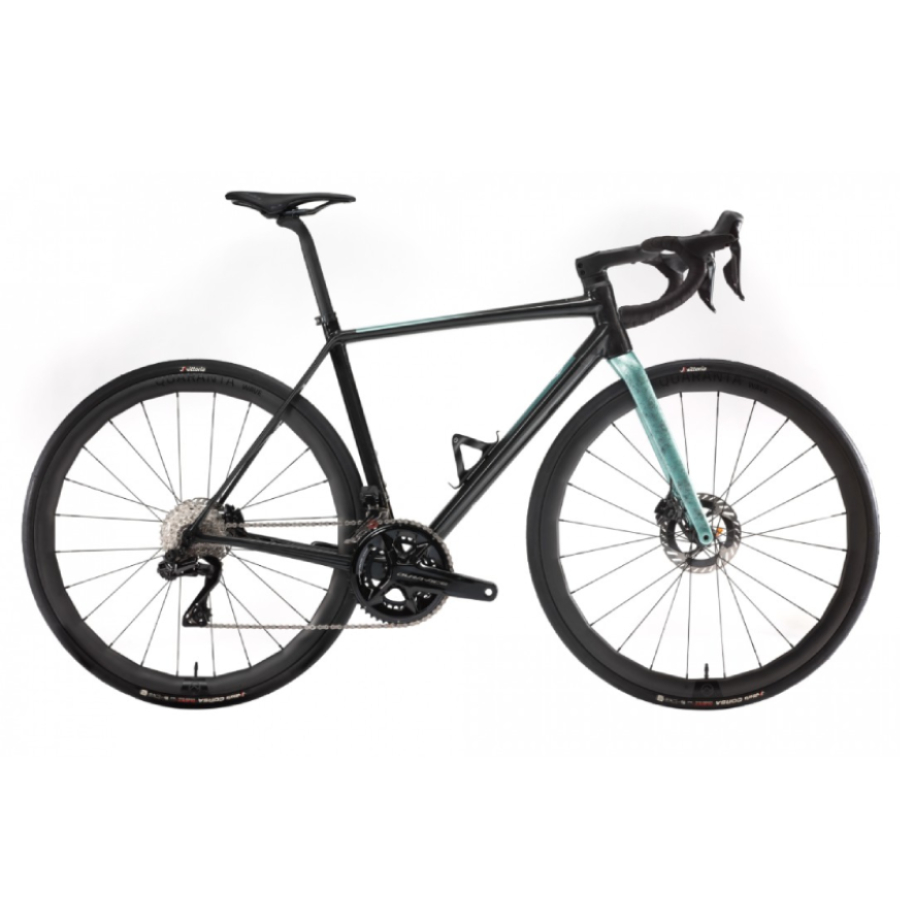

SL COMP FRAMESET - ENDURANCE / FRONT 40MM REAR 35MM

SL COMP - ENDURANCE / FRONT 40MM REAR 35MM

PRODUCT CONCEPT

SL COMP 모델은 SL 시리즈의 보다 활용성을 넓힌 모델로 (more versatile version of the SL series) Officine Mattio의 독특한 품질과 디자인을 유지하면서 승차감을 향상시켜 보다 안정적이고 편안하게 장거리 라이딩을 할 수 있게 해준다. 부드러운 승차감으로 장거리 자전거 라이딩을 즐기고자 하는 분들에게 이상적인 모델이다.

CHARACTERISTICS

• ACCERLATION: 90%
• AERODYNAMICS: 95%
• KOM PERFORMANCE: 100%
• HANDLING: 100%
• LIGHTNESS: 95%
• COMFORT: 100%
• DRIVING PLEASURE: 100%
• ELEGANCE: 100%

SPECIFICATIONS

• MATERIAL: CARBONIO TORAYCA T800
• WEIGHT: 790 gram (M Size, Not Painted)
• GEOMETRY: STANDARD (XS, S, M, L, XL)
• COLORS: STANDARD / CUSTOM
• FORK: OM SL – 420 gram
• HEAD TUBE: 1 1/2" – 1 1/2"
• BOTTOM BRACKET: PF 386 EVO
• SEATPOST: Ø 27.2 mm
• BRAKES: DB - FLAT MOUNT
• CABLE ROUTING: INTEGRATED
• TIRE CLEARANCE: FRONT 40mm / REAR 35mm

IN THE BOX OF A FRAMESET

• SL COMP FRAME
• OM SL FORK
• OM HEADSET
• OM AXLE SET
• DEDA SUPERLEGGERO SEATPOST (POB)
• OM INTERGRATED HANDLEBAR (WIDTH: 36, 38, 40, 42CM / LENGTH: 90, 100, 110, 120MM)

THE COMPLETE BIKE BUILD-UP GROUPSETS

• SHIMANO ULTEGRA Di2
• SHIMANO DURACE Di2
• SRAM FORCE AXS
• SRAM RED AXS
• CAMPAGNOLO SUPER RECORD 13S
• 완성차 조립의 경우 벨로시티즌과 구체적인 논의를 통해 세부 사양과 가격을 결정하세요.

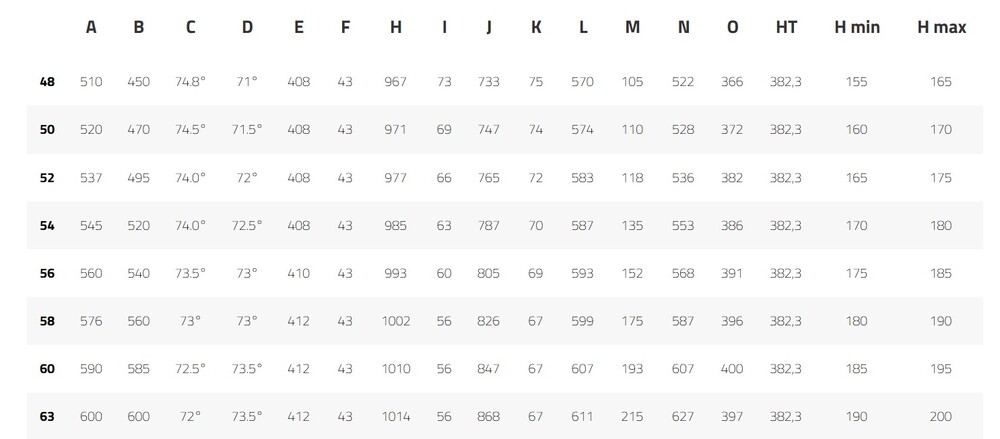

STANDARD GEOMETRY

• A Horizontal top tube length (mm)
• B Measured size (mm)
• C Seat tube angle
• D Head tube angle
• E Chainstay length (mm)
• F Fork rake (mm)
• H Wheelbase (mm)
• I Trail (mm)
• J Standover at top tube/midpoint (mm)
• K Bottom bracket drop (mm)
• L Front center distance (mm)
• M Head tube lenght (mm)
• N Stack (mm)
• O Reach (mm)
• HT Axle to crown (mm)
• H Min: Height Minimum (cm)
• H Max: Height Maximum (cm)

CRASH REPLACEMENT

프레임 파손이 생길 경우 첫 구매자분에게 본사 사이트에 프레임 등록을 했을 경우 30% 할인으로 재구매를 할 수 있도록 하며 본 서비스는 구매 등록일로부터 3년 이내로 기한이 한정됩니다.

WARRANTY: FRAMESET (2 YEARS) / PAINT (1 YEAR)

구매후 2개월내로 Officine Mattio 워런트 섹션에서 프레임 등록을 할 경우 보증기간을 1년 추가 연장하여 3년을 적용해드립니다.

원산지: 100% MADE IN ITALY

SL COMP - ENDURANCE / FRONT 40MM REAR 35MM

PRODUCT CONCEPT

The SL COMP stands out as the more versatile version of the SL series.While maintaining the distinctive quality and design of Officine Mattio, this bike offers greater comfort, making it more stable and comfortable over long distances.Designed for those looking for a smooth and pleasant ride, ideal for those who love to travel long distances and prefer comfort.

CHARACTERISTICS

• ACCERLATION: 90%
• AERODYNAMICS: 95%
• KOM PERFORMANCE: 100%
• HANDLING: 100%
• LIGHTNESS: 95%
• COMFORT: 100%
• DRIVING PLEASURE: 100%
• ELEGANCE: 100%

SPECIFICATIONS

• MATERIAL: CARBONIO TORAYCA T800
• WEIGHT: 790 gram (M Size, Not Painted)
• GEOMETRY: STANDARD (XS, S, M, L, XL)
• COLORS: STANDARD / CUSTOM
• FORK: OM SL – 420 gram
• HEAD TUBE: 1 1/2" – 1 1/2"
• BOTTOM BRACKET: PF 386 EVO
• SEATPOST: Ø 27.2 mm
• BRAKES: DB - FLAT MOUNT
• CABLE ROUTING: INTEGRATED
• TIRE CLEARANCE: FRONT 40mm / REAR 35mm

IN THE BOX OF A FRAMESET

• SL COMP FRAME
• OM SL FORK
• OM HEADSET
• OM AXLE SET
• DEDA SUPERLEGGERO SEATPOST (POB)
• OM INTERGRATED HANDLEBAR (WIDTH: 36, 38, 40, 42CM / LENGTH: 90, 100, 110, 120MM)

THE COMPLETE BIKE BUILD-UP GROUPSETS

• SHIMANO ULTEGRA Di2
• SHIMANO DURACE Di2
• SRAM FORCE AXS
• SRAM RED AXS
• CAMPAGNOLO SUPER RECORD 13S
• ASK FOR THE DETAILS FROM DEALERS

STANDARD GEOMETRY

• A Horizontal top tube length (mm)
• B Measured size (mm)
• C Seat tube angle
• D Head tube angle
• E Chainstay length (mm)
• F Fork rake (mm)
• H Wheelbase (mm)
• I Trail (mm)
• J Standover at top tube/midpoint (mm)
• K Bottom bracket drop (mm)
• L Front center distance (mm)
• M Head tube lenght (mm)
• N Stack (mm)
• O Reach (mm)
• HT Axle to crown (mm)
• H Min: Height Minimum (cm)
• H Max: Height Maximum (cm)

CRASH REPLACEMENT

We also want to support you in the event of a crash with consequent frame breakage, which is why we offer you a 30% discount on the purchase of a new Officine Mattio frame or fork to benefit from this opportunity, the frame must be registered. The discount will be applied to owners of frames up to 3 years old from the date of registration.

WARRANTY: FRAMESET (2 YEARS) / PAINT (1 YEAR)

If you register your Officine Mattio frame on the official OM website ("Warranty" section), within 2 months of purchase, the warranty will be extended by 1 year.

100% MADE IN ITALY
