SANTIAGO AC FRAMESET - STEEL GRAVEL / 700X47C - 650BX50C

SANTIAGO AC - STEEL GRAVEL / COLUMBUS SPIRIT HSS / 700X47C - 650BX50C

PRODUCT CONCEPT

Officine Mattio Santiago AC 모델은 사이클로크로스의 강인한 전통에 영감을 받아 디자인된 모델로 강성(strength)으로 대표되는 이태리 Columbus Spirit Steel 소재로 진흙길에서 모래길 심지어 개울길까지 어떠한 도전도 극복할 수 있도록 디자인되었다. 이 구조는 내구성(durability)과 함께 도전적인 라이더들의 필요들을 완벽하게 대응할 수 있는 대응성(versatility)을 가지기에 성능과 안전성의 타협없이 새로운 지평을 도전할 수 있게 해준다.

PRODUCT NEWS

https://www.4actionsport.it/officine-mattio-santiago-ac-la-bici-in-acciaio/

FEATURES

• ACCERLATION: 65%
• AERODYNAMICS: 70%
• KOM PERFORMANCE: 65%
• HANDLING: 90%
• LIGHTNESS: 70%
• COMFORT: 100%
• DRIVING PLEASURE: 100%
• ELEGANCE: 95%

SPECIFICATIONS

• MATERIAL: Steel - COLUMBUS SPIRIT HSS
• WEIGHT: 1,890 gram (M Size, Not Painted)
• GEOMETRY: STANDARD (XS, S, M, L, XL) - MADE TO MEASURE
• COLORS: STANDARD / CUSTOM
• FORK: OM GRAVEL
• HEAD TUBE: OVERSIZE 46mm
• BOTTOM BRACKET: T47 with BSA adapter
• SEATPOST: Ø 27.2 mm
• BRAKES: DB - FLAT MOUNT
• CABLE ROUTING: EXTERNAL for GEARS / INTERNALfor BRAKES
• TIRE CLEARANCE: 700X47C - 650BX50C
• OPTIONS: BB: BSA, BB30, ITA, PF 86.5*41, PF30 / Head tube for integrated headset / Cable routing optimization (etap, Di2, EPS, mechanical)

IN THE BOX OF A FRAMESET

• A FRAME SET
• A HEADSET
• AN AXLE SET

THE COMPLETE BIKE BUILD-UP

• 완성차 조립의 경우 수입사와 구체적인 논의를 통해 결정하세요.

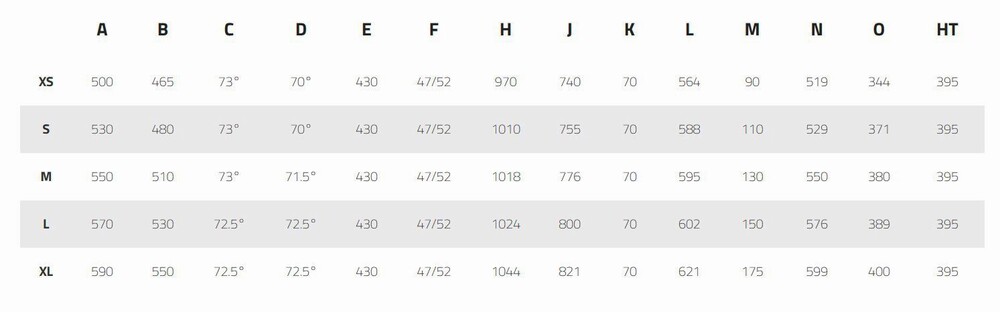

STANDARD GEOMETRY

• A Horizontal top tube length (mm)
• B Measured size (mm)
• C Seat tube angle
• D Head tube angle
• E Chainstay length (mm)
• F Fork rake (mm)
• H Wheelbase (mm)
• I Trail (mm)
• J Standover at top tube/midpoint (mm)
• K Bottom bracket drop (mm)
• L Front center distance (mm)
• M Head tube lenght (mm)
• N Stack (mm)
• O Reach (mm)
• HT Axle to crown (mm)

CRASH REPLACEMENT

프레임 파손이 생길 경우 첫 구매자분에게 본사 사이트에 프레임 등록을 했을 경우 30% 할인으로 재구매를 할 수 있도록 하며 본 서비스는 구매 등록일로부터 3년 이내로 기한이 한정됩니다.

WARRANTY: FRAMESET (2 YEARS) / PAINT (1 YEAR)

구매후 2개월내로 Officine Mattio 워런트 섹션에서 프레임 등록을 할 경우 보증기간을 1년 추가 연장하여 3년을 적용해드립니다.

원산지: 100% MADE IN ITALY

SANTIAGO AC - STEEL GRAVEL / COLUMBUS SPIRIT HSS / 700X47C - 650BX50C

PRODUCT CONCEPT

The Santiago is synonymous with adventure. Its multifaceted nature makes it the perfect travel companion, whatever the destination is. The steel allowed us to create a geometry which relates to the cyclocross tradition. It is not rare for a Santiago to face mud, sand and water.

FEATURES

• ACCERLATION: 65%
• AERODYNAMICS: 70%
• KOM PERFORMANCE: 65%
• HANDLING: 90%
• LIGHTNESS: 70%
• COMFORT: 100%
• DRIVING PLEASURE: 100%
• ELEGANCE: 95%

SPECIFICATIONS

• MATERIAL: Steel - COLUMBUS SPIRIT HSS
• WEIGHT: 1,890 gram (M Size, Not Painted)
• GEOMETRY: STANDARD (XS, S, M, L, XL) - MADE TO MEASURE
• COLORS: STANDARD / CUSTOM
• FORK: OM GRAVEL
• HEAD TUBE: OVERSIZE 46mm
• BOTTOM BRACKET: T47 with BSA adapter
• SEATPOST: Ø 27.2 mm
• BRAKES: DB - FLAT MOUNT
• CABLE ROUTING: EXTERNAL for GEARS / INTERNALfor BRAKES
• TIRE CLEARANCE: 700X47C - 650BX50C
• OPTIONS: BB: BSA, BB30, ITA, PF 86.5*41, PF30 / Head tube for integrated headset / Cable routing optimization (etap, Di2, EPS, mechanical)

IN THE BOX OF A FRAMESET

• A FRAME SET
• A HEADSET
• AN AXLE SET

STANDARD GEOMETRY

• A Horizontal top tube length (mm)
• B Measured size (mm)
• C Seat tube angle
• D Head tube angle
• E Chainstay length (mm)
• F Fork rake (mm)
• H Wheelbase (mm)
• I Trail (mm)
• J Standover at top tube/midpoint (mm)
• K Bottom bracket drop (mm)
• L Front center distance (mm)
• M Head tube lenght (mm)
• N Stack (mm)
• O Reach (mm)
• HT Axle to crown (mm)

CRASH REPLACEMENT

We also want to support you in the event of a crash with consequent frame breakage, which is why we offer you a 30% discount on the purchase of a new Officine Mattio frame or fork to benefit from this opportunity, the frame must be registered. The discount will be applied to owners of frames up to 3 years old from the date of registration.

WARRANTY: FRAMESET (2 YEARS) / PAINT (1 YEAR)

If you register your Officine Mattio frame on the official OM website ("Warranty" section), within 2 months of purchase, the warranty will be extended by 1 year.

100% MADE IN ITALY
