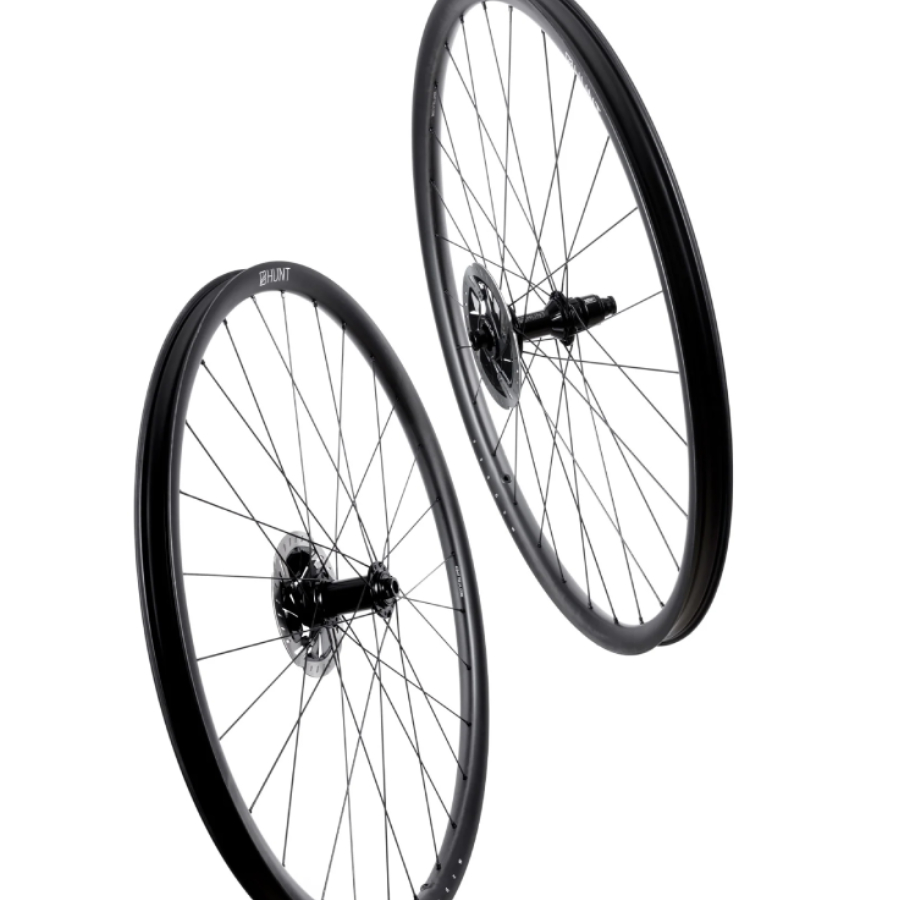

HUNT 25 CARBON GRAVEL X-WIDE WHEELSET - 25 D X 32 W / H RATCHET SGL 36T HUB

HUNT 25 CARBON GRAVEL WHEELSET - TUBELESS READY

H_CORE REINFORCED CARBON LAYUP

AXLE OPTIONS - Front: QR, Bolt thru 12/15, Rear: QR, Bolt thru 12x142, 12x135, 10x135

25 DEEP | 32 WIDE EXT | 27 WIDE INT | 1,472G I HOOKLESS I H RATCHET SGL 36T HUB

THE PURPOSE

The 25 Carbon Gravel X-Wide was engineered to thrive where adventure begins and pavement ends. Reinforced with our proven H_Core carbon technology, borrowed from our mountain bike wheel, it’s designed for wide gravel and up to 2.5" MTB tyres, loaded bikepacking setups, and demanding singletrack. With a durable build with a weight of just 1472g and 27mm internal rim width, it strikes the balance between rugged capability and all-day efficiency. For ultimate compatibility, we now offer this wheelset with Boost spacing allowing you to go further, ride harder, and leave the worry behind.

FEATURES

FEATURES

RIMS: H_Core reinforcement technology increases impact resistance significantly, resulting in the strongest gravel rims on the market. The 27mm-wide internal profile enhances strength and durability, with a reinforced layup and oversized sidewall dimensions to reduce the risk of pinch flats and enhance impact resistance. The 25 Carbon Gravel X-Wide also features an asymmetric rim profile with compliance and impact resistance top of mind so you can worry less.

RELIABLE  AND FAST ENGAGING HUB: The HUNT H_Ratchet 36T SGL hubset provides a 10-degree engagement angle with improved durability, offering increased engagement surface area while using less shell materials relative to our race-proven pawl-based systems. Ships with Dumonde Tech Pro X freehub grease applied for long service life and contamination resistance. Available in Boost and non-Boost spacing.

ROBUST WHEEL BUILD: A 28 spoke count front and rear ensures a more even force distribution across the wheel, reducing strain on individual components. This is paired with brass nipples, creating a wheelset ideal for fully loaded setups and rough terrain where durability matters most.

IMPROVED TRACTION AND ROLLING RESISTANCE: Enhanced comfort, better control, and lower rolling resistance, the HUNT 25 Carbon Gravel X-Wide is engineered with a 27mm internal rim width to accommodate tyres up to 65mm.

ENHANCED SPOKE HOLE DURABILITY: Engineered with angular spoke patches to reduce stress at the spoke holes and provide accurate nipple alignment for a stronger, more reliable build.

FREEHUB BODY: Hunt는 내구성을 매우 중시하기때문에 H_CERAMIK coating을 개발하여 탁월한 내구성을 확보하고 다른 일반적인 프리허브 바디에서 발견되는 카세트에 의한 damages를 방지하도록 하였다.

BEARINGS: 휠의 심장이라고 할 수 있는 베어링은 그만큼 많은 투자를 할 가치가 있는 부품이다. Hunt는 일본 EZO가 제작한 고급 정밀 smooth-rolling sealed cartridge bearings을 사용한다.

SPOKES: 최고급 라인인 Pillar Spoke Re-enforcement PSR XTRA model을 사용한다. 이 butted blade aero spokes는 더 가볍고 텐션을 유지하고 피로도 저항성을 향상시킬 수 있도록 더 높은 탄성을 제공한다. 이 PSR J-bend spokes는 높은 스트레스가 가해지는 spoke head 부위의 지름을 2.2mm로 하여 강성을 높였으며 사각 헤드를 가진 nipples을 적용하여 보다 정밀한 텐션 조정이 가능하도록 하였다.

NIPPLES: Brass nipples are used for their corrosion resistance, proven durability, especially in adverse conditions and help maintain consistent spoke tension, removing the risk of seizing. Every detail is designed with your riding in mind.

SPECS OVERVIEW

• Rims | Preformed angular spoke patches to decrease loading at spoke holes and provide excellent nipple alignment. H_lock tyre security channel. Hookless TSS profile for optimised weight and strength
• Tires | HUNT recommends a 45-60mm tyre for best performance, tyre widths between 35mm and 65mm are also safe to use. Only use tyres suitable for hookless (TSS) rims. If unsure, please contact the tyre manufacturer. Leading brands, including Schwalbe, Continental and Vittoria, have many tyres suitable for hookless TSS rims.
• Hubs | 새로 개발된 H_Ratchet 36T 싱글 사이즈 hubset으로 향상된 내구성을 가진 10도 체결각도를 가진다. 확장된 체결 면적과 기존 pawl system 대비 적은 부품들을 사용한다. 모든 그래블 바이크를 위해 15mm thru-axles도 지원한다.
• Axles | Non-Boost: Front: 12x100mm Thru-Axle, 15x100mm Thru-Axle, Quick Release 9x100mm / Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm; Boost: Front: 12x110mm Thru-Axle, 15x110mm Thru-Axle / Rear: 12x148mm Thru-Axle.  *Shimano Microspline and Campagnolo CN3W is only available in 12x142mm/148mm.
• Weight | 1,472g
• Max Tire Pressure I 35~39mm(62 PSI), 40~44(51), 45~54(44), 55~64(36) You must not exceed the maximum tyre pressure limits.
• Maximum Rider Weight: 145kg (including luggages). 만약 라이더의 무게가 120Kgs을 넘을 경우 정기적으로 미케닉을 통해 휠을 체크해야하며 피로도를 줄이기 위해서 최대  90psi 이하로 공기압을 적용하는 것을 권장한다.

IN THE BOX

• Hunt 25 Carbon Gravel X-Wide Disc Wheelset
• Hunt Black Shield tubeless tape fitted to wheels.
• The axle adapters needed for your bike (구매시 axle adapter 기재 필요)
• Cassette spacer for 8/9/10 speed
• Tubeless Valves (45mm)
• Spare of each spoke plus nipples
• Quality control card signed by your wheel builder

WARRANTY: 3 YEARS

DESIGNED IN THE UK AND MADE IN TAIWAN

HUNT 25 CARBON GRAVEL WHEELSET - TUBELESS READY

H_CORE REINFORCED CARBON LAYUP

AXLE OPTIONS - Front: QR, Bolt thru 12/15, Rear: QR, Bolt thru 12x142, 12x135, 10x135

25 DEEP | 32 WIDE EXT | 27 WIDE INT | 1,472G I HOOKLESS I H RATCHET SGL 36T HUB

THE PURPOSE

The 25 Carbon Gravel X-Wide was engineered to thrive where adventure begins and pavement ends. Reinforced with our proven H_Core carbon technology, borrowed from our mountain bike wheel, it’s designed for wide gravel and up to 2.5" MTB tyres, loaded bikepacking setups, and demanding singletrack. With a durable build with a weight of just 1472g and 27mm internal rim width, it strikes the balance between rugged capability and all-day efficiency. For ultimate compatibility, we now offer this wheelset with Boost spacing allowing you to go further, ride harder, and leave the worry behind.

FEATURES

RIMS: H_Core reinforcement technology increases impact resistance significantly, resulting in the strongest gravel rims on the market. The 27mm-wide internal profile enhances strength and durability, with a reinforced layup and oversized sidewall dimensions to reduce the risk of pinch flats and enhance impact resistance. The 25 Carbon Gravel X-Wide also features an asymmetric rim profile with compliance and impact resistance top of mind so you can worry less.

RELIABLE  AND FAST ENGAGING HUB: The HUNT H_Ratchet 36T SGL hubset provides a 10-degree engagement angle with improved durability, offering increased engagement surface area while using less shell materials relative to our race-proven pawl-based systems. Ships with Dumonde Tech Pro X freehub grease applied for long service life and contamination resistance. Available in Boost and non-Boost spacing.

ROBUST WHEEL BUILD: A 28 spoke count front and rear ensures a more even force distribution across the wheel, reducing strain on individual components. This is paired with brass nipples, creating a wheelset ideal for fully loaded setups and rough terrain where durability matters most.

IMPROVED TRACTION AND ROLLING RESISTANCE: Enhanced comfort, better control, and lower rolling resistance, the HUNT 25 Carbon Gravel X-Wide is engineered with a 27mm internal rim width to accommodate tyres up to 65mm.

ENHANCED SPOKE HOLE DURABILITY: Engineered with angular spoke patches to reduce stress at the spoke holes and provide accurate nipple alignment for a stronger, more reliable build.

FREEHUB BODY: Durability is a theme for HUNT as time and money you spend fixing is time and money you cannot spend riding or upgrading your bikes. As a result, we've developed the H_CERAMIK coating to provide excellent durability and protect against cassette sprocket damage often seen on standard alloy freehub bodies.

NIPPLES: Brass nipples are used for their corrosion resistance, proven durability, especially in adverse conditions and help maintain consistent spoke tension, removing the risk of seizing. Every detail is designed with your riding in mind.

SPECS OVERVIEW

• Rims | Preformed angular spoke patches to decrease loading at spoke holes and provide excellent nipple alignment. H_lock tyre security channel. Hookless TSS profile for optimised weight and strength
• Tires | HUNT recommends a 45-60mm tyre for best performance, tyre widths between 35mm and 65mm are also safe to use. Only use tyres suitable for hookless (TSS) rims. If unsure, please contact the tyre manufacturer. Leading brands, including Schwalbe, Continental and Vittoria, have many tyres suitable for hookless TSS rims.
• Hubs | H_Ratchet 36T SGL HUB. A 10-degree engagement angle with improved durability, offering increased engagement surface area while using less shell materials relative to our race-proven pawl-based systems. Compatible with 15mm thru-axles for adaptability for all modern gravel bikes. with H_CERAMIK coating for enhanced durability. Centre-lock disc mount.
• Spokes | Pillar PSR reinforced spokes with Black for increased wear and corrosion resistance.
• Axles | Non-Boost: Front: 12x100mm Thru-Axle, 15x100mm Thru-Axle, Quick Release 9x100mm / Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm; Boost: Front: 12x110mm Thru-Axle, 15x110mm Thru-Axle / Rear: 12x148mm Thru-Axle.  *Shimano Microspline and Campagnolo CN3W is only available in 12x142mm/148mm.
• Weight | 1,472g
• Max Tire Pressure I 35~39mm(62 PSI), 40~44(51), 45~54(44), 55~64(36) You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
• Max Rider Weight I 145KG (Including luggage), if a rider weight is over 120KG, check the wheels regularly by professional mechanic.

IN THE BOX

• Hunt 25 Carbon Gravel Disc X-Wide Hookless Wheelset
• Hunt Black Shield tubeless tape fitted to wheels.
• The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.
• Cassette spacer for 8/9/10 speed
• Tubeless Valves (45mm)
• Spare of each spoke plus nipples
• Quality control card signed by your wheel builder

WARRANTY: 3 YEARS

DESIGNED IN THE UK AND MADE IN TAIWAN
