DEFINITION INTEGRAL BIKES - ALL-ROAD / SRAM / DEDACCIAI ALUMINIUM / UP TO 35MM

DEFINITION INTEGRAL BIKES -  ALL-ROAD / DEDACCIAI ALUMINIUM / UP TO 35MM

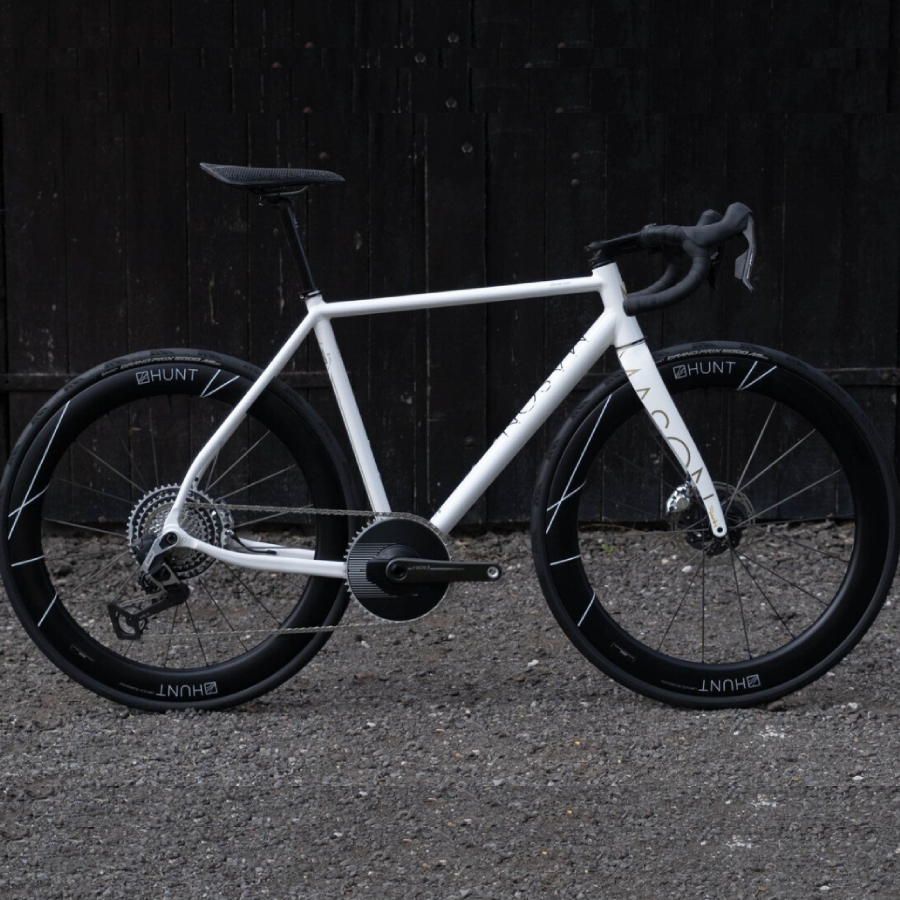

The latest evolution of MASON Definition, tailored to optimise speedy handling and clean cable-free lines

CONCEPT

알루미늄 MASON Definition3는 다양한 노면에서 빠르고 멀리 달릴 수 있는 모델인데 (Fast Far bicycle) 그 모델을 업데이트한 새로운 Definition Integrale 모델은 짧아진 체인스테이, 새로운 포크, 풀인터널 케이블링과 전동구동계에 최적화되어 라이딩 팩을 선도할 수 있도록 개발되었다. 이러한 변화는 이미 티타늄 MASON Aspect 모델에서 선보였던 것들이며 초도 50대의 Definition Integrale Launch Edition frame의 경우 개별 제조넘버와 특별한 데칼 디테일링 그리고 브라스 헤드뱃지로 한정 공급되며 양산 모델은 텅스텐 마감 헤드 뱃지로 제공되며 개별 제조넘버와 출시 에디션 데칼은 제공되지 않는다.

PRODUCT VIDEO

https://www.youtube.com/watch?v=9uY_lhCF9vI

LAUNCHING NEWS

https://road.cc/content/tech-news/mason-definition-integrale-sporty-evolution-alu-classic-316277

FEATURES

• 성능을 위한 새롭게 제조된 커스텀 Dedacciai aluminium frame 적용
• Definition3보다 더 낮아진 crown height와 stack height로 보다 스포티한 포지션으로 빠르고 공략적인 감각 제공
• MASON x Deda AR tapered carbon fork가 새롭게 적용. 상단보다 하단이 넓은 테이퍼드 헤드튜브내에 완전히 호스들이 통합되도록 Deda Elementi와 함께 개발한 카본 포크로 최대 35mm 타이어 장착과 머드가드 마운트와 호스와 다이나모 케이블 내부 배선이 가능하다.
• 진보적인 지오메트리 적용으로 모든 사이즈에서 보다 자신감있고 직관적이며 편안한 핸들링을 제공한다.
• 정밀한 피팅을 위한 8개 사이즈 프레임 제공: 48 ~ 62cm
• 전동 변속구동계에 최적화된 프레임세트
• MASON 독자 디자인한 UDH-ready 드롭아웃 적용
• 타이어 완전 커버하는 머드가드와 완전한 호환 확보
• 최대 타이어 클리어런스: 700C x 35mm [약 머드 장착시 700C x 32mm] / 휠과 타이어 조합에 따라 상이할 수 있음.
• 체인스테이를 통한 케이블과 호스의 끊김없는 배선을 위한 세밀하게 조율된 내부 배선 적용 (internal routing)
• MASON 'ThruBB' 내부 배선 bottom bracket shell 적용
• 2가지 신규 색상 제공: Process White / Prism Green

BUILDING COMPONENTS - MASON DEFINITION INTEGRAL X SRAM

• FRAME: Custom Dedacciai aluminium frame, refined and reworked for performance riding
• HEADSET: Deda In-5 Black / CrisKing Dropset2 (Gross Black, Matt Black, Midnight Blue)
• FRAMESET COLOR: Process White / Prism Green
• GROUPSET: SRAM RIVAL 2X AXS 12S / FORCE 1X XPLR AXS 13S / FORCE 2X AXS 12S / RED 1X XPLR AXS 13S / RIVAL E1 1X XPLR AXS 13S / RIVAL 2X AXS 12S / FORCE E1 1X XPLR AXS 13S / FORCE E1 2X AXS 12S / RED E1 1X XPLR AXS 13S / RED E1 2X AXS 12S
• CRANKET: SRAM RIVAL 2X AXS (35-48T) / FORCE 1X AXS 42T / FORCE 2X AXS (35-48T) / RED 1X AXS 42T / RIVAL E1 AXS 42T / RIVAL E1 2X AXS (35-48T) / FORCE E1 AXS 42T / FORCE E1 2X AXS (35-48T) / RED E1 AXS 42T / RED E1 2X AXS (35-48T)
• WHEELSET: Hunt 4Season All-Road Disc / Hunt 30 Carbon Disc / Hunt Sub50 Limitless Aero / Hunt 44 Aerodynamicist / Hunt 42 Limitless Gravel / Hunt 40 Carbon Gravel Race / Hunt 40 Carbon Gravel Race Dynamo / DT Swiss GR 1600 Spline / DT Swiss GR 1600 Dynamo / DT Swiss GRC 1400 Dicut / DT Swiss ERC 1400 Dicut /  DT Swiss ERC 1100 Dicut
• TIRE: Continental Grand Prix TR 30 / GP5000 28 (Black or Tan), 30 / GP5000 S TR 28, 30, 32 / GP5000 AS TR 32, 35 / Schwalbe Pro-One 30 / G-One 30, 35 / Vittoria Pro Control G2.0 32, 24 (Tan)
• BOTTOM BRACKET: SRAM DUB / CrisKing ThreadFit30 (Gross Black, Matt Black, Matt Slate)
• HANDLEBAR: Deda Zero2 DCR (40~46cm) / SuperZero Alloy DCR (40~46cm) / SuperZero Gravel Alloy DCR (40~46cm) / SuperZero RS Carbon DCR (42~46cm)
• STEM: Deda Zero2 (BoB . 60, 70mm) / ZERO100 Performance (BoB / 80~130mm) / SuperBox DCR (70~130mm) / SuperZero (BoB / 82Degree / 80~130mm) / SuperZero RS (82Degree / 90~120mm)
• SADDLE: Fizik Tempo Argo R5 / R3 / Vento Argo Adaptive R3 / R1
• TUBELESS SETUP: No or Yes
• BRAKE LEVER SETUP: US, EU, Rest of the World (Right - Rear / Left - Front) / UK, JP, AUS, NZ (Right - Front / Left - Rear)
• MASON LUMINANCE UPGRADE OPTIONS: No or SuperNova Pro2 Front + E3 Rear / SineWave Beacon Front + E3 Rear
• MUDGUARD OPTIONS: No or SKS Bluemels 35mm (max 30mm tires) / PDW Full Metal Fenders 37mm (max 30mm tires)
• FRAME PROTECTION OPIONS: No or InvisiFrame Film (2~3 Week Lead Time)
• BIKE WEIGHT: 8.2kg (SRAM RED 54cm XPLR, 50T Chainring & HUNT 60 Limitless wheels)

ESSENTIAL DIMENSIONS

• ROTOR SIZE: Ø140 또는 Ø160mm rotor를 장착할 수 있으며 만약 Shimano IceTech 로터를 사용한다면 Ø140mm 로터를 앞뒤로 사용하는 것도 좋다. 키가 큰 라이더 또는 긴 다운힐을 위해서는 Ø160 로터 사용을 시마노에서는 권장하며 SRAM에서는 앞뒤로 Ø160mm 장착을 추천한다. 케이블 브레이크를 사용하는 경우 전륜에는 Ø160mm 로터 사용을 추천한다. 후륜에는 160mm 로터가 최대치이다.
• CALIPER TYPE: 전후 모두 flat-mount 캘리퍼를 장착하며 시마노 시스템 도는 TRP Spyre같은 기계식 경우에도 문제없이 장착이 가능하다. TRP HyRd같은 몇몇 부피가 있는 캘리퍼의 경우 작은 사이즈의 프레임에서 호환 문제가 있을 수 있다.
• FLAT-MOUNT MOUNTING BOLT LENGTHS: 전륜경우 15mm, 후륜경우 SRAM: 22mm (2mm spacer 사용) Shimano: 28mm (2mm spacer 사용). 스페이서와 캘리퍼 마운팅에 대한 추가 궁금증은 문의하시기 바랍니다.
• WHEELS: 전륜 12mm Thru-axle / 전륜 액슬폭: 100mm / 후륜 12mm Thru-axle / 후륜 액슬폭: 142mm. 액슬 길이 및 나사선: 전륜 - 120mm/1.5P. 후륜 - 160mm/1.5P.
• MAX TYRE WIDTH WITH MUDGUARD: 32mm
• MAX TYRE WIDTH WITHOUT MUDGUARD: 35mm (트레드가 없는 타이어 기준)
• SEAT POST Ø: Frame size 48 to 58cm: 27.2mm. Frame size 60 & 62cm: 31.6mm.
• SEAT CLAMP Ø: Frame size 48 to 58cm: 31.8mm. Frame size 60 & 62cm: 34.9mm.
• FRONT MECH Ø: Frame size 48 to 58cm: 31.8mm. Frame size 60 & 62cm: 34.9mm.
• BB TYPE: 68mm shell width. BSA threaded. 'shielded' BB axle를 사용하세요.
• HEADSET TYPE: 인티그레이티드 상단 41.8Ø, 하단 51.8Ø, 테이퍼 헤드 튜브용. 앵귤러 컨택 베어링. 헤드튜브 시트 앵글 45º.
• STACK-WASHER MAXIMUM: 스템 하단 최대 40mm. 초과하여 사용할 경우 워런티 적용 제외

GEOMETRY AND SIZING

• GEOMETRY: https://masoncycles.cc/products/definition-integrale-frameset-2025

• SIZING: 라이더의 신장을 기반으로한 사이즈 가이드라인일 뿐이며 바이크 피팅의 시작점일 뿐이며 라이딩 방식이나 메이슨 바이크 모델에 따라서 맞는 사이즈를 선택하는데 추가적인 많은 요소들이 있습니다. 원하시는 경우 전문적인 피팅 서비스를 통해 원하시는 사이즈를 선택하는 것을 추천드립니다.

THE PROVIDED PARTS ALONG THE FRAMESET:

• Deda Headset
• Expander-bung + Top-cap for fork
• M∆SON Macro clamp
• Marine Grade Stainless bolts x 12
• M∆SON 3D printed Structural Nylon BB guide inc screws
• M∆SON 3D printed Structural Nylon mudguard mounts for fork x 2
• Cable liner for front mech
• Foam tubing for internal routing
• Di2 rubber grommet 45º x 3
• Rubber blanking grommet x 2

보증기간: FRAMESET (5년 / 첫 구매자) / PAINTING (2년)

원산지: DESIGNED IN THE UK / MADE IN ITALY

DEFINITION INTEGRAL FRAMESET -  ALL-ROAD / DEDACCIAI ALUMINIUM / UP TO 35MM

The latest evolution of our unique MASON Definition, tailored to optimise speedy handling and clean cable-free lines

CONCEPT

The aluminium MASON Definition is our Fast Far bicycle for multi-surface road riding. Improved and updated to keep it ahead of the pack, the new Definition Integrale offers an alternative to the Definition3, with shortened chainstays, a new fork, and fully integrated routing that conceals cables and hoses within the cockpit of your bicycle. Optimised for electronic groupsets, our approach to integration has already transformed the titanium MASON Aspect. Now it’s time for the aluminium Definition to offer this streamlined, focussed Integrale option.

50 Definition Integrale Launch Edition frames will be finished as shown, with individual numbering, special Launch Edition detailing and brass-finish head badge. Production models will feature a tungsten-finish headbadge and will not have individual numbers or Launch Edition decals.

FEATURES

• Custom Dedacciai aluminium frame, refined and reworked for performance riding
• Lower crown height and stack height than Definition3, giving a sportier position with a fast, attacking feel
• MASON x Deda AR tapered carbon fork, designed with Deda Elementi to bring full integration of hoses within a tapered head tube. Clearance for up to 35mm tyres, mudguard mounts, internal routing for hose and dynamo cable
• Progressive geometry, keeping the handling confident, direct and comfortable across all sizes, in tune with rider height and build
• 8 sizes for precise fit: 48 to 62cm
• Optimised for electronic shifting only
• MASON-designed UDH-ready dropouts
• Fully compatible with full-length mudguards
• Max tyre clearance: 700C x 35mm [approx. 700C x 32mm with mudguards] – dependent on wheel/tyre combination
• Refined internal routing for seamless flow of cables and hoses through chainstays
• MASON 'ThruBB' internally routed bottom bracket shell
• 2 new finishes: ProcessWhite and PrismGreen

BUILDING COMPONENTS - MASON DEFINITION INTEGRAL X SRAM

• FRAME: Custom Dedacciai aluminium frame, refined and reworked for performance riding
• HEADSET: Deda In-5 Black / CrisKing Dropset2 (Gross Black, Matt Black, Midnight Blue)
• FRAMESET COLOR: Process White / Prism Green
• GROUPSET: SRAM RIVAL 2X AXS 12S / FORCE 1X XPLR AXS 13S / FORCE 2X AXS 12S / RED 1X XPLR AXS 13S / RIVAL E1 1X XPLR AXS 13S / RIVAL 2X AXS 12S / FORCE E1 1X XPLR AXS 13S / FORCE E1 2X AXS 12S / RED E1 1X XPLR AXS 13S / RED E1 2X AXS 12S
• CRANKET: SRAM RIVAL 2X AXS (35-48T) / FORCE 1X AXS 42T / FORCE 2X AXS (35-48T) / RED 1X AXS 42T / RIVAL E1 AXS 42T / RIVAL E1 2X AXS (35-48T) / FORCE E1 AXS 42T / FORCE E1 2X AXS (35-48T) / RED E1 AXS 42T / RED E1 2X AXS (35-48T)
• WHEELSET: Hunt 4Season All-Road Disc / Hunt 30 Carbon Disc / Hunt Sub50 Limitless Aero / Hunt 44 Aerodynamicist / Hunt 42 Limitless Gravel / Hunt 40 Carbon Gravel Race / Hunt 40 Carbon Gravel Race Dynamo / DT Swiss GR 1600 Spline / DT Swiss GR 1600 Dynamo / DT Swiss GRC 1400 Dicut / DT Swiss ERC 1400 Dicut /  DT Swiss ERC 1100 Dicut
• TIRE: Continental Grand Prix TR 30 / GP5000 28 (Black or Tan), 30 / GP5000 S TR 28, 30, 32 / GP5000 AS TR 32, 35 / Schwalbe Pro-One 30 / G-One 30, 35 / Vittoria Pro Control G2.0 32, 24 (Tan)
• BOTTOM BRACKET: SRAM DUB / CrisKing ThreadFit30 (Gross Black, Matt Black, Matt Slate)
• HANDLEBAR: Deda Zero2 DCR (40~46cm) / SuperZero Alloy DCR (40~46cm) / SuperZero Gravel Alloy DCR (40~46cm) / SuperZero RS Carbon DCR (42~46cm)
• STEM: Deda Zero2 (BoB . 60, 70mm) / ZERO100 Performance (BoB / 80~130mm) / SuperBox DCR (70~130mm) / SuperZero (BoB / 82Degree / 80~130mm) / SuperZero RS (82Degree / 90~120mm)
• SADDLE: Fizik Tempo Argo R5 / R3 / Vento Argo Adaptive R3 / R1
• TUBELESS SETUP: No or Yes
• BRAKE LEVER SETUP: US, EU, Rest of the World (Right - Rear / Left - Front) / UK, JP, AUS, NZ (Right - Front / Left - Rear)
• MASON LUMINANCE UPGRADE OPTIONS: No or SuperNova Pro2 Front + E3 Rear / SineWave Beacon Front + E3 Rear
• MUDGUARD OPTIONS: No or SKS Bluemels 35mm (max 30mm tires) / PDW Full Metal Fenders 37mm (max 30mm tires)
• FRAME PROTECTION OPIONS: No or InvisiFrame Film (2~3 Week Lead Time)
• BIKE WEIGHT: 8.2kg (SRAM RED 54cm XPLR, 50T Chainring & HUNT 60 Limitless wheels)

ESSENTIAL DIMENSIONS

• ROTOR SIZE: The fork can take a Ø140 or Ø160mm rotor [using adaptor], if you are using Shimano IceTech rotors then Ø140mm rotors either end are fine in normal use, although Shimano recommend Ø160 both ends for larger riders or extended long descents, especially when loaded. SRAM recommend Ø160mm front/rear. A Ø160mm up front is best if you are using cable braking. 160mm is the maximum recommended diameter for the rear.
• CALIPER TYPE: Frames are fitted with the flat-mount front and flat-mount rear. There are no clearance issues with modern Shimano systems or mechanical systems such as ‘TRP Spyre’. Some bulky systems like the ‘TRP HyRd’ may have compatibility issues on smaller size frames.
• FLAT-MOUNT MOUNTING BOLT LENGTHS: FRONT - 15mm. REAR - SRAM: 22mm, using 2mm spacer under bolt head. Shimano: 28mm, using 2mm spacer under bolt head. Please contact us using the 'Technical' dropdown if you require further information regarding spacers and caliper mounting.
• WHEELS: Ø12mm Thru-axle Front / Ø12mm Thru-axle rear. Front axle spacing: 100mm. Rear axle spacing: 142mm. Axle length/pitch: Front - 120mm/1.5P. Rear - 160mm/1.5P.
• MAX TYRE WIDTH WITH MUDGUARD: Max tyre width with mudguard: 32mm [Dependant on rim/tyre/mudguard combination].
• MAX TYRE WIDTH WITHOUT MUDGUARD: Max tyre width without mudguard: 35mm - untreaded. [Dependant on rim/tyre/mudguard combination].
• SEAT POST Ø: Frame size 48 to 58cm: 27.2mm. Frame size 60 & 62cm: 31.6mm.
• SEAT CLAMP Ø: Frame size 48 to 58cm: 31.8mm. Frame size 60 & 62cm: 34.9mm.
• FRONT MECH Ø: Frame size 48 to 58cm: 31.8mm. Frame size 60 & 62cm: 34.9mm.
• BB TYPE: 68mm shell width. BSA threaded. Use 'shielded' BB axle.
• HEADSET TYPE:  Integrated, 41.8Ø upper, 51.8Ø lower, for taper head tube. Angular Contact Bearings. The head-tube seat angle is 45º.
• STACK-WASHER MAXIMUM: 40mm below stem is max. recommended for carbon steerer. Warranty is void above this dimension.

GEOMETRY AND SIZING

• GEOMETRY: https://masoncycles.cc/products/definition-integrale-frameset-2025
• SIZING: This page gives you some guidelines based on rider height, but these are only a starting point for a proper bike fitting. There are of course many other factors to consider when choosing the right size for you and sizing advice will vary depending on your choice of model from the Mason range and the way that you intend to ride it. We're always here to help of course and would always recommend a professional bike fitting and visiting us for a ride on the Mason Cycles riverside gravel/country lanes test-loop if you can. There is further advice, based on specific models, below the height chart.

THE PROVIDED PARTS ALONG THE FRAMESET

• Deda Headset. Expander-bung + Top-cap for fork.
• M∆SON Macro clamp. Marine Grade Stainless bolts x 12.
• M∆SON 3D printed Structural Nylon BB guide inc screws.
• M∆SON 3D printed Structural Nylon mudguard mounts for fork x 2.
• Cable liner for front mech. Foam tubing for internal routing.
• Di2 rubber grommet 45º x 3.
• Rubber blanking grommet x 2.

WARRANTY: FRAMESET (5 YEARS / FIRST BUYER) / PAINTING (2 YEARS)

DESIGNED IN THE UK / MADE IN ITALY
