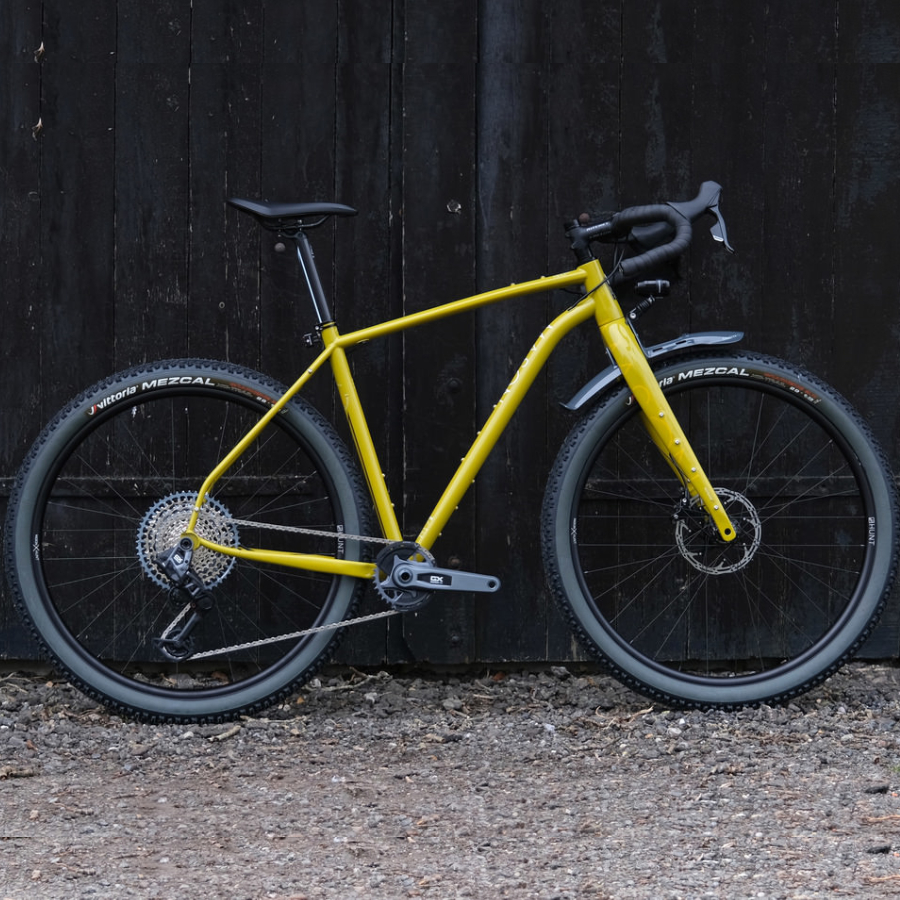

INSEARCHOF BIKES - ULTIMATE ADVENTURE / SRAM / 29X2.4”(60MM) & 27.5X2.8”(71MM)

INSEARCHOF (ISO) BIKES - ULTIMATE ADVENTURE / SHIMANO / 29X2.6”(66MM) & 27.5X2.9”(73MM) / BOOST STANDARD

"InSearchOf는 여전히 더 멀리 빠르게 대륙을 달리는 종류의 자전거이지만 새로운 진보적인 프레임과 포크 디자인을 채용하여 29 x 2.6” 또는 650b x 2.8 타이어까지 장착이 가능하다. 이로 인해 더 가파르고 더 거칠고 더 깊은 지형에서도 대응이 가능하도록 디자인되었다. 다수의 장착 포인트들, 맞춤형으로 제작된 짐받이 기능이 있는 프론트 머드가드, 특별한 랙 시스템, 160/180 flat-mount 브레이크, 100mm suspension 장착까지 가능한 지오메트리 등의 보다 험한 지형을 정복할 수 있도록 설계된 InSearchOf는 도전적이라는 단어가 너무나 잘 어울리는 프레임세트이다."  CyclingWeekly 10/10

REVIEW

https://www.youtube.com/watch?v=rCnbbGx1MMU

FEATURES

• 맞춤형으로 제작된 진보적인 Dedacciai ‘Zero’ Steel Butted tubing을  Top Tube, Down Tube, Seat Stays, Chain Stays에 적용하였고 Seat Tube에는 Reynolds 853 steel을 BB에는 Stainless Steel을 적용
• 드롭바 형식을 취한 마운틴 바이크 특징을 내포 자전거.
• MASON이 디자인하고 이태리에서 CNC로 제조된 UDH dropout 적용. direct-mount mechs과 호환.
• MASON이 디자인한 업데이트된 HotShoe2 carbon fork 적용. Shutter mudguard와 함께 사용할 수 있는 ‘Tri-Mount’ crown system, 다이나모 라이트 시스템을 위한 내부 배선, 랙과 머드가드 장착을 위한 업데이트된 eyelet positions 적용. 여러 위치들에 폭넓은 eyelets 배치로 최대한의 짐과 물통 장착 가능. 신규로 top tube eyelets 배치.
• 독특한 HotShoe 160/180mm flat-mount braking system 적용
• 기본 제공되는 HotShoe Fork 대신 산악 자전거에 사용되는 100mm suspension fork 장착도 가능한 지오메트리 적용하여 보다 험한 지형에도 대응하도록 디자인
• 최대 휠 사이즈: 29”(700C) 또는 27.5“(650B)
• 최대 타이어 폭: 29 x 2.6”(66mm) 또는 27.5 x 2.9”(73mm)
• 다운튜브 상단과 하단의 ‘Anything Cage‘ style 장착홀
• MASON 독자적인 'Shutter' Fender 적용; 독특한 짐받이 디자인을 가진 펜더, 2킬로그램 적재 가능(ISO Tested), 짐부담을 분산할 수 있어 보다 몸을 가볍게 해주고 헤드셋 보호 역할 수행
• Stealth Dropper 시트포스트 장착 가능

ESSENTIAL DIMENSIONS

• Rotor Size: Ø160mm 또는 Ø180mm rotor 장착 가능 [표준 140/160 어댑터 사용]. Mason Cycles에서 처음으로 리지드 포크용 160/180 Flat-Mount 표준 사용. 후륜 Ø160mm 장착시 적합한 flat-mount adapter 사용.
• Caliper Type: 기본적으로 Flat-Mount caliper 장착이 가능하나 전환 어댑터를 사용할 경우 Post-Mount caliper를 전륜과 후륜에 장착가능하다.
• Flat-Mount Mounting Bolt Lengths: FRONT - 15mm. REAR - SRAM: 17mm. Shimano: 23mm. MASON 바이크 모델에 따라 상이한 드롭아웃 디자인과 소재를 사용하기에 플랫마운트 캘리퍼 장착을 위한 볼트 길이는 상이합니다.
• Wheel Spacing: 산악자전거에 주로 적용되는 'BOOST' 표준 채용. 전륜은 110mm 후륜은 148mm로 더 넓은 클리어런스를 가져 보다 넓은 휠과 타이어 장착이 가능하다. 더 넓은 허브 테두리로 인해 훨씬 강직한 휠로 인해 핸들링의 향상을 가져오며 더 짧으면서 넓은 스테이들로 진보적인 지오메트리를 얻을 수 있다. 더 넓은 후륜 허브는 보다 다양한 체인링 옵션을 얻을 수 있게 해준다. .
• SwitchLever: 전륜 Ø15mm Thru-axle / 후륜 Ø12mm Thru-axle
• Front axle spacing: 110mm
• Rear axle spacing: 148mm
• Axle length/pitch: Front - 134mm/1.5TP/14TL. Rear - Pre Jan '25: 172mm/1.5TP/17TL. Post Jan '25: 178mm/1.0TP/14.5TL [udh frame].
• Max tyre size: 29" x 2.5" | 27.5" x 2.8".
• Min tyre size: 29" x 2.0" | 27.5" x 2.8".
• Seatpost: 31.6mm.
• Dropper-post: 31.6mm / Stealth-routed.
• Seat Clamp: 34.1mm
• Front Mech: InSearchOf is 1X 체인링만 사용. Drop bar shifter경우 MTB 리어 드레일러를 정확하게 변속하지 못하는 경우가 있을 수 있으며 시트튜브상의 볼트와 포트 위치와 장착 제한이 있을 수 있습니다.
• BB Type: Post Jan '25: T47 x 73mm shell. 'shielded' BB axle를 사용하세요. Pre Jan '25: 73mm shell width. BSA 나사선 방식.
• 1X Cranksets: 52mm chainline경우 3mm offset chainring 사용하세요. 55mm chainline경우 0mm offset chainring. Shimano - BOOST spacing crankset을 사용하세요.
• Max Single Ring: 34T with 52mm chainline. 36T with 55mm chainline.
• ISO 2.0 onwards [Jan 2025]: UDH ‘Universal derailleur Hanger’.
• Fork Dimensions: Crown height - 483mm [Equal to a typical 100mm travel XC suspension fork with 20% sag]. Offset - 50mm.
• Headset type: Integrated, 41.8Ø upper, 51.8Ø lower, for taper head tube. Angular Contact Bearings. The head-tube seat angle is 45º.
• Stack-washer maximum: 40mm 미만. 카본 스티어러 권장. 본 규격을 어길 경우 보증적용이 안됩니다.
• 'Shutter' Fender: 최대 허용 중량 2kg. MasonxVoile 20" 스트랩 사용 권장.
• TriMount: 최대 허용 중량 2kg. 16mm x 5mm 볼트 사용하세요.
• Mounting Bolt Torque: 4Nm.
• Accessory Cages: 각 사이드별 최대 허용 중량 3kg. 케이지 제조사의 장착 방법을 따르세요.
• Suspention Fork: 전형적인 100mm XC Suspension fork 사용을 위해 디자인된 프레임입니다. 최대 506mm crown height 사용가능. 위 규격내라고 하더라도 포크 제조사 데이타를 체크하세요. 더 긴 포크를 사용할 경우 보증에서 제외됩니다.
• Crown Clearance: 대부분의 현대적인 포크들을 위한 크라운 클리어런스를 제공하는 Down tube design. 모든 포크가 장착가능한 것은 아니니 장착시 확인을 하셔야 합니다.
• Offset: 51mm offset 권장.

BUILDING COMPONENTS - MASON ISO 2 X SRAM

• FRAME: Custom-formed Progressive-butted Dedacciai / Reynolds Steel tubeset
• FORK: 'HotShoe' Carbon fork or Rockshox SID SL Ultimate Race Day
• HEADSET: Deda IN-5 Black or Chris King Dropset 2
• FRAMESET COLOR: Filter Yellow / Optic Green / Grigio Techno
• GROUPSET: SRAM GX T-TYPE EAGLE + RIVAL AXS / GX T-TYPE EAGLE + FORCE AXS / X0 T-TYPE EAGLE _ FORCE AXS / XX T-TYPE EAGLE + RED AXS / XXSL T-TYPE EAGLE + RED AXS
• CRANKSET: SRAM GX EAGLE 32T / GX EAGLE 90 32T / X0 EAGLE 32T / XX EAGLE 32T / XXSL 34T
• WHEELSET: HUNT and DT Swiss wheelsets in 700c or 650b. Other options available on request.
• TIRE: 650B and 700C tyres from WTB, Rene Herse, Vittoria and Schwalbe.
• TUBELESS SETUP: No or Yes.
• BRAKE LEVER SETUP: US, EU, Rest of the World (Right - Rear / Left - Front) / UK, JP, AUS, NZ (Right - Front / Left - Rear)
• BOTTOM BRACKET: Hope T47 SRAM or ChrisKing Threadfit T47 24X
• HANDLEBAR: VentrueMax WCS, VentureMax WCS Carbon, BEACON WCS / Width 40, 42, 44, 46mm. Other brands available on request.
• STEM: Ritchey Trail WCS / Length 35~100mm.
• SADDLE: Fizik Terra Argo X5 or X3 / Temp Argo X5 or X3 / Vento Argo Adaptive R3
• SEATPOST: Mason Penta Carbon / PNW Loam Dropper + Loam Lever / Rockshox Reverb AXS + Controller
• MASON LUMINANCE UPGRADE OPTIONS: No or Yes / SuperNova Pro2
• RACK OPTIONS: No or Yes / Condensor Rack
• CHAINSTAY PROTECTION OPIONS: No or Yes / Element Chainstay Protector
• BIKE WEIGHT: 11.5kg (50cm).

GEOMETRY AND SIZING

• GEOMETRY: https://masoncycles.cc/products/insearchof-frameset
• SIZING: 라이더의 신장을 기반으로한 사이즈 가이드라인일 뿐이며 바이크 피팅의 시작점일 뿐이며 라이딩 방식이나 메이슨 바이크 모델에 따라서 맞는 사이즈를 선택하는데 추가적인 많은 요소들이 있습니다. 원하시는 경우 전문적인 피팅 서비스를 통해 원하시는 사이즈를 선택하는 것을 추천드립니다.

THE PARTS with INSEARCHOF FRAMESET:

• Deda Headset. Expander-bung + Top-cap for fork. M∆SON Macro clamp. Marine Grade Stainless bolts x 12. Foam tubing for internal routing. Di2 rubber grommet 45º x 3. Rubber blanking grommet x 2.
• Mason Shutter load-bearing fender: Mason x Voile straps과 최적인 짐받이겸 머드가드 제공
• MultiPort Inserts: Full Outer x 4. Split Outer x 2. Di2 x 2. Blank x 2.
• Axles: Flat-Mount/Thru-Axle standard을 지원하는 전륜과 후륜 Mason 'SwitchLever'  Thru-Axles 제공

보증기간: FRAMESET (5년 / 첫 구매자) / PAINTING (2년)

원산지: DESIGNED IN UK AND MADE IN ITALY

INSEARCHOF (ISO) FRAMESET - ULTIMATE ADVENTURE / DEDA ZERO STEEL & REYNOLDS 853 STEEL /  29X2.4”(60mm) & 27.5X2.8”(71mm) / BOOST SPACING

"This new bike is still firmly in the #FastFar, #ContinentCrushing vein but a progressive new frame and fork design allow it to use 29 x 2.4” or 650b x 2.8 wheels, meaning steeper, rougher and deeper terrain are well within its capabilities. Multiple mounting points, a bespoke load-bearing mudguard, specific rack systems, 160/180 flat-mount braking and 100mm suspension-ready geometry mean that the InSearchOf, once again, does not shy away from the ‘Progressive’ word in our title." CyclingWeekly 10/10

FEATURES

• 29" or 27.5" wheels – max tyre width: 29 x 2.6” or 27.5 x 2.9”
• NEW CNC dropouts, designed by MASON and engineered in Italy. Universal Derailleur Hanger, with compatibility for direct-mount mechs
• 'Shutter' mudguard included: our own unique load-bearing design, holding up to 2kg: designed to provide extra load space and protection from debris
• Updated HotShoe2 carbon fork, designed by MASON. Featuring ‘Tri-Mount’ crown system for use with our Shutter mudguard. Internally routed for dynamo light systems and updated eyelet positions for racks and mudguards
• Shimano groupset, combining mountain bike features with drop-bar format
• 160/180mm flat-mount braking system
• Wheelset options include HUNT and DT Swiss, with carbon, aluminium, dynamo and non-dynamo choices
• Fully ready for performance dynamo lighting. Select 'Mason Luminance Upgrade'
• Blend of custom-formed progressive-butted Dedacciai ‘Zero’ and Reynolds 853 steel tubing
• Wide range of eyelets in multiple locations, for maximum luggage and fluid carrying capacity. NEW top tube eyelets.

ESSENTIAL DIMENSIONS

• Rotor Size: The fork can take Ø160mm or Ø180mm rotor [using standard 140/160 adaptor]. Mason Cycles is the first to develop the 160/180 Flat-Mount standard for a rigid fork. Ø160mm is recommended at the rear using an appropriate flat-mount adapter.
• Caliper Type: This frameset is designed for Flat-Mount calipers. It's possible to fit Post-Mount calipers front and rear with the use of a Flat > Post-mount adapter. Please contact us if you would like guidance on correct components to use.
• Flat-Mount Mounting Bolt Lengths: FRONT - 15mm. REAR - SRAM: 17mm. Shimano: 23mm. Bolt lengths for mounting Flat-Mount brake calipers to our frames vary because of the different dropout designs and materials used across our range.
• Wheel Spacing: The InSearchOf is designed around the 'BOOST' standard. The front hub is 10mm wider and the rear is 6mm wider than 100/142mm standard road thru-axle spec., allowing wider wheels and high volume tyres with larger clearances front and rear. The wider hub flanges result in a hugely stiffer wheel, giving enhanced bike handling and shorter/wider stays allow progressive geometry, whilst a wider rear hub helps give a greater choice of chainrings.
• SwitchLever: Ø15mm Thru-axle Front / Ø12mm Thru-axle rear.
• Front axle spacing: 110mm.
• Rear axle spacing: 148mm.
• Axle length/pitch: Front - 134mm/1.5TP/14TL. Rear - Pre Jan '25: 172mm/1.5TP/17TL. Post Jan '25: 178mm/1.0TP/14.5TL [udh frame].
• Max tyre size: 29" x 2.5" | 27.5" x 2.8".
• Min tyre size: 29" x 2.0" | 27.5" x 2.8".
• Seatpost: 31.6mm.
• Dropper-post: 31.6mm / Stealth-routed.
• Seat Clamp: 34.1mm
• Front Mech: InSearchOf is 1x specific. Drop bar shifters don't shift an MTB mech correctly and there are fitting limitations with the bolt and port positioning on the seat tube.
• BB Type: Post Jan '25: T47 x 73mm shell width. Use 'shielded' BB axle. Pre Jan '25: 73mm shell width. BSA threaded.
• 1X Cranksets: Use 3mm offset chainring for 52mm chainline. Use 0mm offset chainring for 55mm chainline. Shimano - Use BOOST spacing crankset.
• Max Single Ring: 34T with 52mm chainline. 36T with 55mm chainline.
• ISO 2.0 onwards [Jan 2025]: UDH ‘Universal derailleur Hanger’.
• Fork Dimensions: Crown height - 483mm [Equal to a typical 100mm travel XC suspension fork with 20% sag]. Offset - 50mm.
• Headset type: Integrated, 41.8Ø upper, 51.8Ø lower, for taper head tube. Angular Contact Bearings. The head-tube seat angle is 45º.
• Stack-washer maximum: 40mm below stem is max. recommended for carbon steerer. Warranty is void above this dimension.
• 'Shutter' Fender: Max load capacity 2kg. Recommended straps MasonxVoile 20".
• TriMount: Max load capacity 2kg. Use 16mm x 5mm bolts.
• Mounting Bolt Torque: 4Nm.
• Accessory Cages: Max load capacity 3kg per side. Follow manufacturers installation and and loading instructions.
• Suspention Fork: The InSearchOf frame was designed and tested for use with a typical XC Suspension fork of 100mm, with up to a 506mm crown height. Check fork manufacturers data to ensure chosen fork falls within this dimension, longer forks will void warranty.
• Crown Clearance: Down tube design gives suspension fork crown clearance for most modern forks. We cannot guarantee ALL forks will clear, so please check when installing.
• Offset: 51mm offset is recommended.

BUILDING COMPONENTS - MASON ISO 2 X SRAM

• FRAME: Custom-formed Progressive-butted Dedacciai / Reynolds Steel tubeset
• FORK: 'HotShoe' Carbon fork or Rockshox SID SL Ultimate Race Day
• HEADSET: Deda IN-5 Black or Chris King Dropset 2
• FRAMESET COLOR: Filter Yellow / Optic Green / Grigio Techno
• GROUPSET: SRAM GX T-TYPE EAGLE + RIVAL AXS / GX T-TYPE EAGLE + FORCE AXS / X0 T-TYPE EAGLE _ FORCE AXS / XX T-TYPE EAGLE + RED AXS / XXSL T-TYPE EAGLE + RED AXS
• CRANKSET: SRAM GX EAGLE 32T / GX EAGLE 90 32T / X0 EAGLE 32T / XX EAGLE 32T / XXSL 34T
• WHEELSET: HUNT and DT Swiss wheelsets in 700c or 650b. Other options available on request.
• TIRE: 650B and 700C tyres from WTB, Rene Herse, Vittoria and Schwalbe.
• TUBELESS SETUP: No or Yes.
• BRAKE LEVER SETUP: US, EU, Rest of the World (Right - Rear / Left - Front) / UK, JP, AUS, NZ (Right - Front / Left - Rear)
• BOTTOM BRACKET: Hope T47 SRAM or ChrisKing Threadfit T47 24X
• HANDLEBAR: VentrueMax WCS, VentureMax WCS Carbon, BEACON WCS / Width 40, 42, 44, 46mm. Other brands available on request.
• STEM: Ritchey Trail WCS / Length 35~100mm.
• SADDLE: Fizik Terra Argo X5 or X3 / Temp Argo X5 or X3 / Vento Argo Adaptive R3
• SEATPOST: Mason Penta Carbon / PNW Loam Dropper + Loam Lever / Rockshox Reverb AXS + Controller
• MASON LUMINANCE UPGRADE OPTIONS: No or Yes / SuperNova Pro2
• RACK OPTIONS: No or Yes / Condensor Rack
• CHAINSTAY PROTECTION OPIONS: No or Yes / Element Chainstay Protector
• BIKE WEIGHT: 11.5kg (50cm).

GEOMETRY AND SIZING

• GEOMETRY: https://masoncycles.cc/products/insearchof-frameset
• SIZING: This page gives you some guidelines based on rider height, but these are only a starting point for a proper bike fitting. There are of course many other factors to consider when choosing the right size for you and sizing advice will vary depending on your choice of model from the Mason range and the way that you intend to ride it. We're always here to help of course and would always recommend a professional bike fitting and visiting us for a ride on the Mason Cycles riverside gravel/country lanes test-loop if you can. There is further advice, based on specific models, below the height chart.

THE PARTS with INSEARCHOF FRAMESET:

• Deda Headset. Expander-bung + Top-cap for fork. M∆SON Macro clamp. Marine Grade Stainless bolts x 12. Foam tubing for internal routing. Di2 rubber grommet 45º x 3. Rubber blanking grommet x 2.
• Mason Shutter load-bearing fender: Unique to Mason. The Shutter fender fits to our HotShoe fork and carries up to 2kg whilst protecting you and the bike from dirt, water and debris. Works perfectly with our Mason x Voile straps.
• MultiPort Inserts: Full Outer x 4. Split Outer x 2. Di2 x 2. Blank x 2.
• Axles: All our framesets now feature the latest Flat-Mount/Thru-Axle standard. Both Thru-Axles are provided with the frameset. A Mason 'SwitchLever' axle is used up front and then various bolt-thru or F-Stop axles are used at the rear.

WARRANTY: FRAMESET (5 YEARS) / PAINTING (2 YEARS)

DESIGNED IN UK AND MADE IN ITALY
